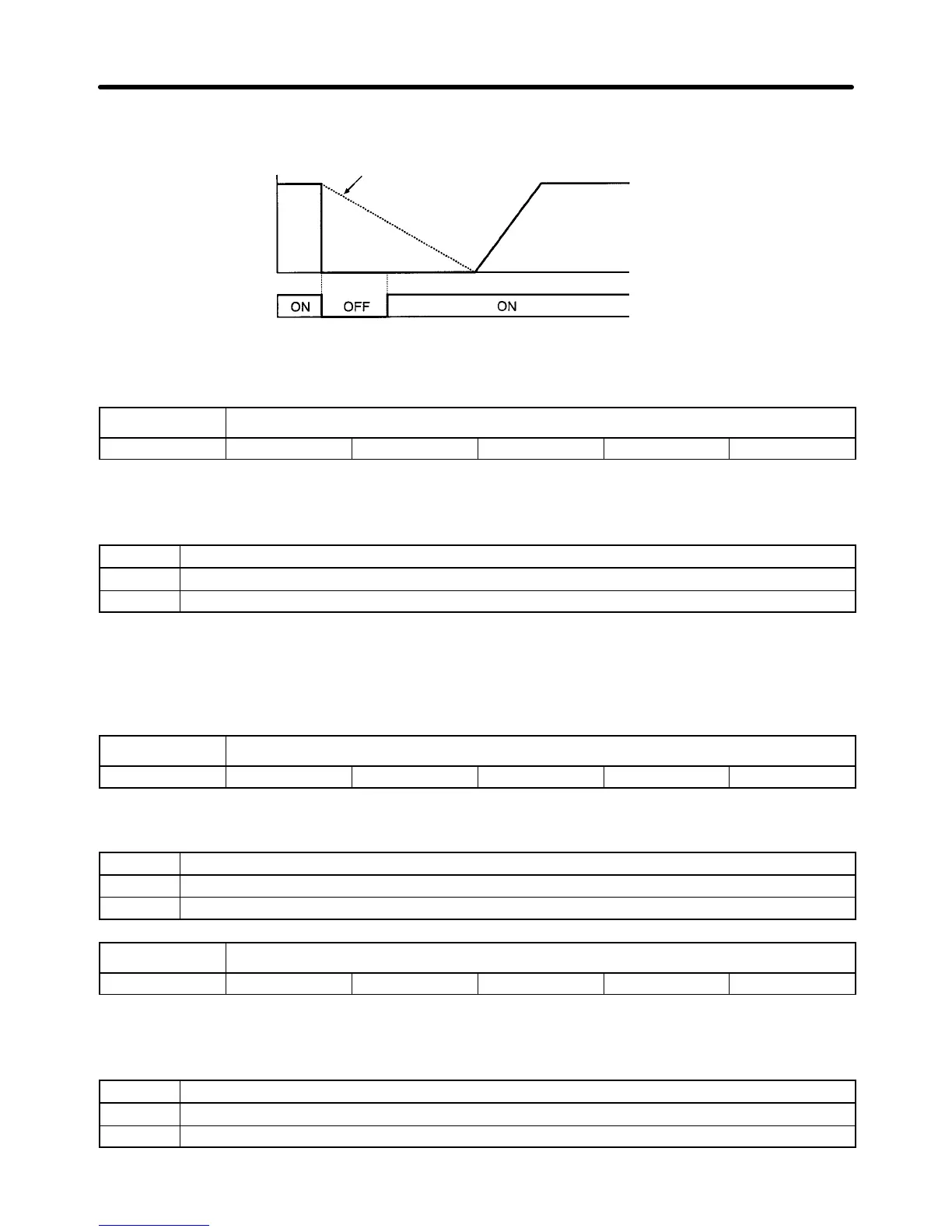

D Free Running Stop 2 with Timer (n004 = 3)
Deceleration rate determined by deceleration
time 1 set with n020 or deceleration time 2
set with n022.
Output frequency
Run command
Set the deceleration time
to a period longer than
the time required by the
motor to coast to stop.
Note The
run command will not be accepted during the minimum baseblock time
set with n053 if the
time required by the motor to coast to stop is shorter than the minimum baseblock time.
n005 Forward/Reverse Rotation Selection
Setting range 0, 1 Unit --- Default setting 0
• Set
the rotation direction of the motor so that the motor will rotate
in the set direction when the forward
rotation command is input.
Set Values
Set value Description
0 The motor seen from the load side rotates counterclockwise.
1 The motor seen from the load side rotates clockwise.
Note If
parameter initialization is performed by
setting n001 to 6 or 7, n005 will not be initialized. (It will
be initialized, however, if a CPF4 error is generated.)
• The
motor is deemed to be rotating forward if the motor seen
from the load side is rotating counter
-
clockwise
unless the forward rotation direction of the motor defined by the manufacturer is
opposite.
n006 Reverse Rotation-inhibit Selection
Setting range 0, 1 Unit --- Default setting 0
• Select whether reverse rotation will be available or not.
Set Values
Set value Description
0 The motor can rotate in reverse.
1 The motor cannot rotate in reverse.
n007 Operation Direction Selection Key Permit/Inhibit
Setting range 0, 1 Unit --- Default setting 1
• Select
with n007 to permit the Operation Mode Selection Key to function or inhibit
the Operation Mode
Selection Key from functioning.
Set Values
Set value Description
0 Operation direction selection key inhibit
1 Operation direction selection key permit
Preparing for Operation Chapter 3
