3-5
3-2-2 Summary
H Data Display

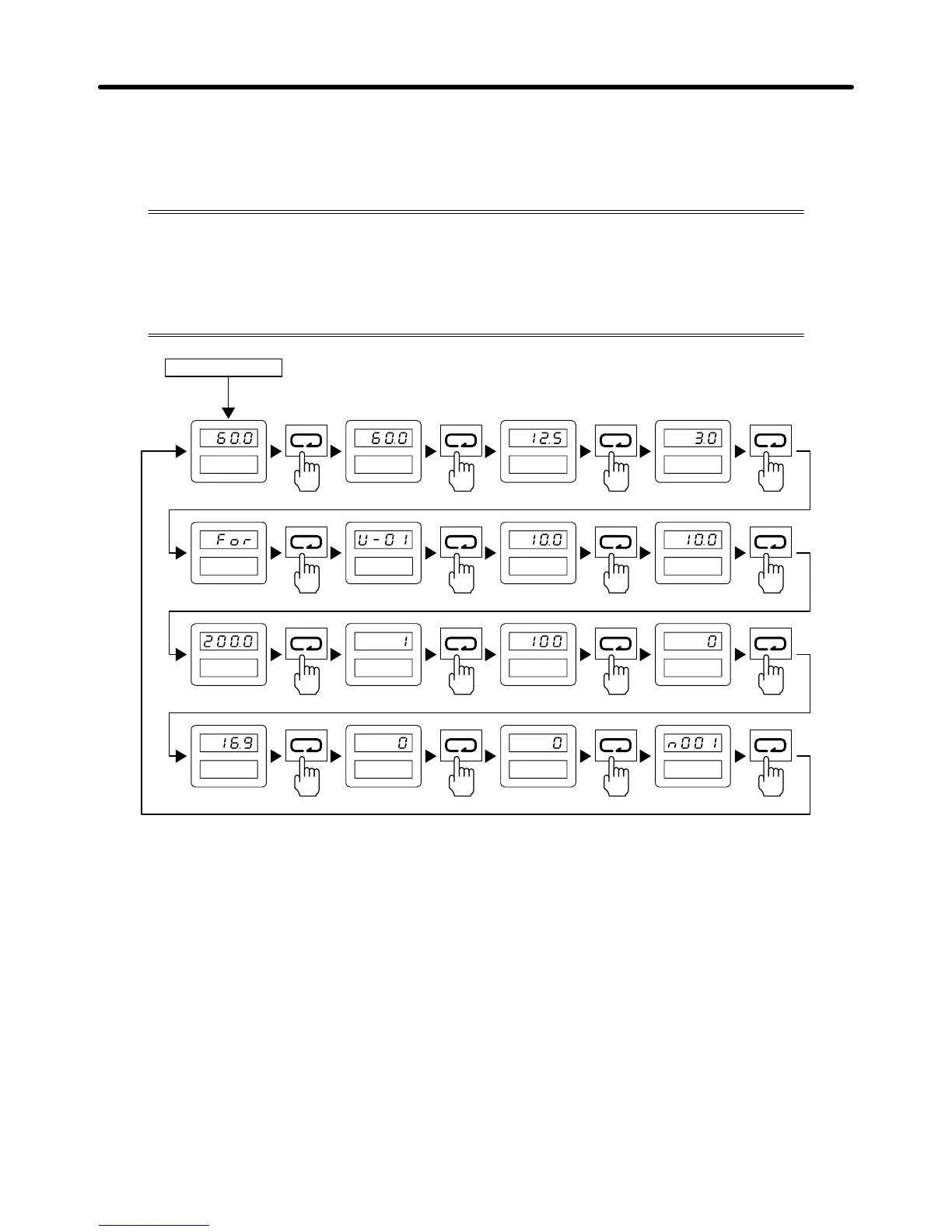

Press the Mode Key to select the item displayed on the data display.
The items on the first two lines of the monitor item indicators can be set or monitored
while the Inverter is running.
All
the items of the monitor item indicators can be set or monitored while the Inverter is
not running.
Speed
setting/Monitor
Output frequency
monitor
Output current monitor
Output power monitor
Operator forward/
reverse selection
Monitor selection
Acceleration time
setting
Deceleration time
setting
Motor rated
voltage setting
V/f pattern selection
Frequency reference
gain
Frequency reference
bias
Motor rated
current setting
PID control selection
Energy-saving control
selection
Constant setting mode
Power supply ON
Fref Fout Iout kWout
F/R Montr Accel Decel
Vmtr V/F Fgain Fbias
FLA PID kWsav PRGM
Note The following items can be set or monitored with the monitor item indicators.
Preparing for Operation Chapter 3
