5-7

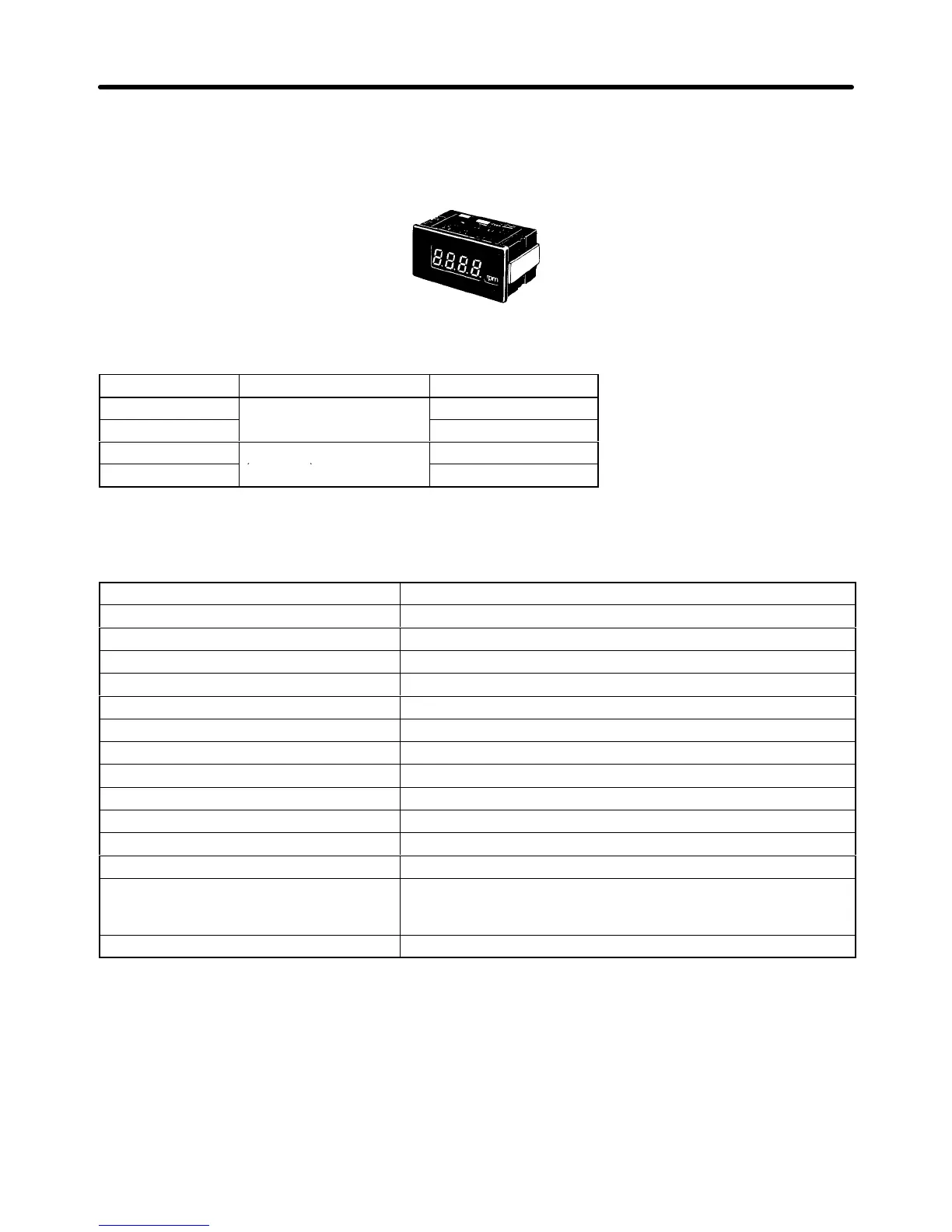

5-2-3 K3TJ-V11j Scaling Meter
Connect
the multi-function analog output of the Inverter to the Scaling Meter so that the number of
rota
-
tions of the motor and the speed of the mechanical system can be monitored in actual units.
D Models
Model Control power supply Display
K3TJ-V111R
100 to 200 VAC
Red indicators
K3TJ-V111G Green indicators
K3TJ-V116R
24 VDC with insulation
Red indicators
K3TJ-V116G
(see note)
Green indicators
Note The power supply circuit and input circuit are insulated from each other.
D Standard Specifications
Sampling cycle 2 times/s
Display refresh cycle 2 times/s
Measured value averaging method Simple/Moving average
No. of averaging times 1, 2, 4, or 8 times
Maximum no. of display digits 4 (–1999 to 9999)
Display 14.2-mm-high 7-segment LEDs
Decimal point display Function selector or Up and Down Keys
Scaling method Function selector or Up and Down Keys
Scaling range –1999 to 9999
Zero limit range 0 to 99 digits
Over range Flashing
Zero suppress Possible
External control PV hold (with rear terminals shorted)
Enclosure ratings (conforming to IEC) Front panel: IP51 (see note)
Casing: IP20
Terminals: IP00
Memory protection Non-volatile memory
Note IP51
is ensured if the
K32-L49SC Drip-proof Cover is attached to the front panel, otherwise IP50
is ensured.
Specifications Chapter 5
