5-8

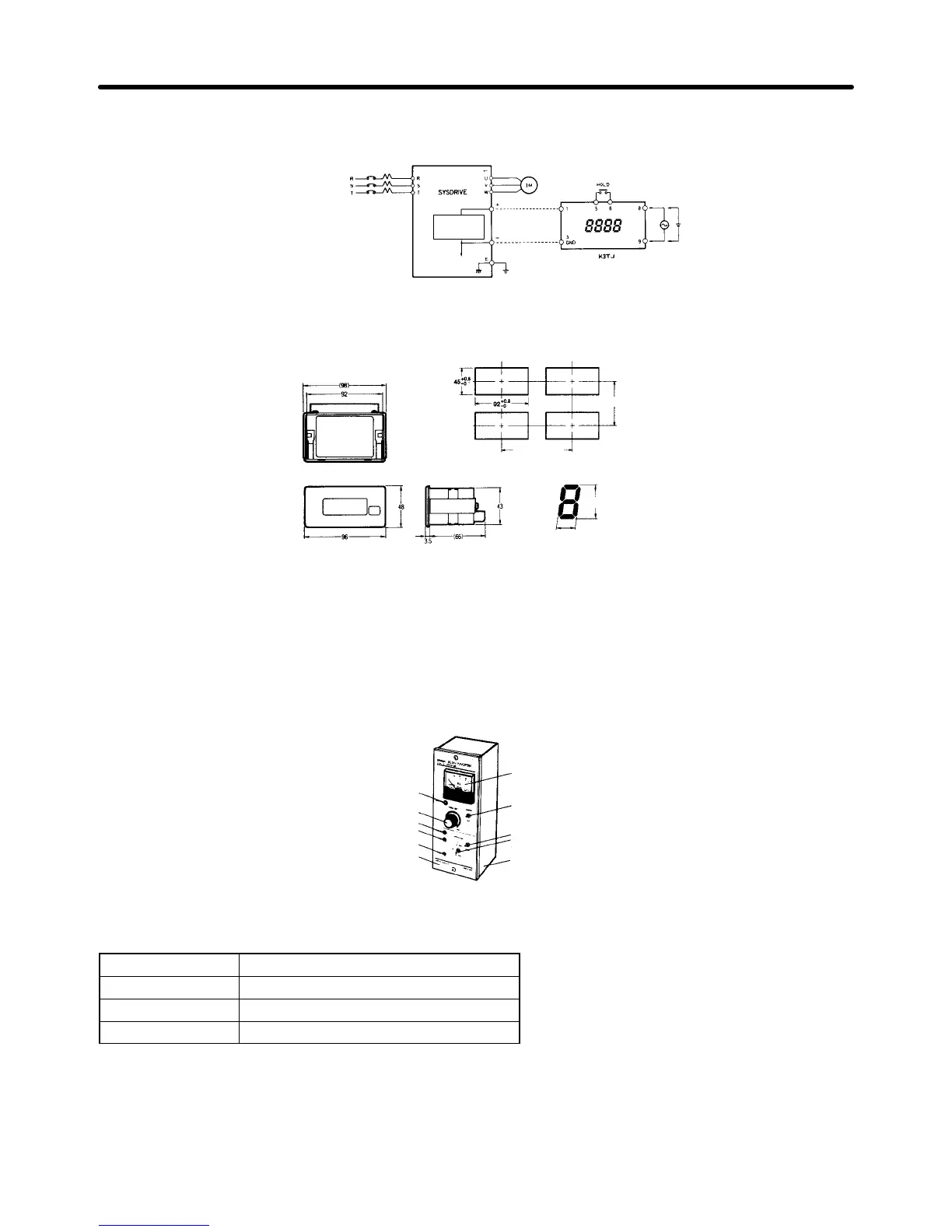

D Wiring Example
Power supply
three-phase
Power distribution
panel
Internal
circuit
Analog
monitor
Analog output
0 to +10 VDC
D External Dimensions
Recommended
mounting
dimensions
75
min.
120 min.
Weight:
200 g
Display LED size
14.2
mm
7.8 mm
5-2-4 3G3IV-PJVOP96j Analog Operator (Standard Model with
Steel Casing)
The
3G3IV
-PJVOP96j
Analog Operator
makes it possible to control the operation of the Inverter
, in
-
cluding the output frequency, with analog commands at a maximum distance of 50 m.
Frequency
meter
adjustor
Frequency selector
Power indicator
Operation indicator
Error indicator
Front panel
Frequency meter
Error reset
Frequency reference
selector
Forward/Stop/Reverse
selector
Casing
D Standard Models
Model Frequency meter specification
3G3IV-PJVOP961 DCF-6A: 75 Hz, 1 mA, 3 V
3G3IV-PJVOP962 DCF-6A: 150 Hz, 1 mA, 3 V
3G3IV-PJVOP963 DCF-6A: 220 Hz, 1 mA, 3 V
Specifications Chapter 5
