Omron SYSDRIVE 3G3HV SERIES - Rated Input Voltage of Motor

3-60

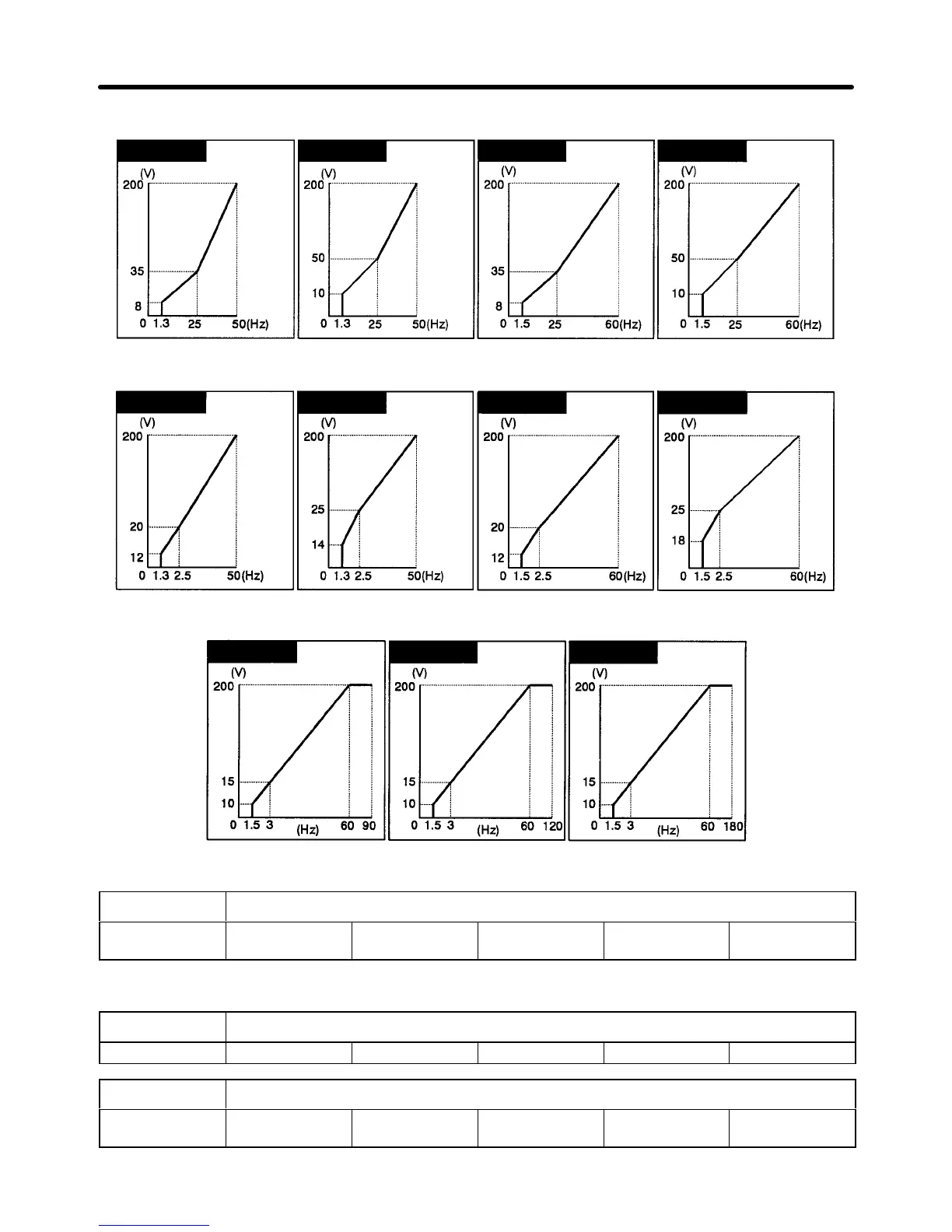

D Reduced Torque Characteristics (Set Value: 4 to 7)
Set value 4 Set value 5 Set value 6 Set value 7
(5) (5)
(6) (6)
D High Starting Torque Characteristics (Set Value: 8 to b)
Set value 8 Set value 9 Set value A Set value b
(15)
(7)
(15)
(7)
(20)
(9)
(20)
(11)
D Constant Power Operation Characteristics (Set Value: C to E)
Set value C Set value d Set value E
(12)
(6)
(12)
(6)
(12)
(6)
Note Figures in parentheses apply to 55-kW or higher Inverters.
n011 Rated Input Voltage of Motor
Setting range 150.0 to 255.0
(510.0)
Unit V Default setting 200.0 (400.0)
• Set the rated input voltage of the motor according to the rated input voltage of the motor before setting
the V/f pattern. This set value will be used to calculate the voltage axis of the V/f pattern.
n012 Maximum Frequency (FMAX)
Setting range 50.0 to 400.0 Unit Hz Default setting 60.0
n013 Maximum Voltage (VMAX)
Setting range 0.1 to 255.0
(510.0)
Unit V Default setting 200.0 (400.0)
Preparing for Operation Chapter 3
