3-38
2. Increase the proportional gain with n086 within a range causing no vibration.
3. Increase the integral time with n087 within a range causing no vibration.
4. Increase the derivative time with n088 within a range causing no vibration.

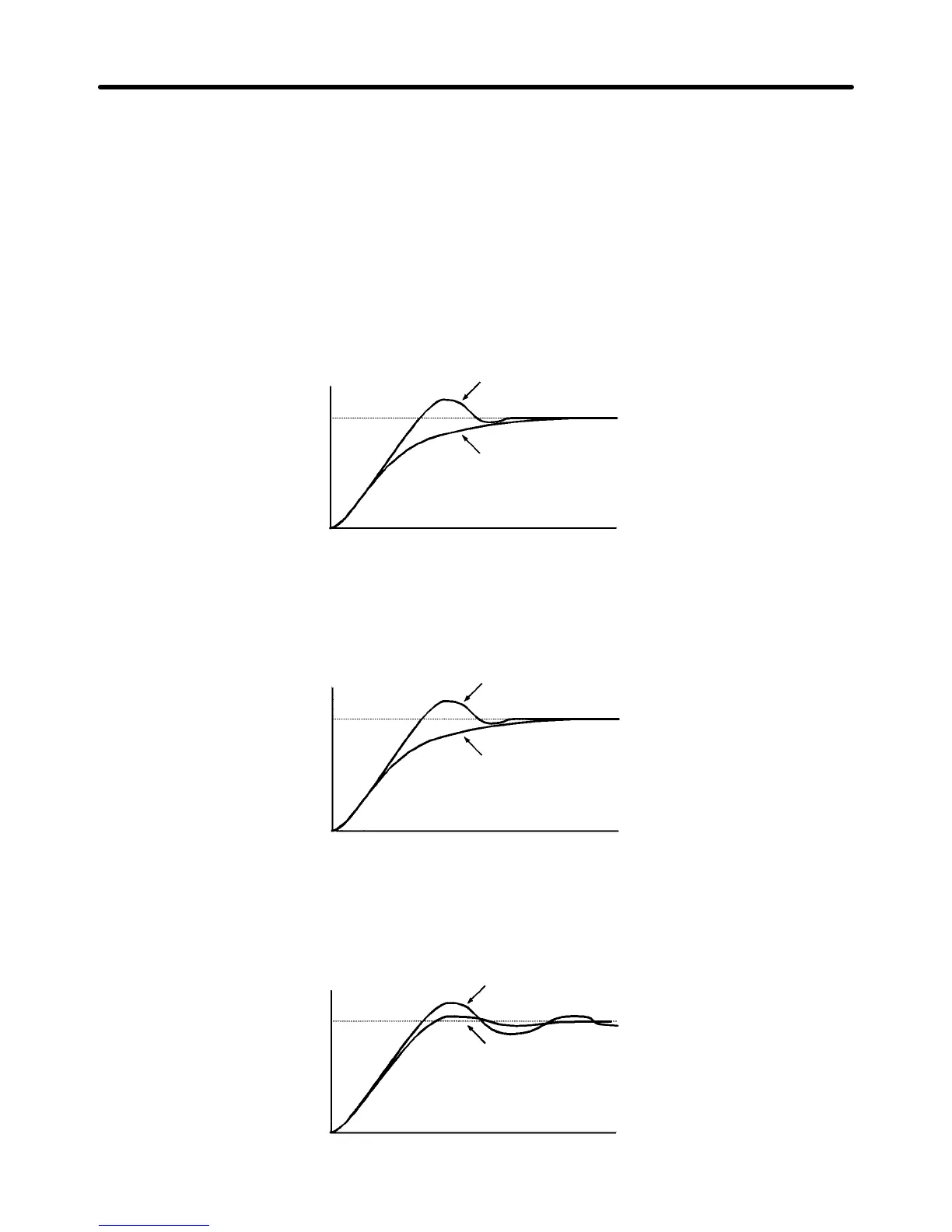

H PID Fine Tuning
Refer to the following to tune in PID parameters exactly.
D Suppression of Overshooting
Set
the derivative time to a smaller value and the integral time to a larger value if overshooting results.
Response
Before fine tuning
After fine tuning
Time
D Prompt Control
Set
the integral time to a smaller value and the derivative time to a large value for the prompt control of
overshooting.
Response
Before
fine tuning
After fine tuning
Time
D Suppression of Long-cycle Vibration
Vibration with a wavelength longer than the integral time results from excessive integral control. The
vibration can be suppressed by setting the integral time to a larger value.
Response
Before
fine tuning
After fine tuning
Time
Preparing for Operation Chapter 3
