2-12
H Mounting the Front Cover
• Mount
the front cover to the Inverter
by taking in reverse order to the steps to remove the front cover
after wiring the terminals.
• Do not mount the front cover with the Digital Operator attached to the front cover, otherwise Digital
Operator may malfunction due to imperfect contact.
• Insert
the tab of the
upper part of the front cover into the groove of the Inverter and press the lower part
of the front cover onto the Inverter until the front cover snaps shut.

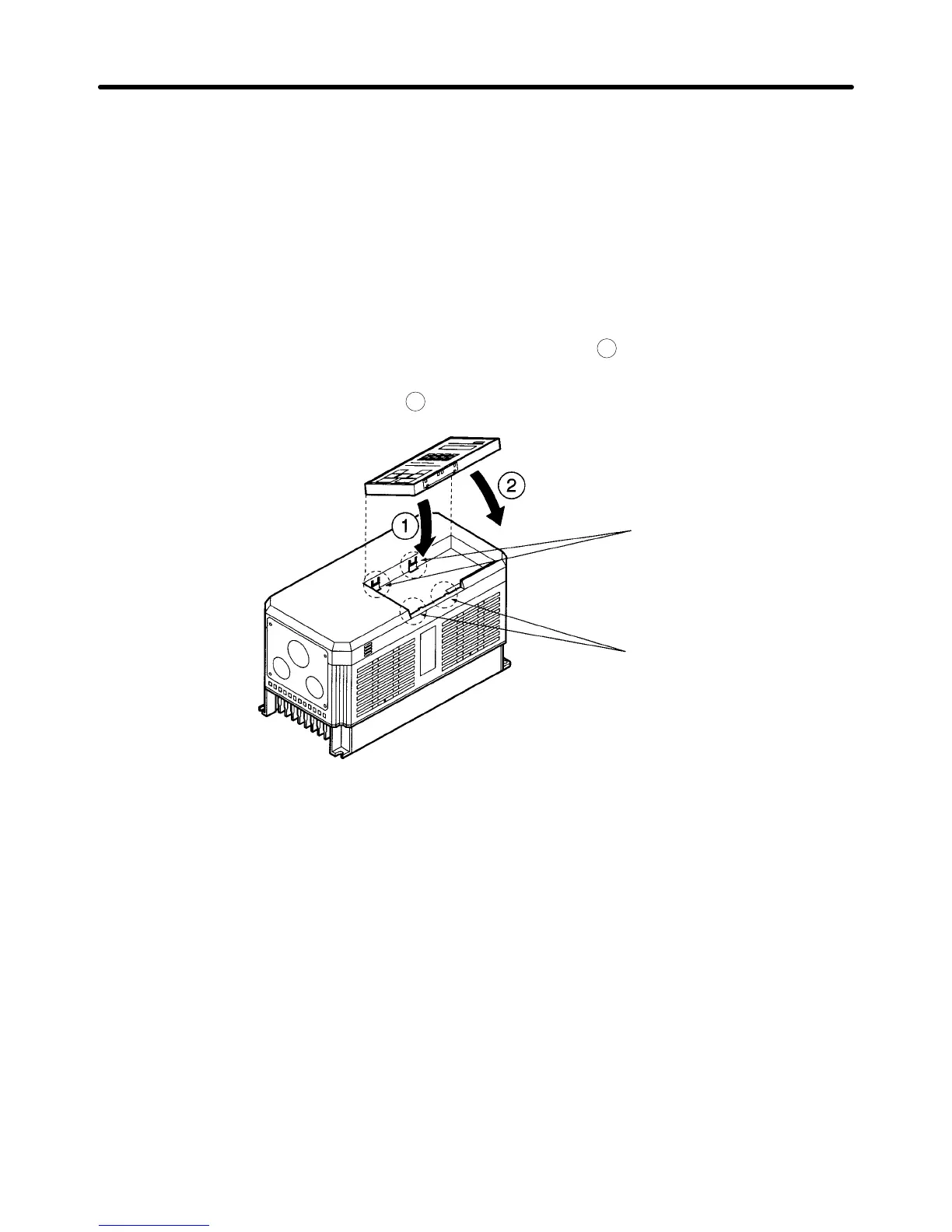

H Attaching the Digital Operator
• Hook
the Digital Operator on clicks A of the front cover in the arrow
1
direction as shown
in the follow
-
ing illustration.
• Press the Digital Operator in the arrow
2
direction until it snaps shut with clicks B.
Clicks A
Clicks B
Note Do
not remove or attach the
Digital Operator or mount or remove the front cover using methods
other
than those mentioned above, otherwise the Inverter may malfunction due to imperfect con
-
tact or break.
H Removing the Front Cover of the Inverter with 18.5-kW Output or More
• The
front cover can be removed without removing the Digital Operator from the Inverter provided that
the Inverter is a model with an output of 18.5 kW or more.
• Loosen
the four screws of the front cover and move the front cover slightly upwards to remove the front
cover.
Installation Chapter 2
