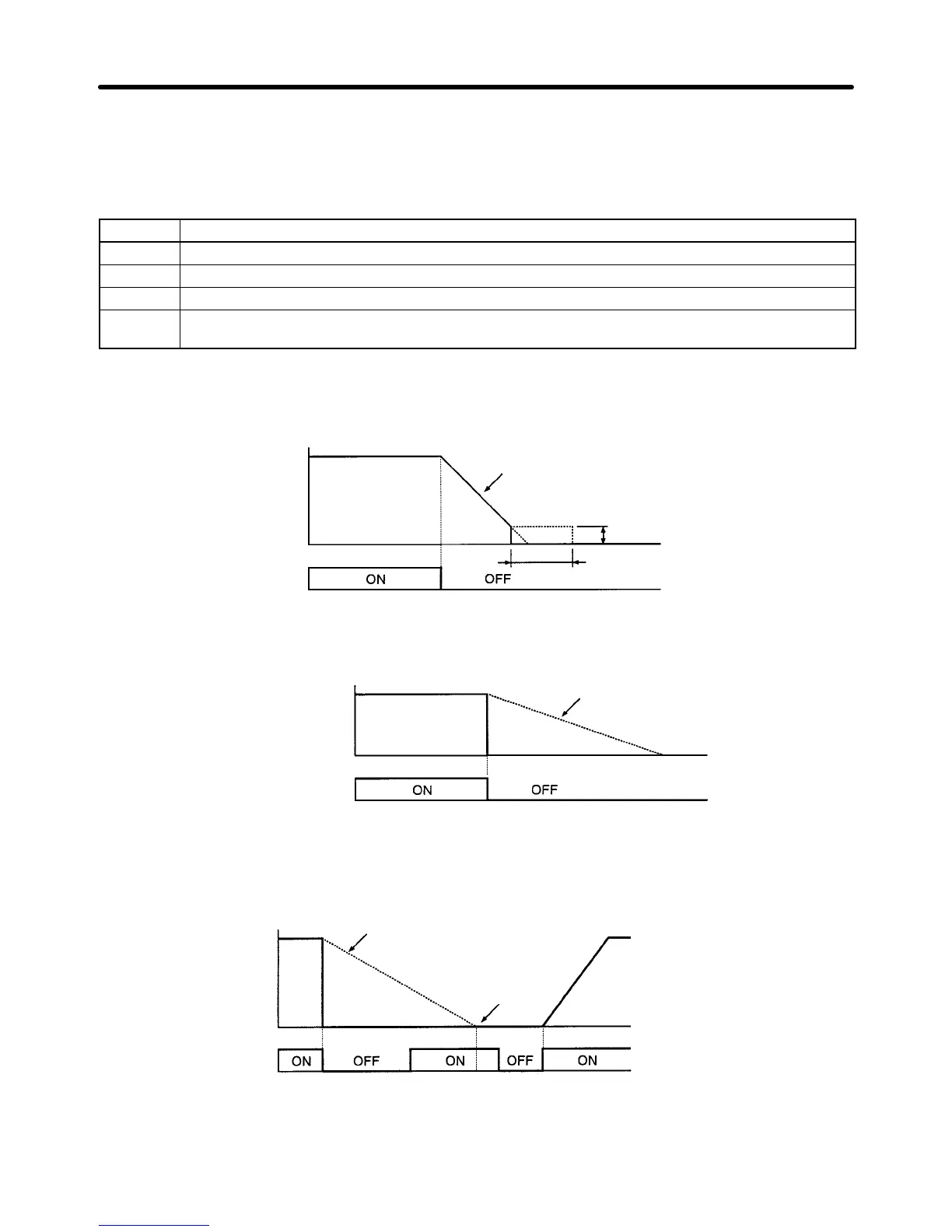

3-56
Set
n004 to the stop mode to be invoked when the ST
OP/RESET Key is pressed or when the run com
-
mand is OFF.
To inhibit the Inverter from performing the next operation until the motor stops, set n004 to 2 or 3.
Set Values
Set value Description
0 Deceleration stop
1 Free running stop
2 Free running stop 1 with timer. The run command during acceleration time 1 or 2 will be ignored.
3 Free running stop 2 with timer. The constant run command is valid. The motor will start running
after acceleration time 1 or 2 passes.
D Deceleration Stop (n004 = 0)
Output frequency
Deceleration rate determined by deceleration
time 1 set with n020 or deceleration time 2
set with n022.
Minimum output frequency
(n017)
Stop DC control time (n065)
Run command
D Free Running Stop (n004 = 1)
Output frequency
Run command
Motor free running
D Free Running Stop 1 with Timer (n004 = 2)
Output frequency
Run command
Deceleration rate determined by deceleration
time 1 set with n020 or deceleration time 2
set with n022.
Run command
ignored.
Set the deceleration time
to a period longer than
the time required by the
motor to coast to stop.
Note The
run command will not be accepted during the minimum baseblock time
set with n053 if the
time required by the motor to coast to stop is shorter than the minimum baseblock time.
