Omron SYSDRIVE 3G3HV SERIES User Manual

5-12

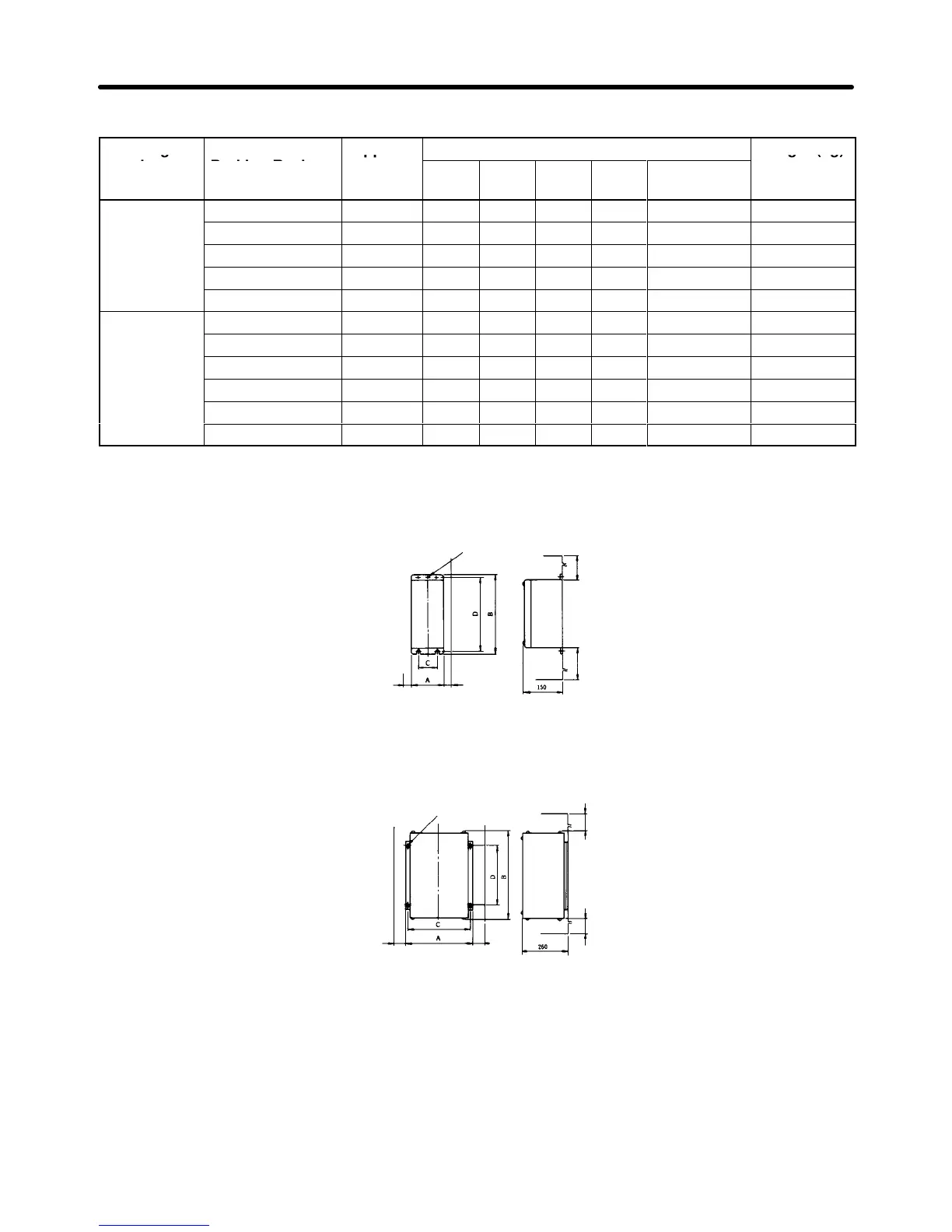

D External Dimensions
Voltage
l
3G3IV-PLKEBj
Bki R i
Appear-
Dimensions
Weight (kg)
g
class Braking Resistor
Unit
pp
ance
A B C D Mounting
screw
g(g)
200-V class
23P7 1 130 350 75 335 M5 x 4 5.0
25P5 1 250 350 200 335 M6 x 4 7.5
27P5 1 250 350 200 335 M6 x 4 8.5
2011 2 266 543 246 340 M8 x 4 10
2015 2 356 543 336 340 M8 x 4 15
400-V class
43P7 1 130 350 75 335 M5 x 4 5.0
45P5 1 250 350 200 335 M6 x 4 7.5
47P5 1 250 350 200 335 M6 x 4 8.5
4011 2 350 412 330 325 M6 x 4 16
4015 2 350 412 330 325 M6 x 4 18
4045 2 446 956 426 740 M8 x 4 33
Appearance 1
Mounting screw
150 min.150 min.
30 min.
30 min.
Appearance 2
Mounting screw
200 min.200 min.
30 min.
30 min.
5-2-8 3G3HV-PUZDABjAjMH DC Reactor
The DC Reactor suppresses the harmonics in the output current of the Inverter.
The
DC Reactor suppresses harmonics better than the AC Reactor . The DC Reactor can also be used
with the AC Reactor to suppress harmonics more effectively.
Specifications Chapter 5

Omron SYSDRIVE 3G3HV SERIES Specifications

General

Type	Inverter
Series	3G3HV
Cooling Method	Forced air cooling
Humidity	5 to 95% RH (non-condensing)
Control Method	Vector Control
Frequency Range	0.1 to 400 Hz
Communication Options	DeviceNet, Profibus
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Interface	RS-485
Ambient Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Altitude	Up to 1000 m above sea level
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Output Voltage	3-phase, 200-240V AC, 380-480V AC, 500-600V AC
