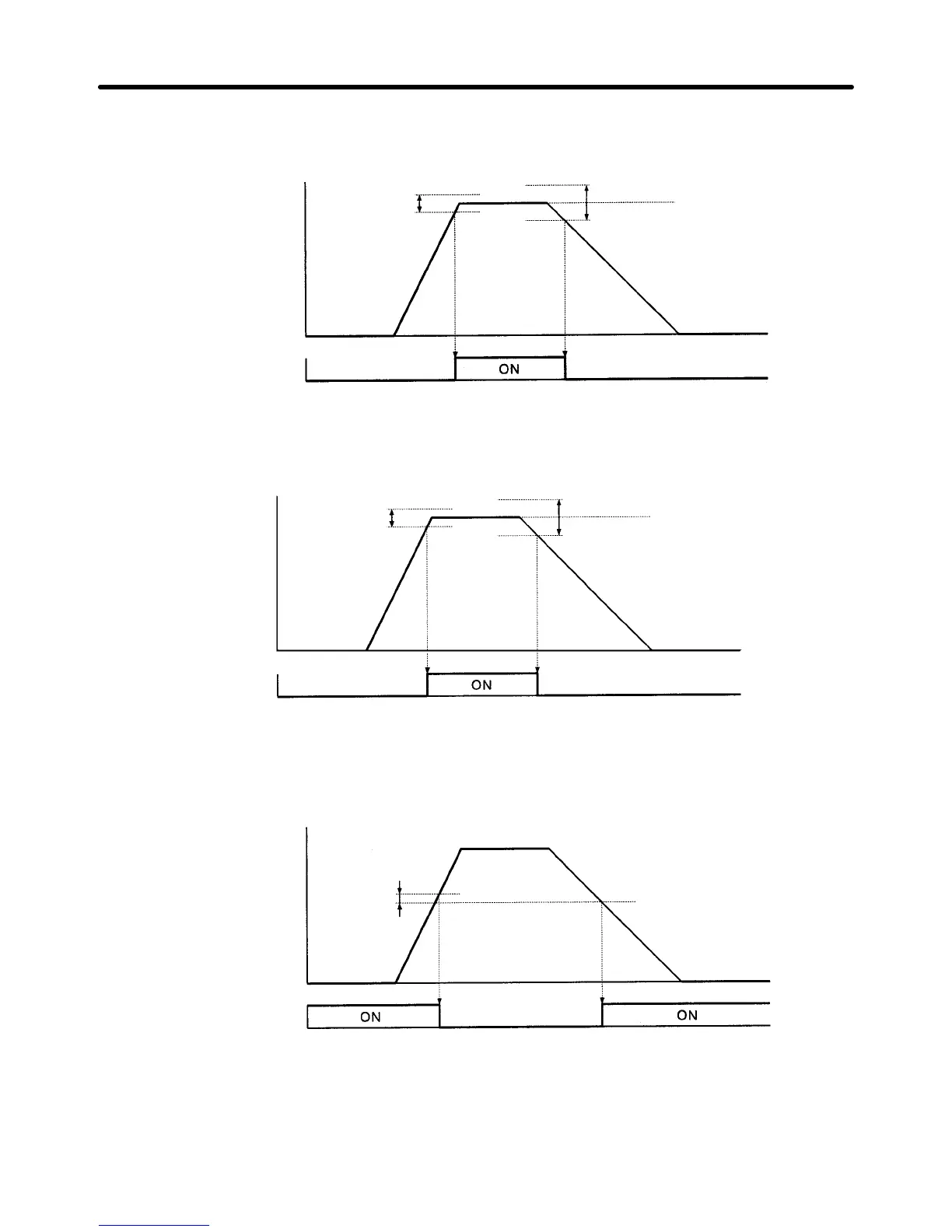

D Frequency Agreement (Set Value = 2)
Operation Example
Output frequency
Frequency
agreement signal
Sensing width
±2 Hz
Releasing width
±4 Hz
Frequency
reference
D Optional Frequency Agreement (Set Value = 3)
Operation Example
Output frequency
Sensing width
±2 Hz
Releasing width
±4 Hz
Optional frequency
agreement signal
Optional frequency
detection level (n073)
D Optional Frequency Detection: Output Frequency x Frequency Detection Level
(Set Value = 4)
Operation Example
Output frequency
Releasing
width ±2 Hz
Optional frequency
detection level (n073)
Frequency Detection
signal
