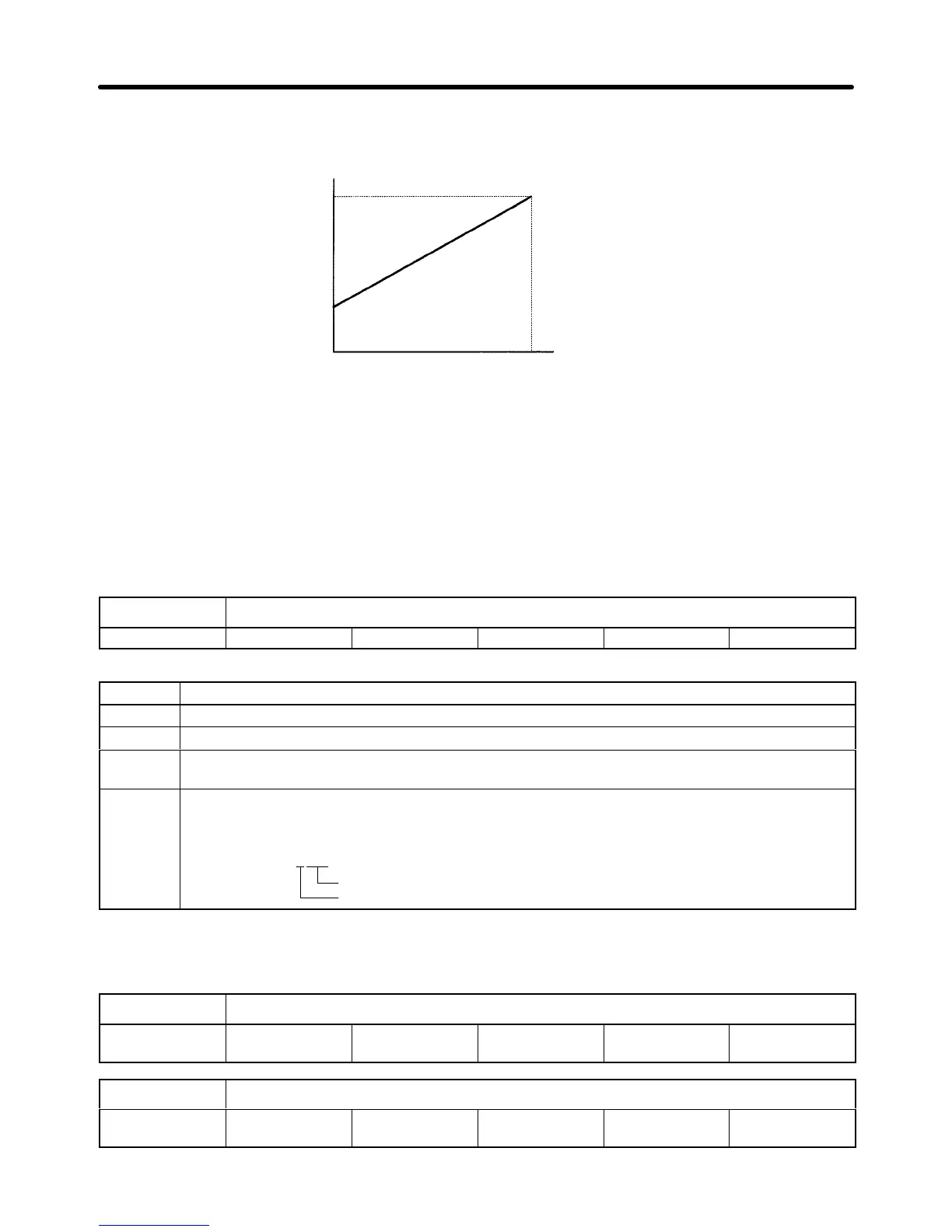

3-15
S n047: The frequency for 0-V or 4-mA input can be set in 1% units based on the maximum fre-
quency set with n012 as 100%.
Maximum frequency x
frequency reference
gain/100
Maximum frequency x
frequency reference
bias/100
Items in parentheses apply
when the frequency reference
is input with current.
Frequency
reference
0 V
(4 mA)
10 V
(20 mA)
Note The frequency reference gain and frequency reference bias can be set with
the GAIN indicator
and BIAS indicator.
H Frequency Reference Selection (n024 to n029) through Digital
Operator
S Frequency
references can be input through the Digital Operator by setting the unit of the
frequency
references
with n024 and the values of the frequency references with
n025 to n028. The inching
frequency reference must be set with n029 if an inching frequency is required.
n024 Unit of Frequency Reference
Setting range 0 to 3,999 Unit --- Default setting 0
Set Values
Set value Description
0 0.1-Hz units
1 0.1% units based on the maximum frequency as 100%.
2 to 39 r/min (r/min = 120 x frequency/n024
Set n024 to the number of poles of the motor.
40 to
3,999
Determine the display method of the maximum frequency set with n012. A frequency less
than the maximum frequency will be displayed proportionally.
Example: Set n024 to 1100 so that “10.0” will be displayed at the maximum frequency.
10.0 →1100
Value with no decimal point.
Decimal point position
S
Set frequency references 1 to 4 with n025 to n028. The multi-step speed command must be se
-
lected
to use frequency references 2 to 4. Refer to
page
3-17, Multi-function Input Selection (n035
to n039)
for details.
n025 Frequency Reference 1
Setting range 0 to maximum
frequency
Unit Set with n024 Default setting 6.0
n026 Frequency Reference 2
Setting range 0 to maximum
frequency
Unit Set with n024 Default setting 0.0
Preparing for Operation Chapter 3
