3-22
S An optional V/f pattern is available and n012 to n018 can be set if the V/f pattern is set to F.
n012 Maximum Frequency (FMAX)
Setting range 50.0 to 400.0 Unit Hz Default setting 60.0
n013 Maximum Voltage (VMAX)
Setting range 0.1 to 255.0
(510.0)
Unit V Default setting 200.0 (400.0)
n014 Maximum Voltage Frequency (FA)
Setting range 0.2 to 400.0 Unit Hz Default setting 60.0
n015 Intermediate Output Frequency (FB)
Setting range 0.1 to 399.9 Unit Hz Default setting 3.0
n016 Intermediate Output Frequency Voltage (VC)
Setting range 0.1 to 255.0
(510.0)
Unit V Default setting 15.0 (30.0)
(See note 2.)
n017 Minimum Output Frequency (FMIN)
Setting range 0.1 to 10.0 Unit Hz Default setting 1.5
n018 Minimum Output Frequency Voltage (VMIN)
Setting range 0.1 to 50.0
(100.0)
Unit V Default setting 10.0 (20.0)
(See note 2.)
Note 1. Figures in parentheses apply to the 400-V Inverter.
Note 2. The default settings for 55-kW or higher Inverters are as follows:
200-V 55-kW or higher Inverters: n016 = 12.0 V, n018 = 6.0 V
400-V 55-kW or higher Inverters: n016 = 24.0 V, n018 = 12.0 V

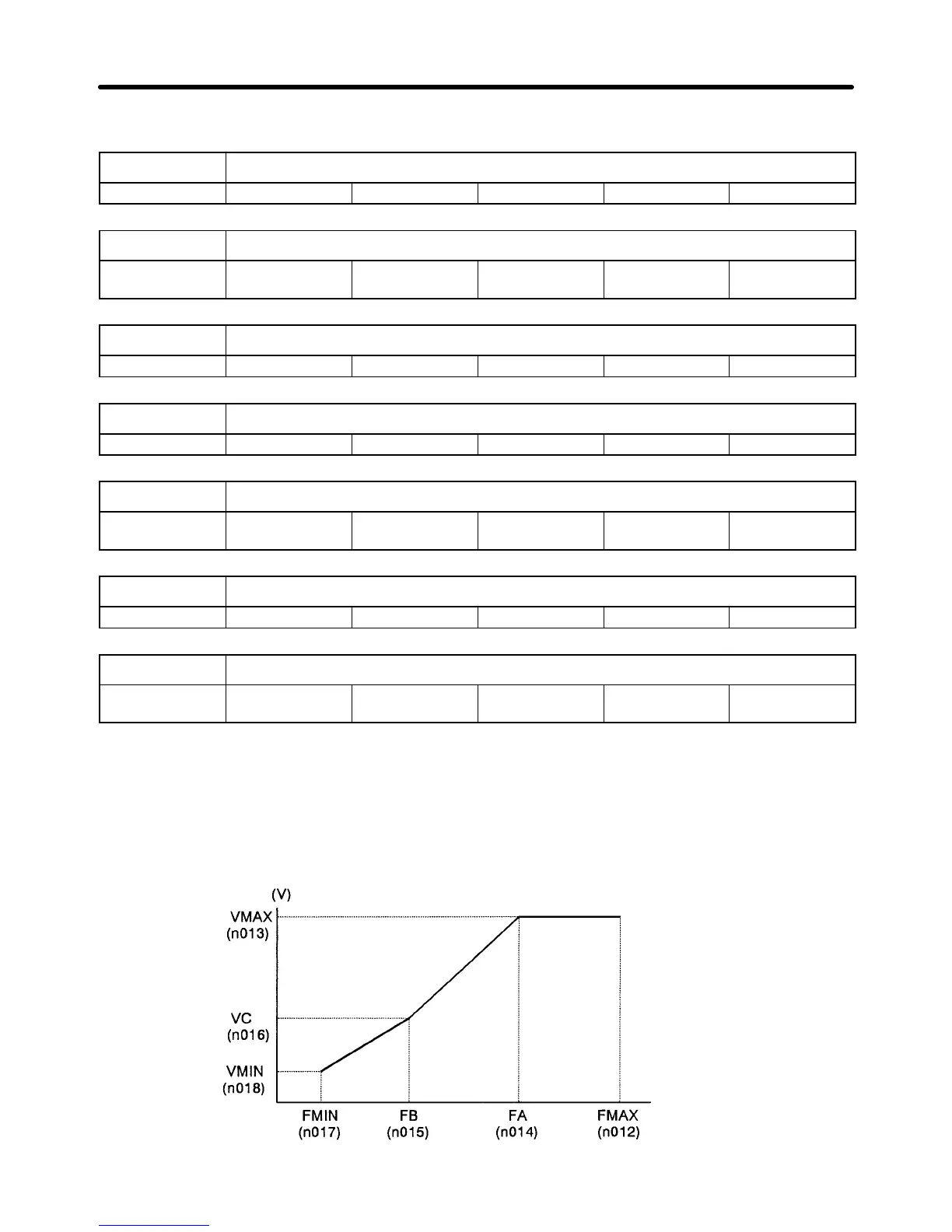

Optional V/f Pattern in Detail
Voltage
Frequency
(Hz)
Preparing for Operation Chapter 3
