Omron SYSDRIVE 3G3HV SERIES User Manual

3-85
n064 DC Braking Current
Setting range 0 to 100 Unit % (Rated output
current ratio)
Default setting 50
• Set DC control current with 1% units based on rated output current of Inverter as 100%.
n065 Stopped DC Braking Time
Setting range 0.0 to 10.0 Unit s Default setting 0.5
• Set with n065 DC control time in 1-s units to stop the motor.
• The Inverter will not perform DC control to stop the motor if n065 is set to 0.0.
• The
DC control time set with n065 is valid if n004 (i.e., stop mode selection) is set to 0 (i.e., decelera -
tion
stop mode). The Inverter will not perform DC control if a free running stop mode is selected with
n004.
n066 Startup DC Braking Time
Setting range 0.0 to 10.0 Unit s Default setting 0.0
• The parameter n066 is used to stop the motor that is coasting and restart the motor.
• Set with n065 DC control time in 1-s units to start the motor.
• The Inverter will not perform DC control to start the motor if n066 is set to 0.0.

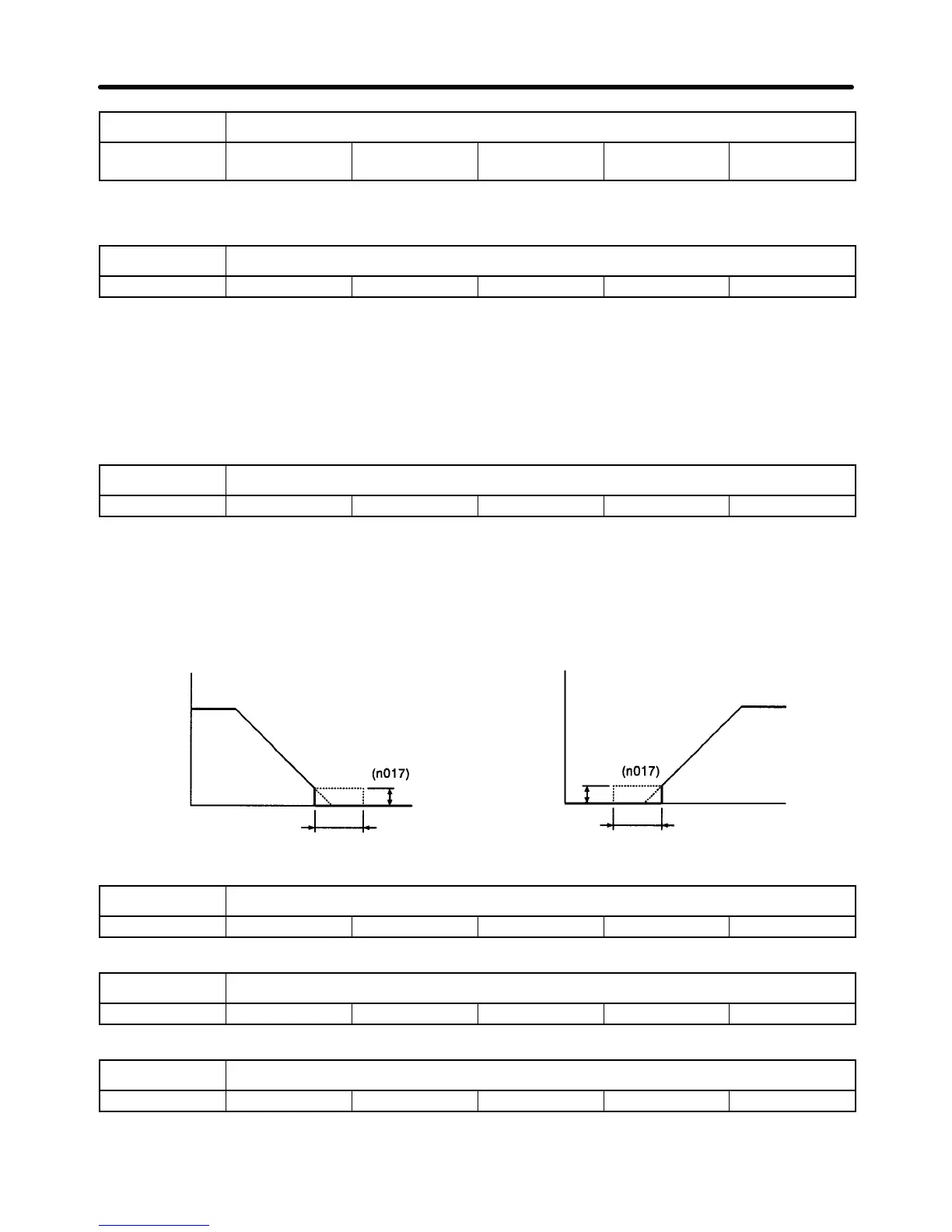

Stop DC Control Start DC Control
Output
frequency
Output
frequency
Time
Time
Minimum
output
frequency
Stopped DC braking
time (n065)
Startup DC braking
time (n066)
Minimum output
frequency
n067 Automatic Torque Boost Gain
Setting range 0.0 to 3.0 Unit Times Default setting 1.0
n068 Motor Winding Resistance
Setting range 0.000 to 65.53 Unit Ω Default setting See note
n069 Motor Iron Loss
Setting range 0 to 9,999 Unit W Default setting See note
Note The default-set values of n068 and n069 vary with the Inverter model.
Preparing for Operation Chapter 3
