2-34

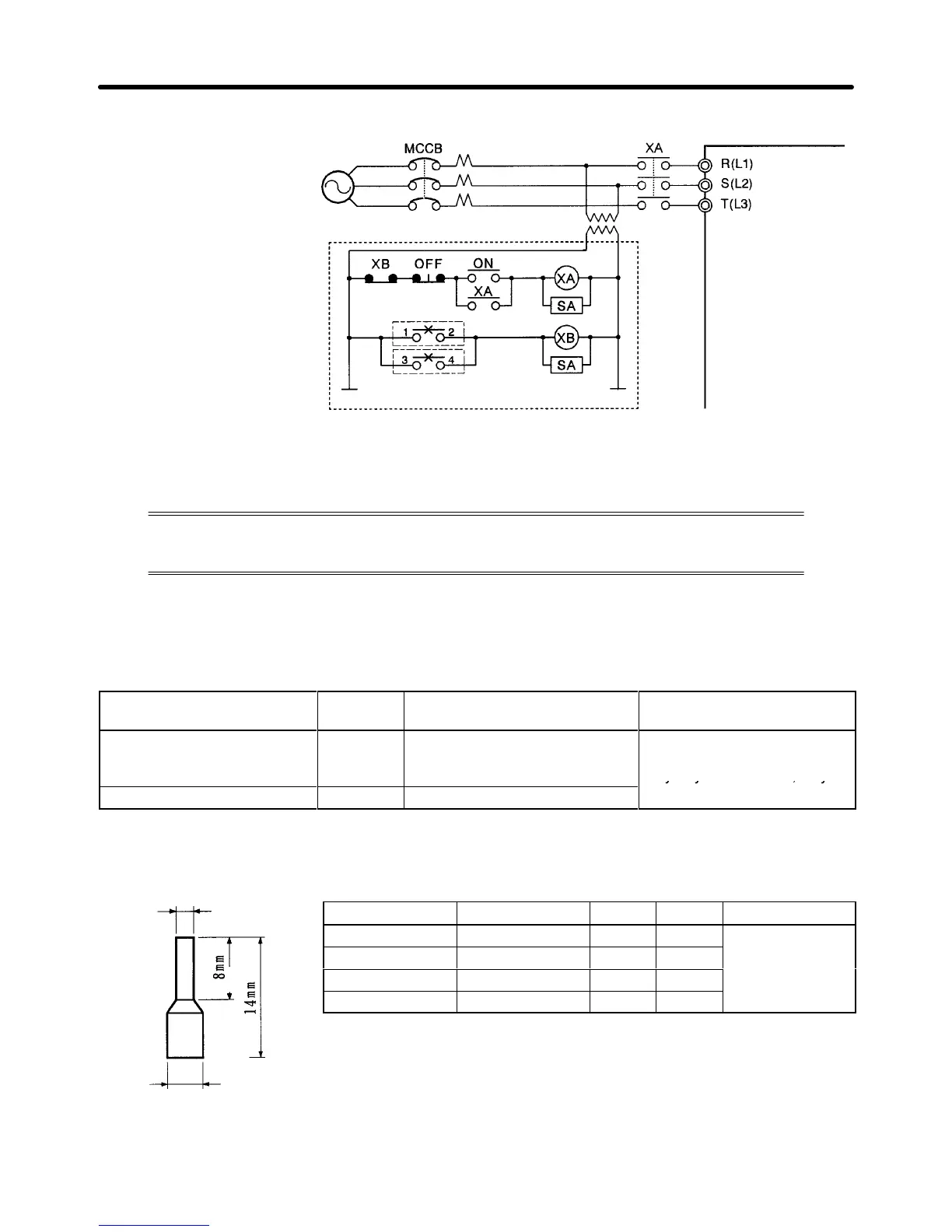

D Power Supply Sequence
200-V class:
Three-phase, 200 to
230 V
AC (50/60 Hz)
400-V class:
Three-phase, 380 to
460 V
AC (50/60 Hz)
Power
supply
Inverter
(See note)
Note Use a transformer with 200- and 400-V outputs for the power supply of the 400-V Inverter.
2-2-5 Wiring Control Circuit Terminals
A
control signal line must be 50 m maximum and separated from power lines. The fre
-
quency reference must be input to the Inverter through twisted-pair wires.
H Wire Size and Solderless Terminals
Use thick wires to prevent voltage drops if the wires are long.
D Wires for All Inverter Models
Terminal Terminal
screw
Wire thickness (mm
2
) Type
S1, S2, S3, S4, S5, S6, SC,
FV, FI, FS, FC, AM, AC, M1,
M2, MA, MB, MC
--- Stranded wire: 0.5 to 1.25
Single wire: 0.5 to 1.25
Shielded, twisted-pair wire
Shielded,
polyethylene-covered, vinyl
E (G) M3.5 0.5 to 2
sheath cable
D Solderless Terminals for Control Circuit Terminals
The use of solderless terminals for the control circuit terminals is recommended because solderless
terminals are easy to connect securely.
Wire thickness Model d1 d2 Manufacturer
0.5 mm
2
A1 0.5-8WH 1.00 2.60
Phoenix Contact
0.75 mm
2
A1 0.75-8GY 1.20 2.80
1 mm
2
A1 1-8RD 1.40 3.00
1.5 mm
2
A1 1.5-8BK 1.70 3.50
Installation Chapter 2
d1
dia.
d2 dia.
To Next Page
