5-6

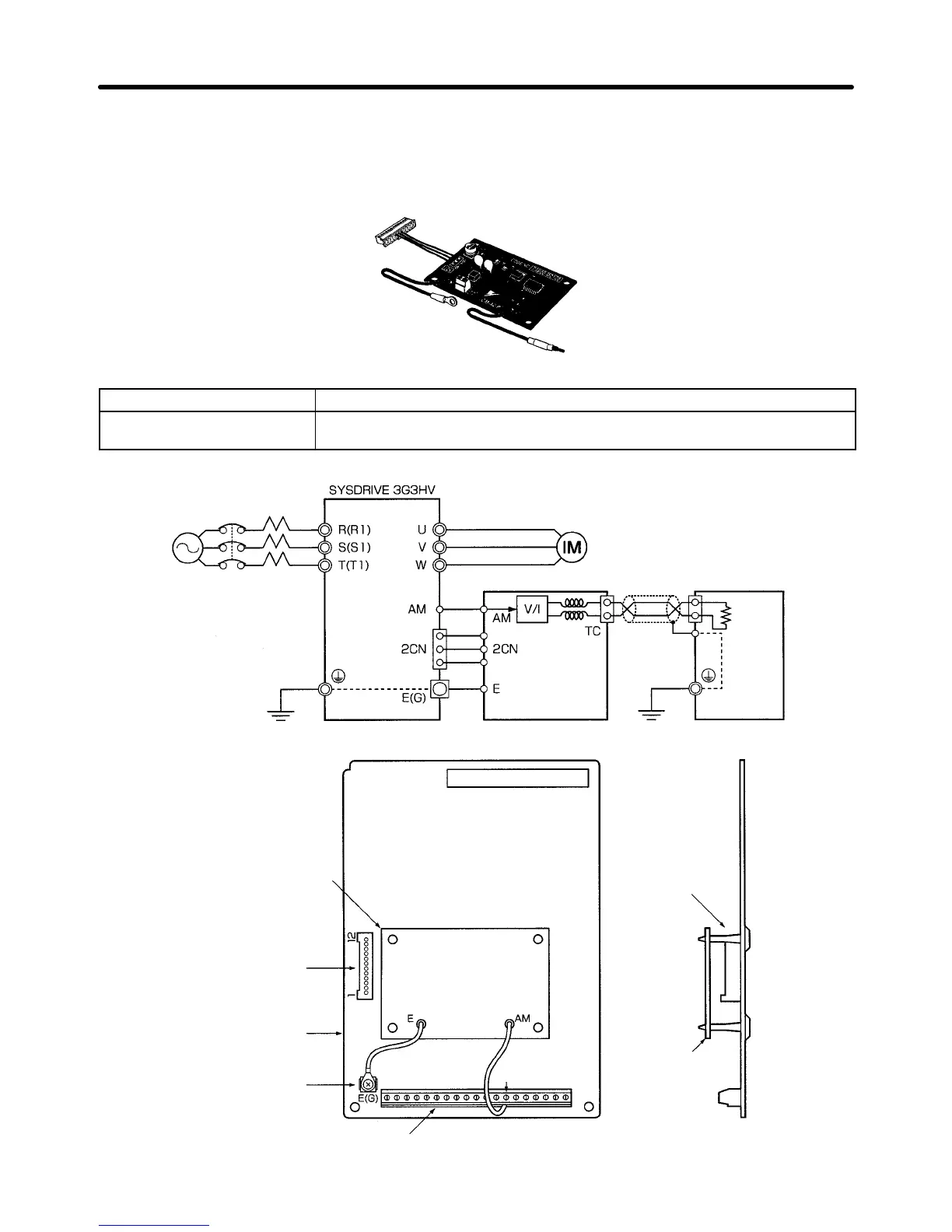

5-2-2 3G3HV-PCMA2 Voltage/Current Conversion Card
The
3G3HV-PCMA2 is a dedicated
optional device mounted to the control circuit board of the 3G3HV
-
series
Inverter to convert the 0- to 10-VDC multi-function analog outputs of the Inverter to 4- to 20-mA
outputs.
D Standard Models
Model Specification
3G3HV-PCMA2 Dedicated device for the 3G3HV-series Inverter to convert the 0- to 10-VDC
outputs of the Inverter to 4- to 20-mA outputs.
D Wiring Example
250 Ω
Measuring
instrument
Voltage/Current Conversion Card
Three-phase,
200 (400) VAC
D Mounting Method
3G3HV-PCMA2
Voltage/Current
Conversion
Card
Front View Side View
2CN (Connector
for 3G3HV-
PCMA2)
Control circuit
board
Ground terminal
for shielded wire
Control circuit terminals
AM
(Multi-func
-
tion analog
output)
Supporting
bracket
3G3HV-PCMA2
Specifications Chapter 5
