Omron SYSDRIVE 3G3HV SERIES - Multi-Function Input 5 (S6); Example of Wiring for 2-Wire Sequential Operation; Example of Multi-Step Operation

3-18
n039 Multi-function Input 5 (S6)
Setting range 2 to 25 Unit --- Default setting 10
Set Values
Set value Description
0 Reverse rotation/Stop (2-wire sequence)
1 Stop command (3-wire sequence). S3 will be used for the forward/reverse rotation command
and the value set with n036 will be ignored.
9 Multi-step speed command 1
10 Multi-step speed command 2
11 Inching command
12 Acceleration/Deceleration time switching command

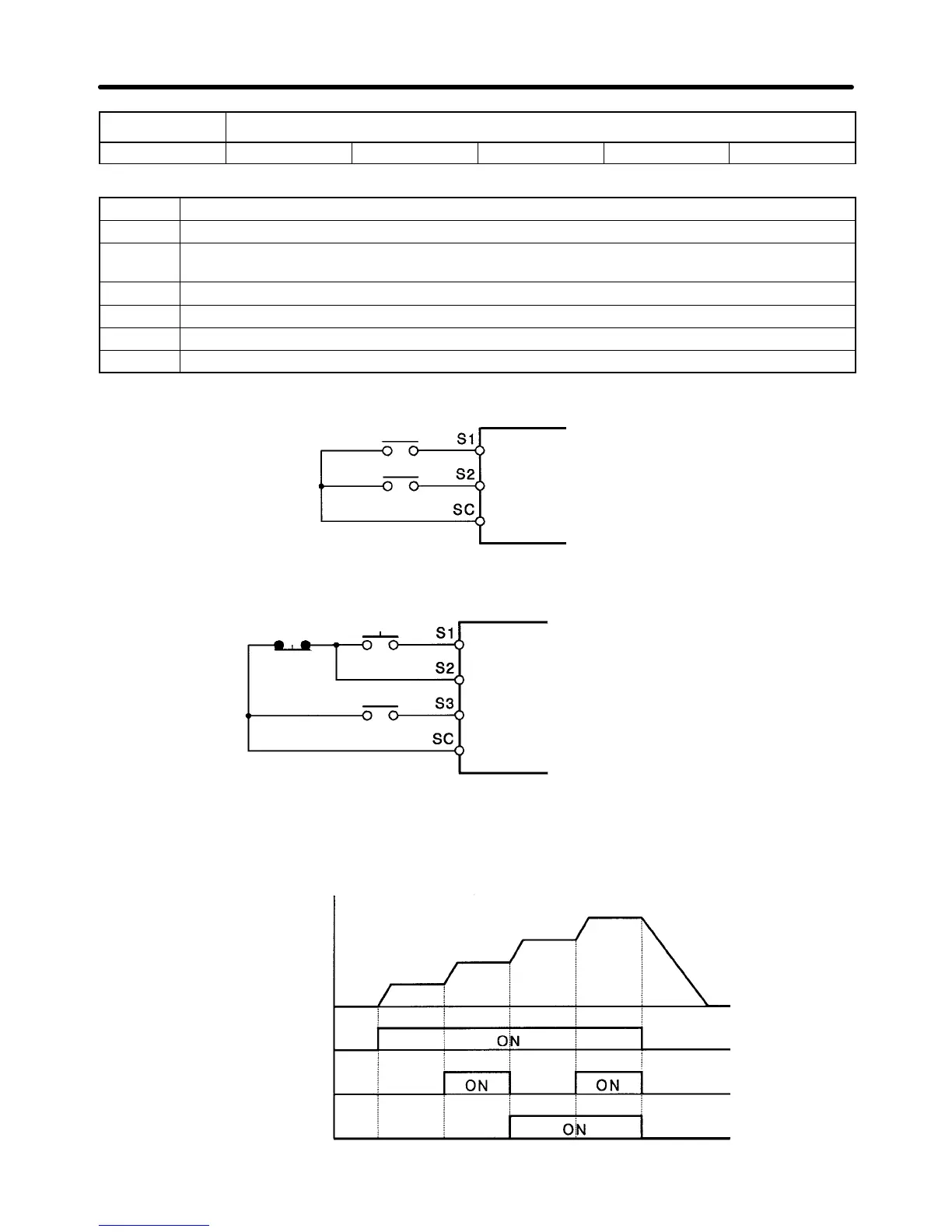

D Example of Wiring for 2-wire Sequential Operation (Set Value: 0)
Forward rotation/Stop
Reverse rotation/Stop
D Example of Wiring for 3-wire Sequential Operation (Set Value: 1)
Stop switch
(NC)
Operation switch
(NO)
Run command (Operates when the
operation switch is closed)
Stop command (Stops when the stop
switch is open)
Forward/Reverse rotation command
D Example of Multi-step Operation (Set Values: 9 and 10)
Select multi-step speed command 1 for the Inverter in two-step speed operation and multi-step speed
commands 1 and 2 for the Inverter in four-step speed operation.
Forward
rotation/Stop
Frequency
reference
1
Frequency
reference 2
Frequency
reference 3
Frequency
reference 4
Multi-step speed
command 1
Multi-step speed
command 2
Frequency
reference
Preparing for Operation Chapter 3
