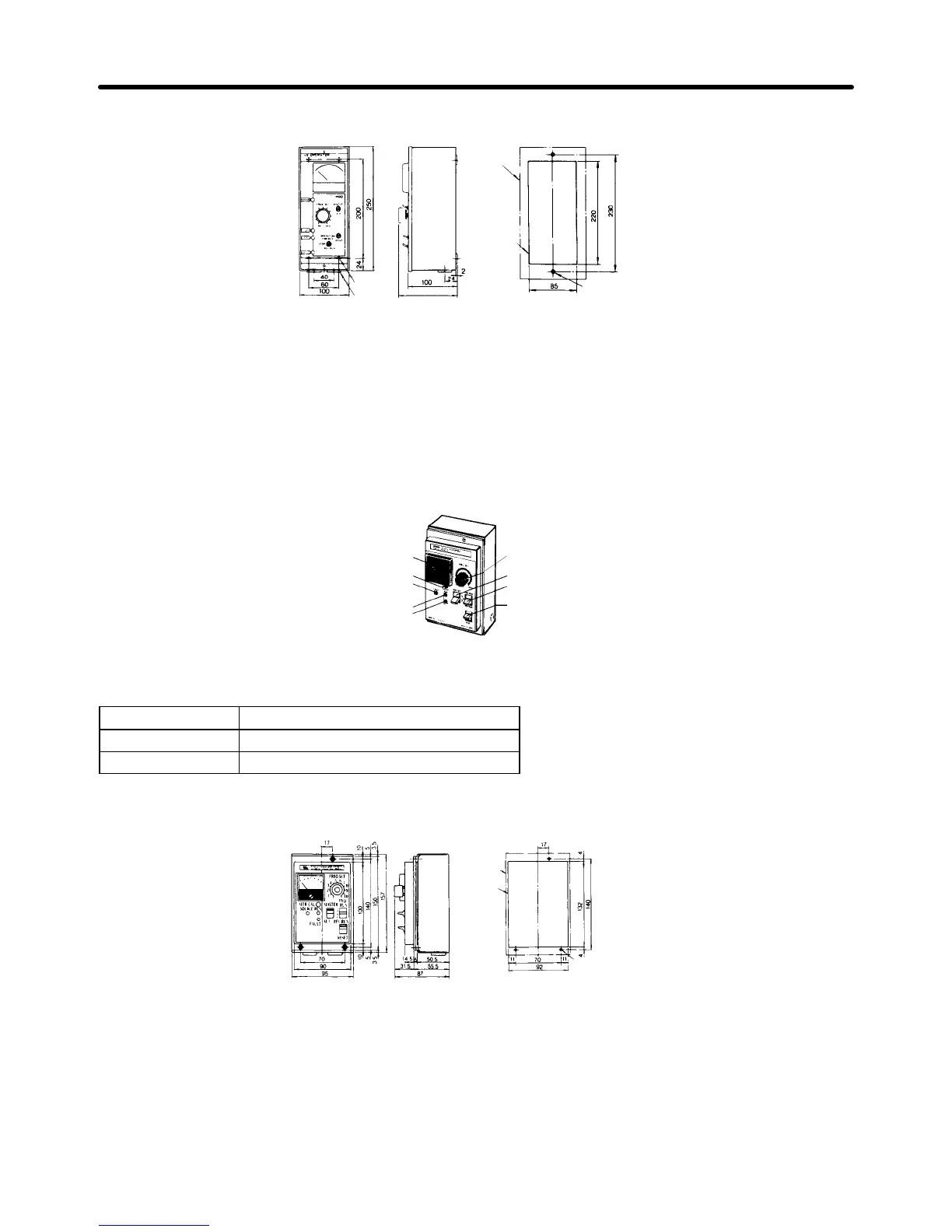

Omron SYSDRIVE 3G3HV SERIES - 3 G3 IV-Pjvop95 J Analog Operator (Miniature Model with Plastic Casing)

5-9
D External Dimensions
Four, 7 dia.
mounting
hole
Two, 23 dia.
Rubber bushing
Space for
front panel
Panel
mounting
Mounting dimensions
Weight: 1.8 k g
Two, 4 dia.
mounting tap
5-2-5 3G3IV-PJVOP95j Analog Operator (Miniature Model with
Plastic Casing)
The 3G3IV -PJVOP95j Analog Operator makes it possible to control the operation of the Inverter , in -
cluding the output frequency, with analog commands at a maximum distance of 50 m.
Frequency meter adjustor
Power indicator
Frequency meter
Operation indicator
Error indicator
Frequency selector
Frequency reference selector
Forward/Stop/Reverse selector
Error reset
D Standard Models
Model Frequency meter specification
3G3IV-PJVOP951 TRM-45: 3 V, 1 mA, 60/120 Hz
3G3IV-PJVOP952 TRM-45: 3 V, 1 mA, 90/180 Hz
D External Dimensions
Mounting dimensions
Weight: 0.8 kg
Three, 3 dia. tap
Space for
front panel
Panel
mounting
Specifications Chapter 5
