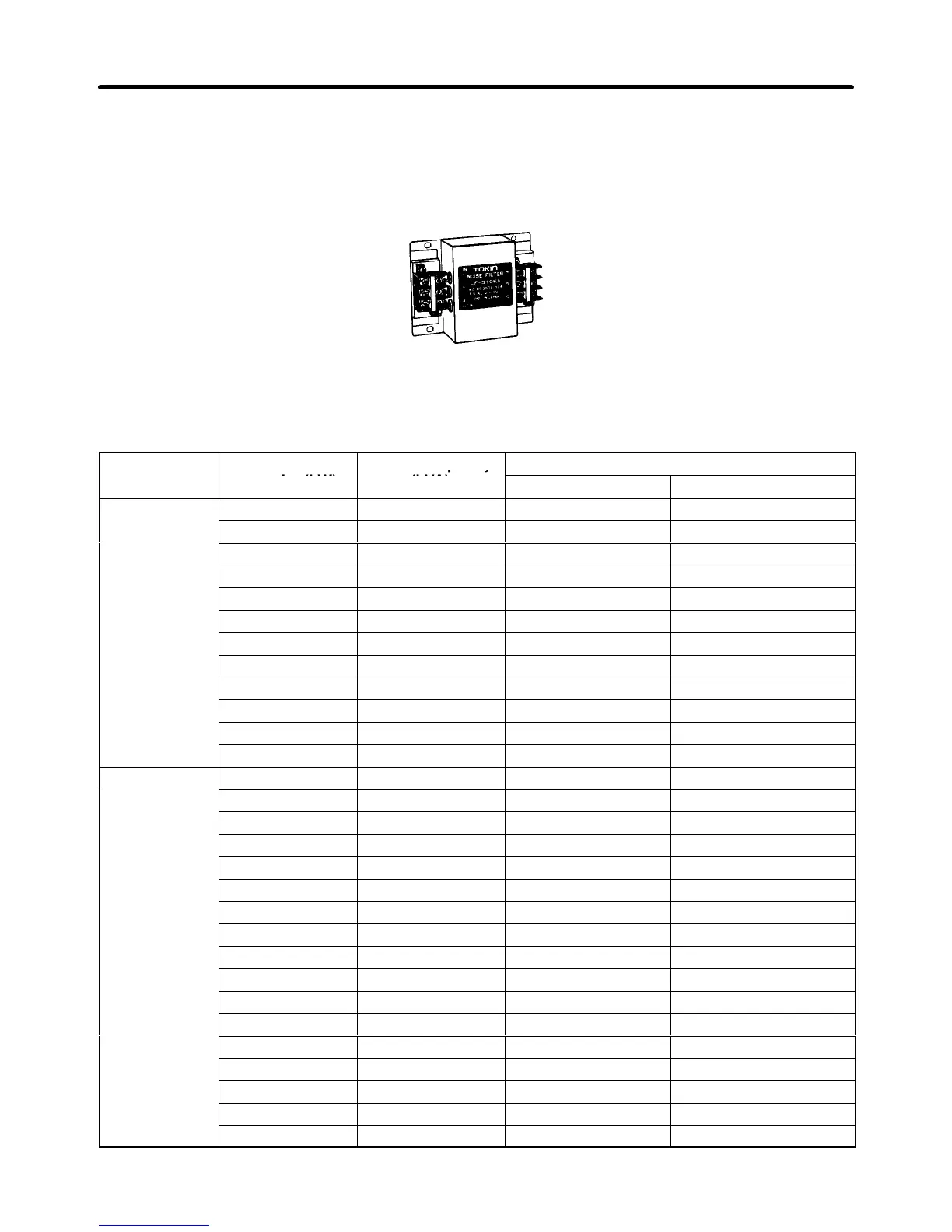

5-2-11 3G3IV-PLFj Output Noise Filter (Tokin Corp.)
Connect the 3G3IV-PLFj Output Noise Filter to the motor output side of the Inverter to prevent the
noise generated by the Inverter from flowing to the motor.
D Standard Specifications and External Dimensions
Maximum motor
i (kW)
Inverter capacity
(kVA)
Output Noise Filter
capacity (kW)
py
(kVA)
Model 3G3IV- Rated current (A)
200-V class
3.7 6.7 PLF320KA 20
5.5 9.5 PLF350KA 50
7.5 13 PLF350KA 50
11 19 PLF350KA x 2P 100
15 24 PLF350KA x 2P 100
18.5 30 PLF350KA x 2P 100
22 37 PLF350KA x 3P 150
30 50 PLF350KA x 3P 150
37 61 PLF31
10KB x 2P
220
45 70 PLF31
10KB x 2P
220
55 85 PLF31
10KB x 3P
330
75 110 PLF31
10KB x 4P
440
400-V class
3.7 6.1 PLF310KB 10
5.5 11 PLF320KB 20
7.5 14 PLF320KB 20
11 21 PLF335KB 35
15 26 PLF335KB 35
18.5 31 PLF345KB 45
22 37 PLF375KB 75
30 50 PLF375KB 75
37 61 PLF3110KB 110
45 73 PLF3110KB 110
55 98 PLF375KB x 2P 150
75 130 PLF31
10KB x 2P
220
110 170 PLF31
10KB x 3P
330
160 230 PLF31
10KB x 4P
440
185 260 PLF31
10KB x 4P
440
220 340 PLF31
10KB x 5P
550
300 460 PLF31
10KB x 6P
660
Specifications Chapter 5
