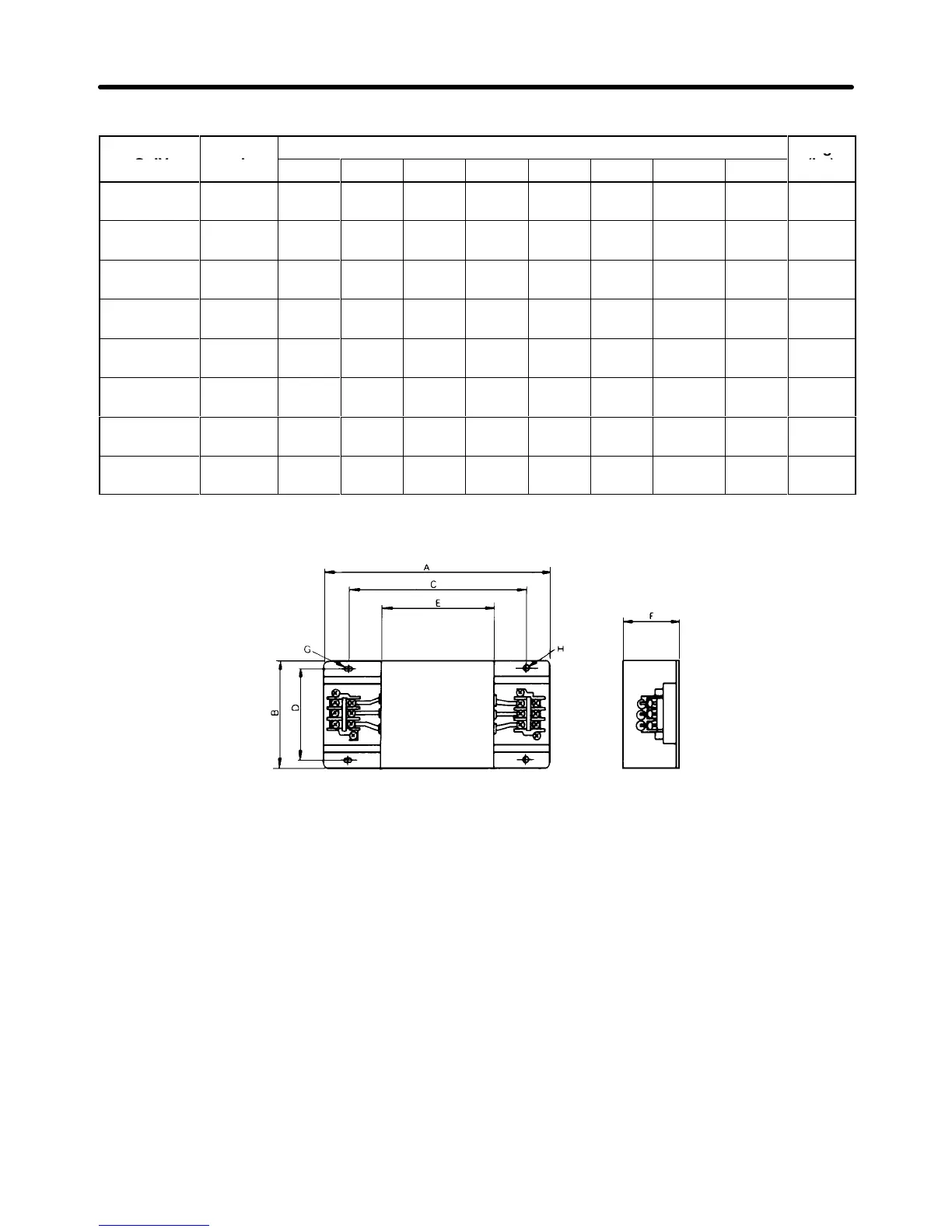

D External Dimensions
Model
GIV
Termi-
l
Dimensions
Weight
(k )
3G3IV- nals
A B C D E F G H
g
(kg)
PLF320KA TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5
dia.
4.5
dia.
0.6
PLF350KA TE-K22
M6
260 180 180 160 120 65 7 x 4.5
dia.
4.5
dia.
2.0
PLF310KA TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5
dia.
4.5
dia.
0.5
PLF320KB TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5
dia.
4.5
dia.
0.6
PLF335KB TE-K5.5
M4
140 100 100 90 70 45 7 x 4.5
dia.
4.5
dia.
0.8
PLF345KB TE-K22
M6
260 180 180 160 120 65 7 x 4.5
dia.
4.5
dia.
2.0
PLF375KB TE-K22
M6
540 320 480 300 340 240 9 x 6.5
dia.
6.5
dia.
12.0
PLF3110KB TE-K60
M8
540 340 480 300 340 240 9 x 6.5
dia.
6.5
dia.
19.5
