Omron SYSDRIVE 3G3HV SERIES User Manual

5-18

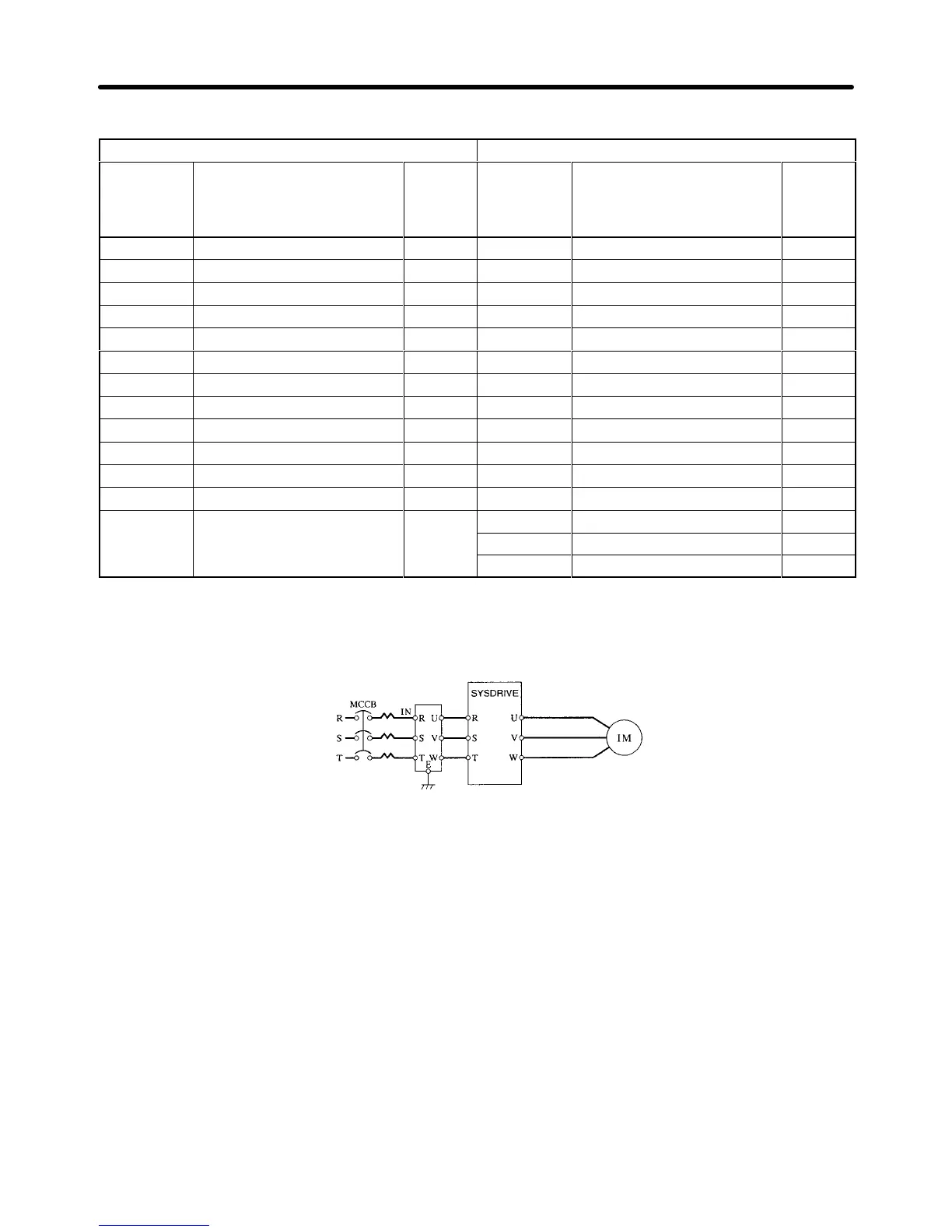

H Applicable Models
200-V class 400-V class
Maximum
motor ca-
pacity
(kW)
New model Rated
current
(A)
Maximum
motor ca-
pacity
(kW)
New model Rated
current
(A)
0.1 to 0.75 3G3EV-PLNFD2103DY 10 0.2 to 0.75 3G3EV-PLNFD4053DY 5
1.5 3G3EV-PLNFD2153DY 15 1.5/2.2 3G3EV-PLNFD4103DY 10
2.2 3G3EV-PLNFD2203DY 20 3.7 3G3EV-PLNFD4153DY 15
3.7 3G3EV-PLNFD2303DY 30 5.5 3G3EV-PLNFD4203DY 20
5.5 3G3IV-PFN258L4207 42 7.5 3G3EV-PLNFD4303DY 30
7.5 3G3IV-PFN258L5507 55 11 3G3IV-PFN258L4207 42
11 3G3IV-PFN258L7534 75 15/18.5 3G3IV-PFN258L5507 55
15 3G3IV-PFN258L10035 100 22 3G3IV-PFN258L7534 75
18.5/22 3G3IV-PFN258L13035 130 30 3G3IV-PFN258L10035 100
30 3G3IV-PFN258L18007 180 37/45 3G3IV-PFN258L13035 130
37/45 3G3IV-PFN359P25099 250 55 3G3IV-PFN258L18007 180
55 3G3IV-PFN359P30099 300 75/110 3G3IV-PFN359P30099 300
75 3G3IV-PFN359P25099 x 2P 500
160/185 3G3IV-PFN359P25099 x 2P 500
220 3G3IV-PFN359P30099 x 2P 600
300 3G3IV-PFN359P30099 x 2P 900
H Connection Example
3-phase input
Noise filter
Specifications Chapter 5
