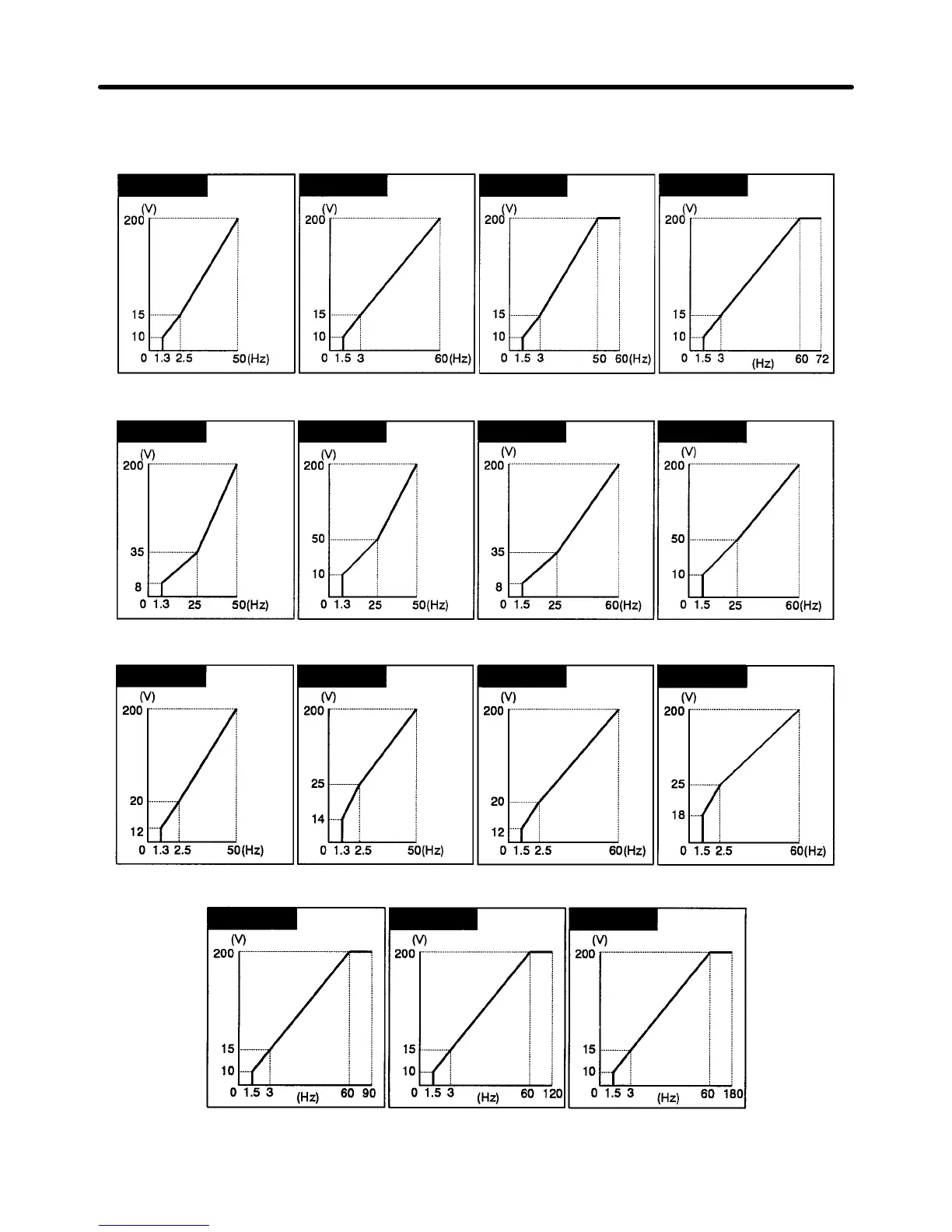

Characteristics of V/f Patterns
D General Characteristics (Set Value: 0 to 3)
Set value 0 Set value 1 Set value 2 Set value 3
(12)
(6)
(12)
(6)
(12)
(6)
(12)
(6)
D Reduced Torque Characteristics (Set Value: 4 to 7)
Set value 4 Set value 5 Set value 6 Set value 7
(5) (5)
(6) (6)
D High Starting Torque Characteristics (Set Value: 8 to b)
Set value 8 Set value 9 Set value A Set value b
(15)
(7)
(15)
(7)
(20)
(9)
(20)
(11)
D Constant Power Operation Characteristics (Set Value: C to E)
Set value C Set value d Set value E
(12)
(6)
(12)
(6)
(12)
(6)
Note Figures in parentheses apply to 55-kW or higher Inverters.
