Omron SYSDRIVE 3G3HV SERIES User Manual

5-19
H Dimensions

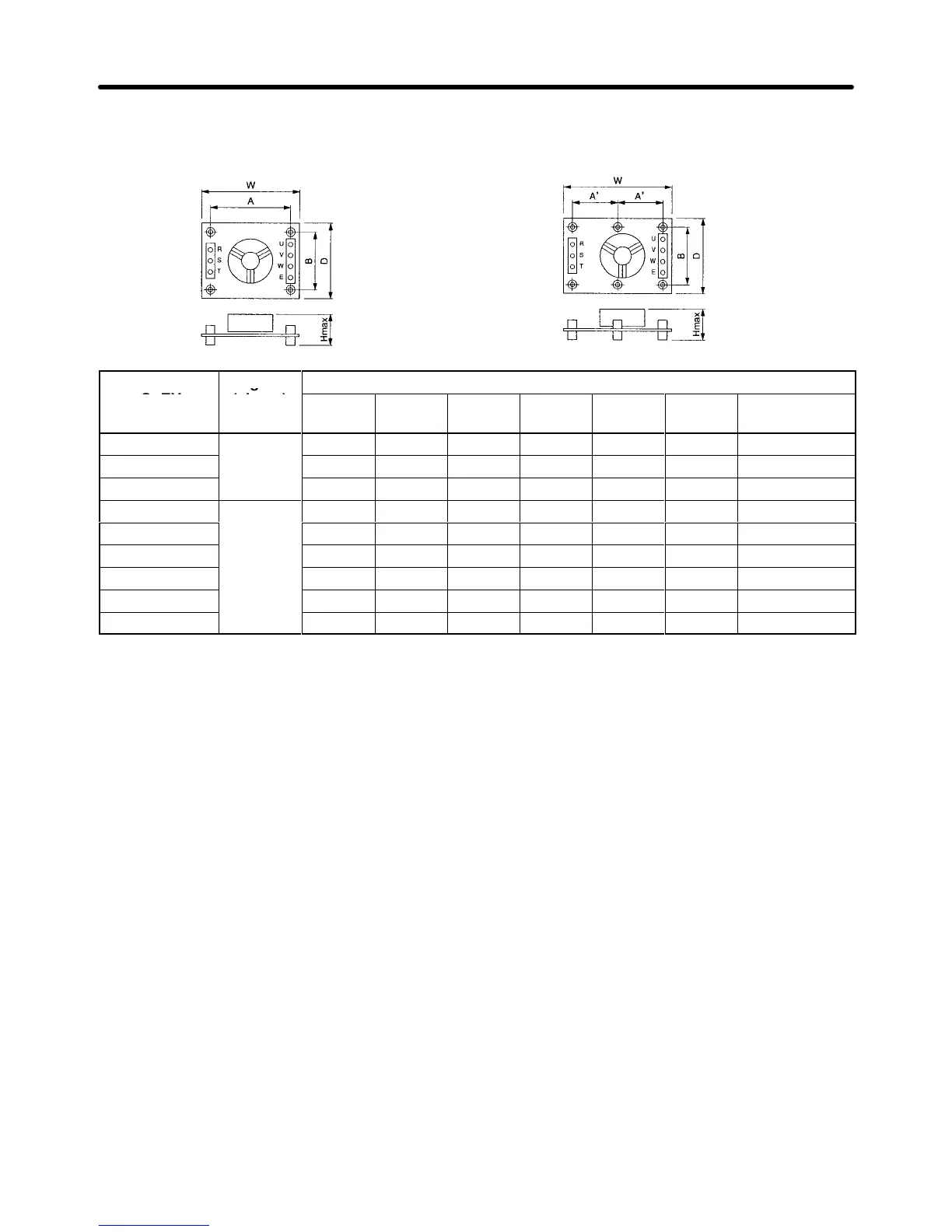

Dimensions 1 (Three-phase Input) Dimensions 2 (Three-phase Input)
Model
GEV
Figure
(b )
Dimension (mm)
3G3EV-
g
(above)
W D H max. A A’ B Mounting
screw
PLNFD2103DY
1
120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2153DY 120 80 55 108 --- 68 M4 × 4, 20 mm
PLNFD2203DY 170 90 70 158 --- 78 M4 × 4, 20 mm
PLNFD2303DY
2
170 110 70 --- 79 98 M4 × 6, 20 mm
PLNFD4053DY 170 130 75 --- 79 118 M4 × 6, 30 mm
PLNFD4103DY 170 130 95 --- 79 118 M4 × 6, 30 mm
PLNFD4153DY 170 130 95 --- 79 118 M4 × 6, 30 mm
PLNFD4203DY 200 145 100 --- 94 133 M4 × 6, 30 mm
PLNFD4303DY 200 145 100 --- 94 133 M4 × 6, 30 mm
