Omron SYSDRIVE 3G3HV SERIES User Manual

5-13

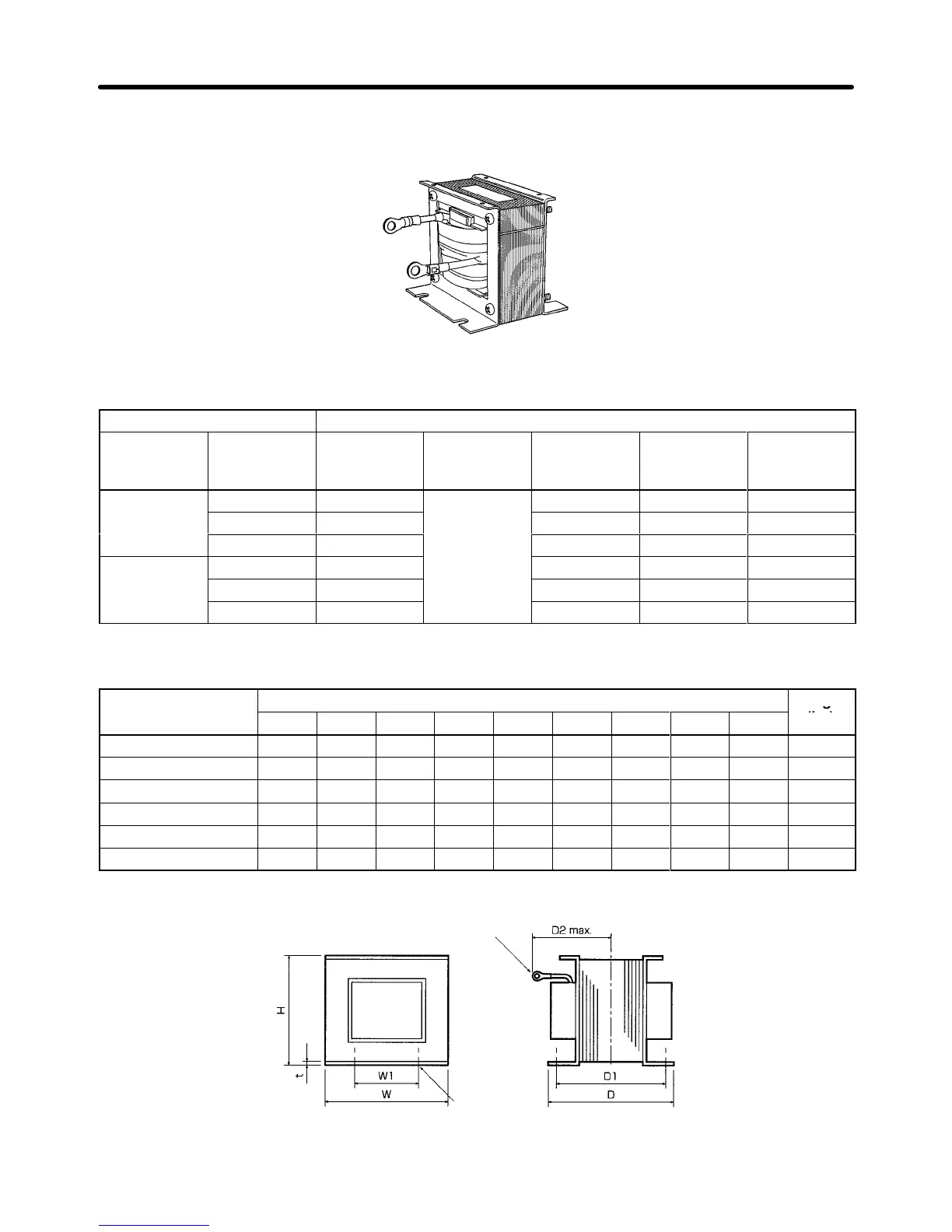

Use the DC Reactor with the Inverter with an output of 15 kW max. The Inverter with an output of
18.5 kW or more has a built-in DC Reactor.
D Standard Models
Inverter DC Reactor
Voltage
class
Maximum
motor ca-
pacity (kW)
Model
3G3HV-PUZ-
DABj
Rated volt-
age (V)
Rated cur-
rent (A)
Inductance
(mH)
Loss (W)
200-V class
3.7 18A3MH
800 VDC
18 3 18
5.5/7.5 36A1MH 36 1 22
11/15 72A0.5MH 72 0.5 29
400-V class
3.7 12A6.3MH 12 6.3 16
5.5/7.5 23A3.6MH 23 3.6 27
11/15 33A1.9MH 33 1.9 26
D External Dimensions
Model 3G3HV-
Dimensions
Weight
(k )
H W W1 D D1 D2 t d1 d2
g
(kg)
PUZDAB18A3MH 76 86 60 72 55 80 1.2 M4 M5 2.0
PUZDAB36A1MH 93 105 64 92 80 90 1.6 M6 M6 3.2
PUZDAB72A0.5MH 93 105 64 112 100 105 1.6 M6 M8 4.9
PUZDAB12A6.3MH 76 86 60 72 55 80 1.2 M4 M5 2.0
PUZDAB23A3.6MH 93 105 64 92 80 90 1.6 M6 M5 3.2
PUZDAB33A1.9MH 93 105 64 102 90 95 1.6 M6 M6 4.0
Appearance
Two, 2 dia. screws
Four , 1 dia.
mounting
screws
Specifications Chapter 5
