3-61
n014 Maximum Voltage Frequency (FA)
Setting range 0.2 to 400.0 Unit Hz Default setting 60.0
n015 Intermediate Output Frequency (FB)
Setting range 0.1 to 399.9 Unit Hz Default setting 3.0
n016 Intermediate Output Frequency Voltage (VC)
Setting range 0.1 to 255.0
(510.0)
Unit V Default setting 15.0 (30.0)
(See note 2.)
n017 Minimum Output Frequency (FMIN)
Setting range 0.1 to 10.0 Unit Hz Default setting 1.5
n018 Minimum Output Frequency Voltage (VMIN)
Setting range 0.1 to 50.0
(100.0)
Unit V Default setting 10.0 (20.0)
(See note 2.)
Note 1. Figures in parentheses apply to the 400-V Inverter.
Note 2. The default settings for 55-kW or higher Inverters are as follows:
200-V 55-kW or higher Inverters: n016 = 12.0 V, n018 = 6.0 V
400-V 55-kW or higher Inverters: n016 = 24.0 V, n018 = 12.0 V
• An optional V/f pattern will be available and n012 to n018 can be set if the V/f pattern is set to F.

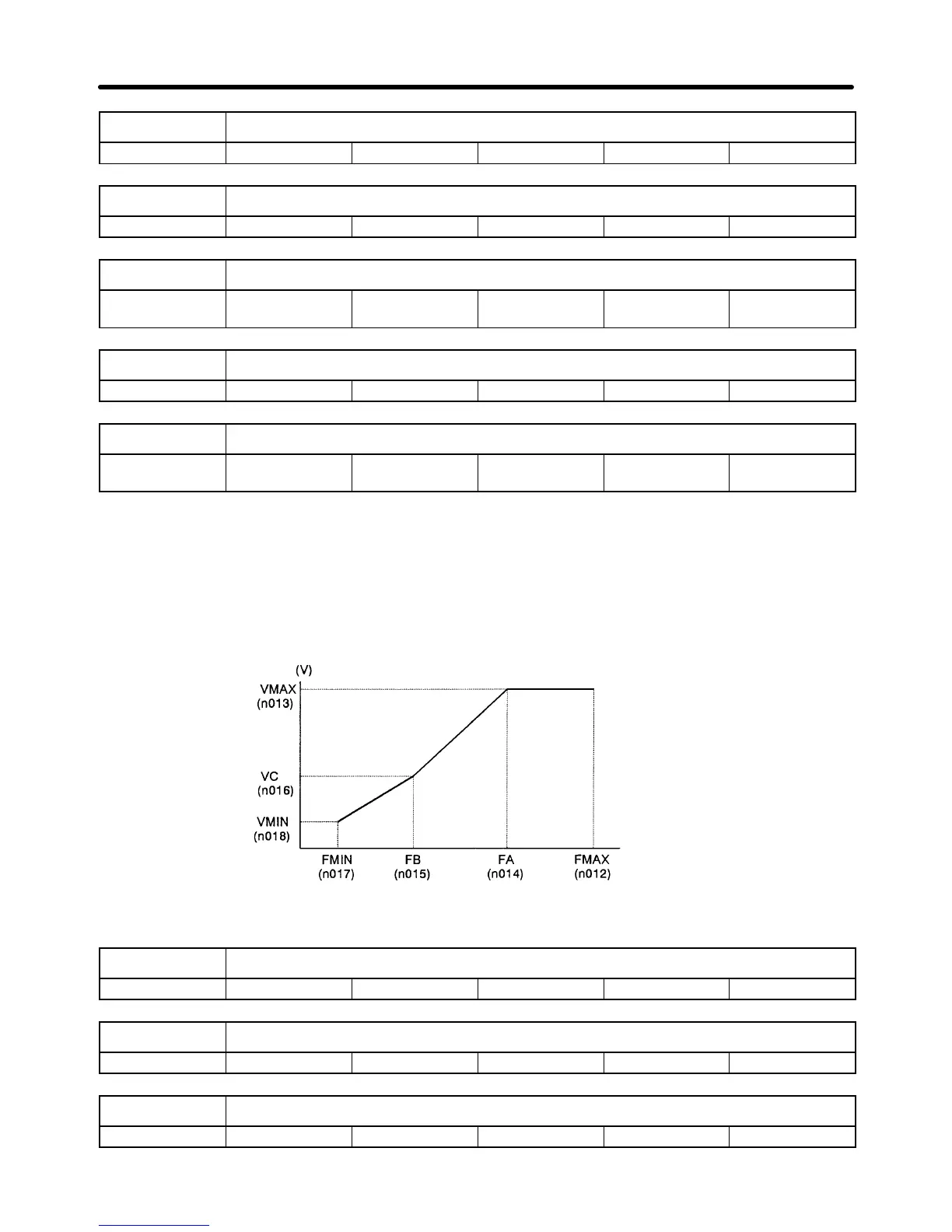

Optional V/f Pattern in Detail
Voltage
Frequency
(Hz)
Note The
V/f pattern will be a straight line if there is no dif
ference between n015 and n017 in set value,
in which case the set value of n016 will be ignored.
n019 Acceleration Time 1
Setting range 0.0 to 3,600 Unit s Default setting 10.0
n020 Deceleration Time 1
Setting range 0.0 to 3,600 Unit s Default setting 10.0
n021 Acceleration Time 2
Setting range 0.0 to 3,600 Unit s Default setting 10.0
Preparing for Operation Chapter 3
