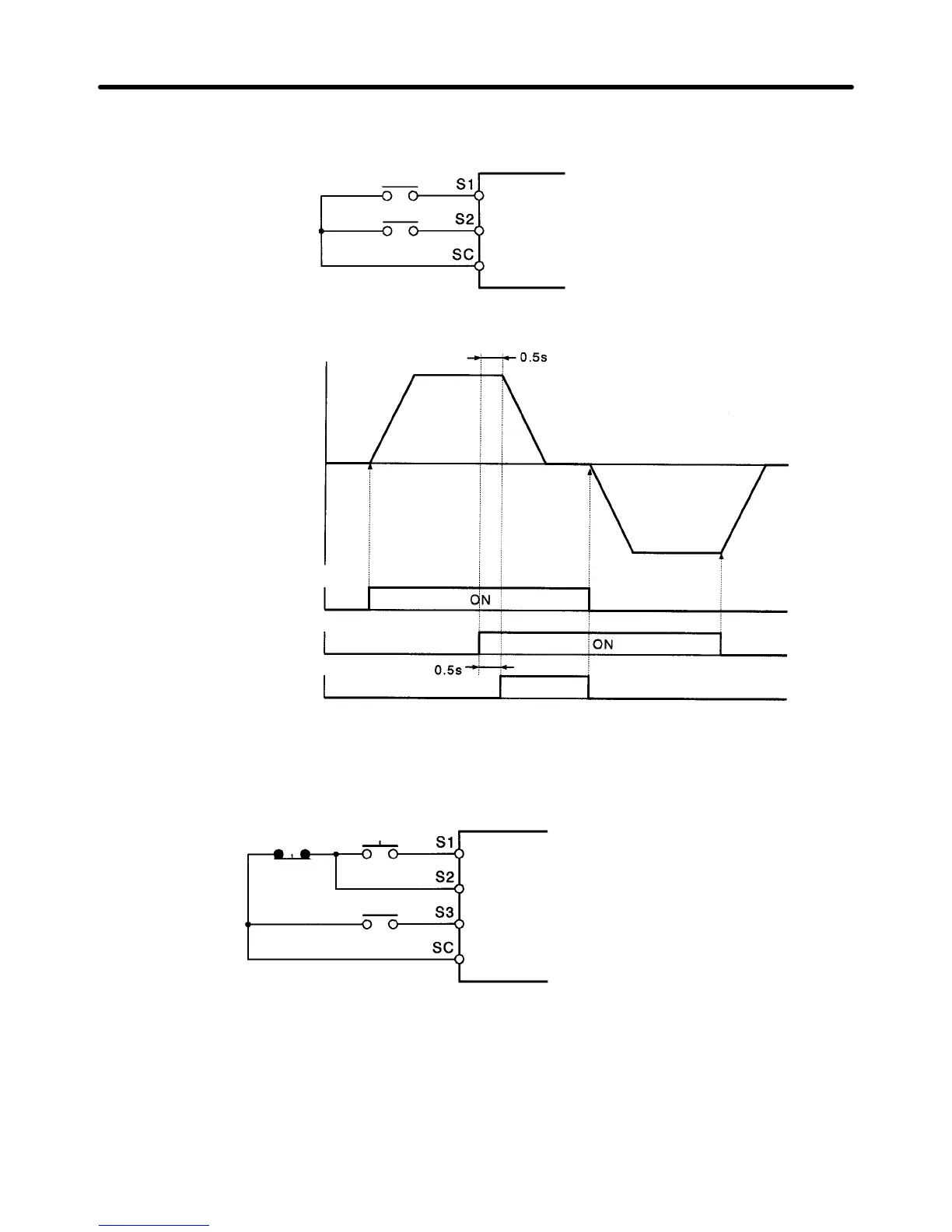

D 2-wire Sequence (n035 = 0)
Wiring Example
Forward rotation/Stop
Reverse rotation/Stop
Operation Example
Forward
rotation
Motor operation
Reverse rotation
(Forward and reverse
rotation commands input
simultaneously)
EF
detection
Forward rotation/Stop
(S1)
Reverse rotation/Stop
(S2)
D 3-wire Sequence (n035 = 1)
Wiring Example
Stop switch
(NC)
Operation switch
(NO)
Run command (Operates when the
operation switch is closed)
Stop command (Stops when the stop
switch is open)
Forward/Reverse rotation command
Preparing for Operation Chapter 3
