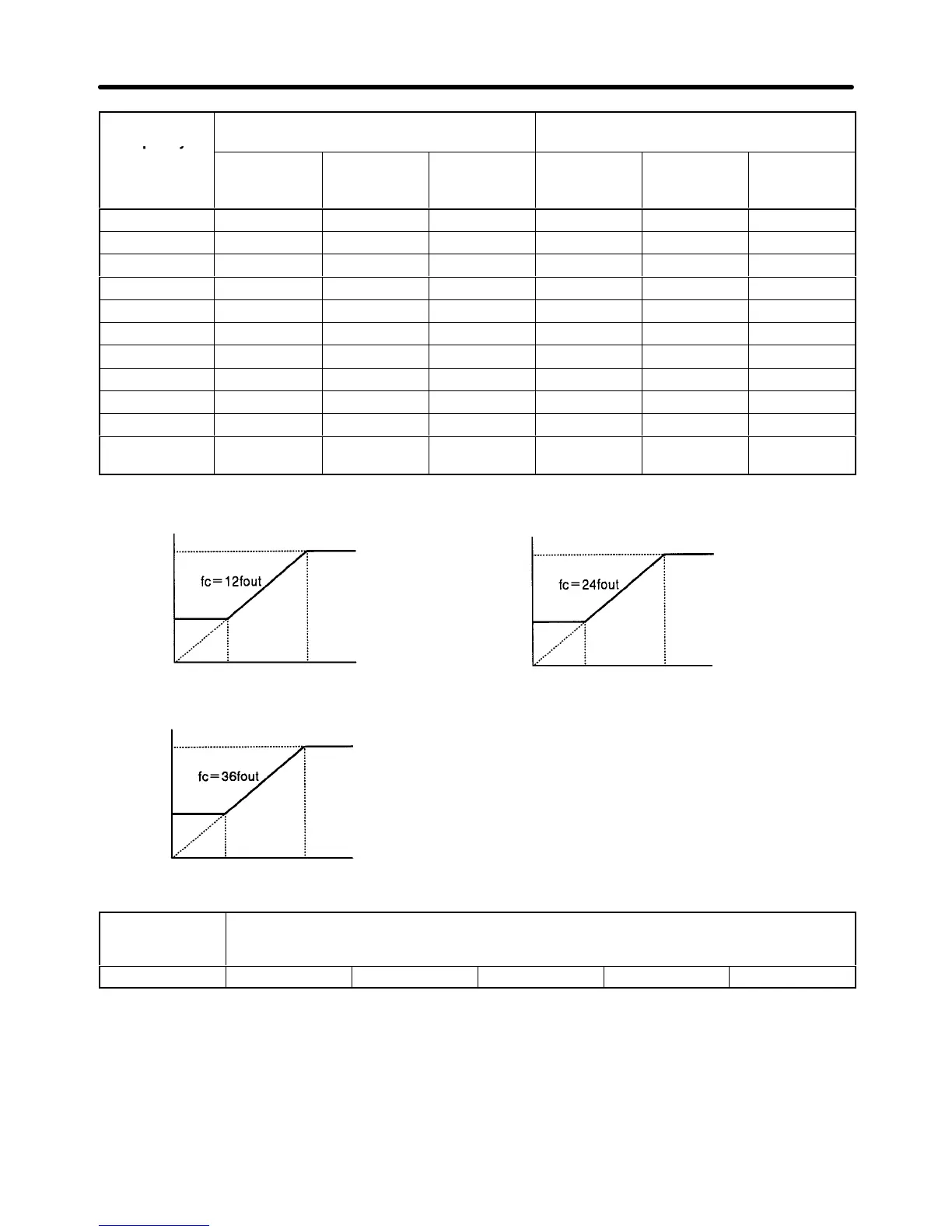

3-81
400-V Inverter
capacity
English Models (Japanese Models)
3G3HV-Aj-E(-Aj)
Models conforming to EN standards
3G3HV-Aj-CUE/-CE
capac ty
Default
setting
Drop in
rating at
10 kHz
Drop in
rating at
15 kHz
Default
setting
Drop in
rating at
10 kHz
Drop in
rating at
15 kHz
0.4 to 2.2 kW --- --- --- 6 (15.0 kHz) 100% 95%
3.7 to 5.5 kW 6 (15.0 kHz) 100% 100% 6 (15.0 kHz) 100% 95%
7.5 kW 5 (12.5 kHz) 100% 90% 4 (10.0 kHz) 100% 80%
11 kW 5 (12.5 kHz) 100% 90% 5 (12.5 kHz) 100% 95%
15/18.5 kW 5 (12.5 kHz) 100% 90% 4 (10.0 kHz) 100% 80%
22 kW 4 (10.0 kHz) 100% 80% 4 (10.0 kHz) 85% 50%
30 kW 3 (8.0 kHz) 85% --- 3 (8.0 kHz) 85% ---
37 kW 3 (8.0 kHz) 85% --- 2 (5.0 kHz) 60% ---
45 kW 10 (7.0 kHz) 75% --- 2 (5.0 kHz) 60% ---
55 to 160 kW 2 (5.0 kHz) 60% --- 2 (5.0 kHz) 60% ---
185 to 300 kW 9 (2.5 kHz
max.)
--- ---
n050 = 7 n050 = 8
n050 = 9
Output frequency
(fout)
Output frequency
(fout)
Carrier frequency (fc) Carrier frequency (fc)
2.5 kHz
1.0 kHz
2.5 kHz
1.0 kHz
83.3 Hz 208.3 Hz
41.6 Hz 104.1 Hz
Output frequency
(fout)
Carrier frequency (fc)
2.5 kHz
1.0 kHz
27.7 Hz 69.4 Hz
n051 Selection of Running After Restoration Following a
Momentary Stop
Setting range 0, 1, and 2 Unit --- Default setting 0
Preparing for Operation Chapter 3
