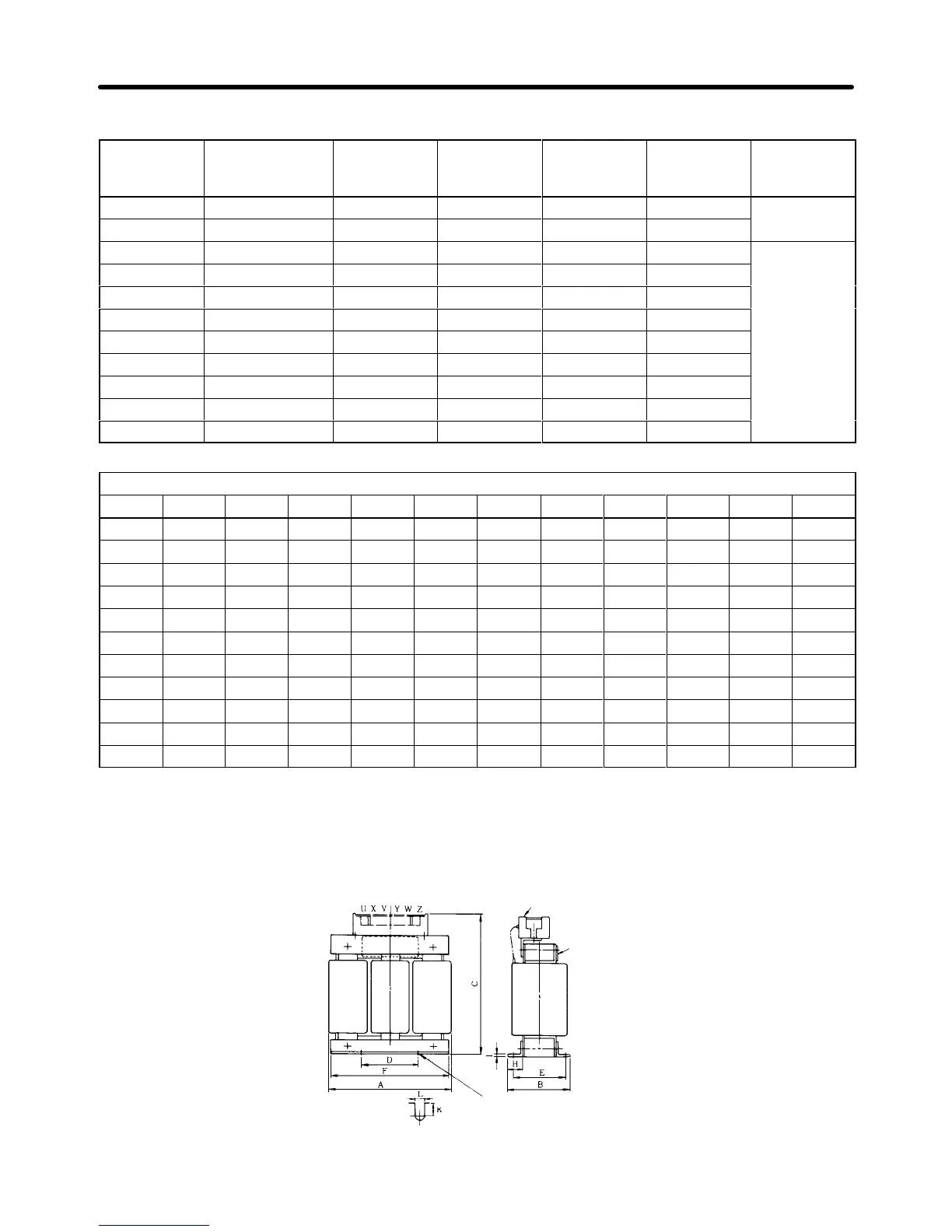

5-16
400-V Class
Maximum
motor ca-
pacity (kW)
Model 3G3IV-
PUZBABj
Amperage
(A)
Inductance
(mH)
Loss (W) Weight (kg) Appearance
3.7 10 A, 2.2 MH 10 2.2 43 3
1
5.5 15 A, 1.42 MH 15 1.42 50 4
7.5 20 A, 1.06 MH 20 1.06 50 5
2
11 30 A, 0.7 MH 30 0.7 65 6
15 40 A, 0.53 MH 40 0.53 90 8
18.5 50 A, 0.42 MH 50 0.42 90 8
22 60 A, 0.36 MH 60 0.36 90 8.5
30 80 A, 0.26 MH 80 0.26 95 12
37 90 A, 0.24 MH 90 0.24 110 15
45 120 A, 0.18 MH 120 0.18 130 23
55 150 A, 0.15 MH 150 0.15 150 23
Dimensions
A B B1 C D E F H J K L M
130 88 --- 130 50 65 130 22 M6 11.5 7 M4
130 98 --- 130 50 75 130 22 M6 11.5 7 M4
160 90 115 130 75 70 160 25 M6 10 7 M5
160 105 132.5 130 75 85 160 25 M6 10 7 M5
180 100 140 150 75 80 180 25 M6 10 7 M6
180 100 145 150 75 80 180 25 M6 10 7 M6
180 100 150 150 75 75 180 25 M6 10 7 M6
210 100 150 175 75 80 205 25 M6 10 7 M8
210 115 177.5 175 75 95 205 25 M6 10 7 M8
240 126 193 205±5 150 110 240 25 M8 8 10 M10
240 126 198 205±5 150 110 240 25 M8 8 10 M10
Appearance 1
M: Terminal
Nameplate
4-J: Mounting bolts
Mounting hole
Specifications Chapter 5
