XtraDrive User Manual Chapter 5: Parameter Settings and Functions
5-35

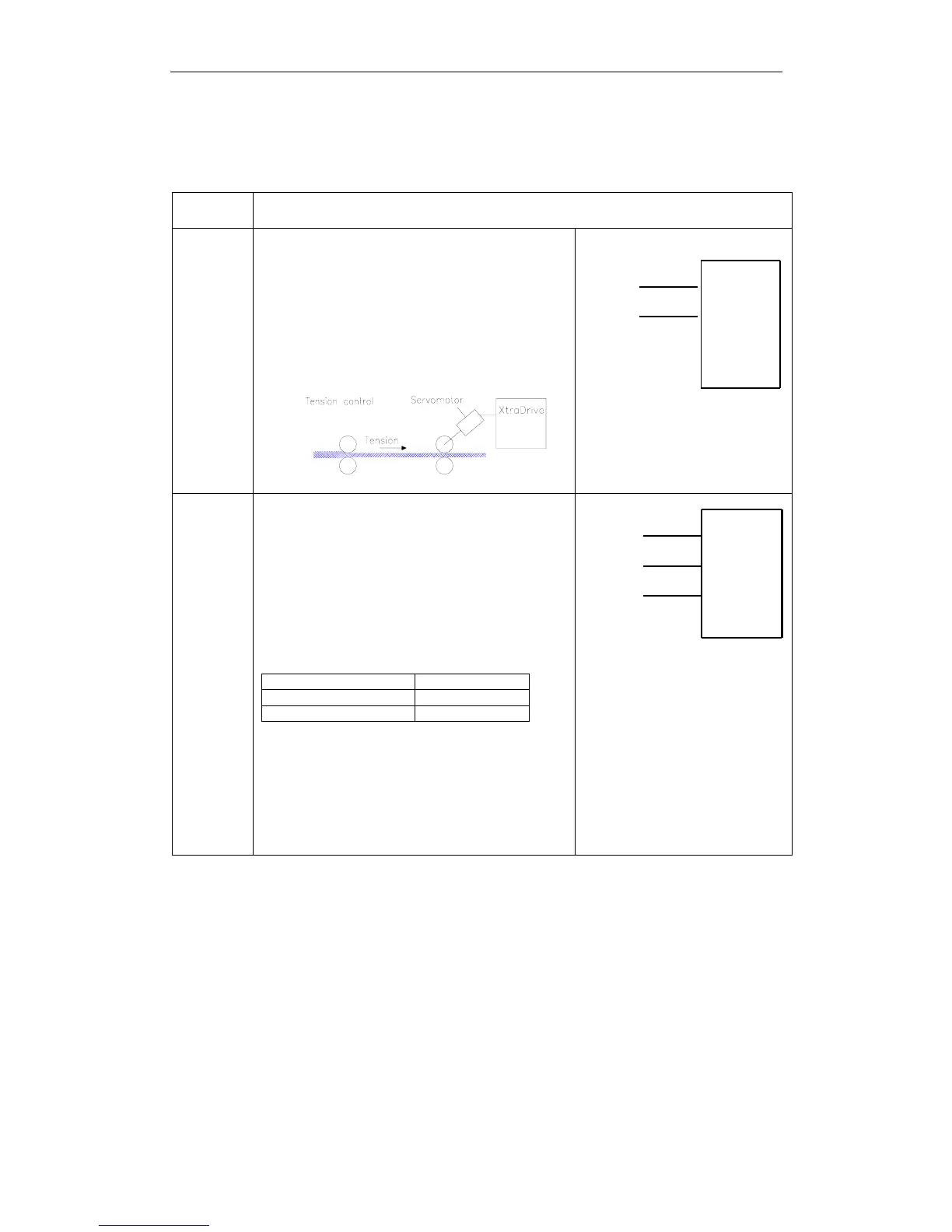

Application Examples
• Tension control
• Pressure control
Pn000.1 Control Mode
2 Torque Control
This is a dedicated Torque Control mode.
• A torque reference is input from T-REF (CN1-
9).
•
Speed reference input V-REF (CN1-5) cannot
be used for speed control if Pn002.1 is set to 1.
•
Parameter Pn407 can be used for maximum
speed control.
Application Example
Servo amplifier
T-REF
V-REF
Cn1-9
Cn1-5
Torque
reference
Speed
Limit
9 Torque Control <-> Speed Control (Analog
Reference)
Switches between torque and speed control
•
V-REF (CN1-5) inputs a speed reference or
speed limit.
•
T-REF (CN1-9) inputs a torque reference,
torque feed-forward reference or torque limit
depending on the control mode.
•
/P-CON (/C-SEL)(CN1-41) is used to switch
between torque and speed control.
CN1-41 State Selects
Open Torque Control
0V Speed Control
Torque Control: When /P-CON (/C-SEL) is OFF
•
The T-REF reference controls torque.
•
V-REF can be used to limit servomotor speed
when Pn002.1 is set to 1. V-REF voltage (+)
limit servomotor speed during forward and
reverse rotation.
•
Parameter Pn407 can be used to limit the
maximum servomotor speed.
S ervo amplifier
V-REF
T-REF
Cn1-5
Cn1-9
Speed
reference
Torque
reference
Speed and
torque
reference
switching
/P-CON
(/C-SEL)
Cn1-41
