XtraDrive User Manual Appendix C: Specifications for Peripheral Devices
C-11

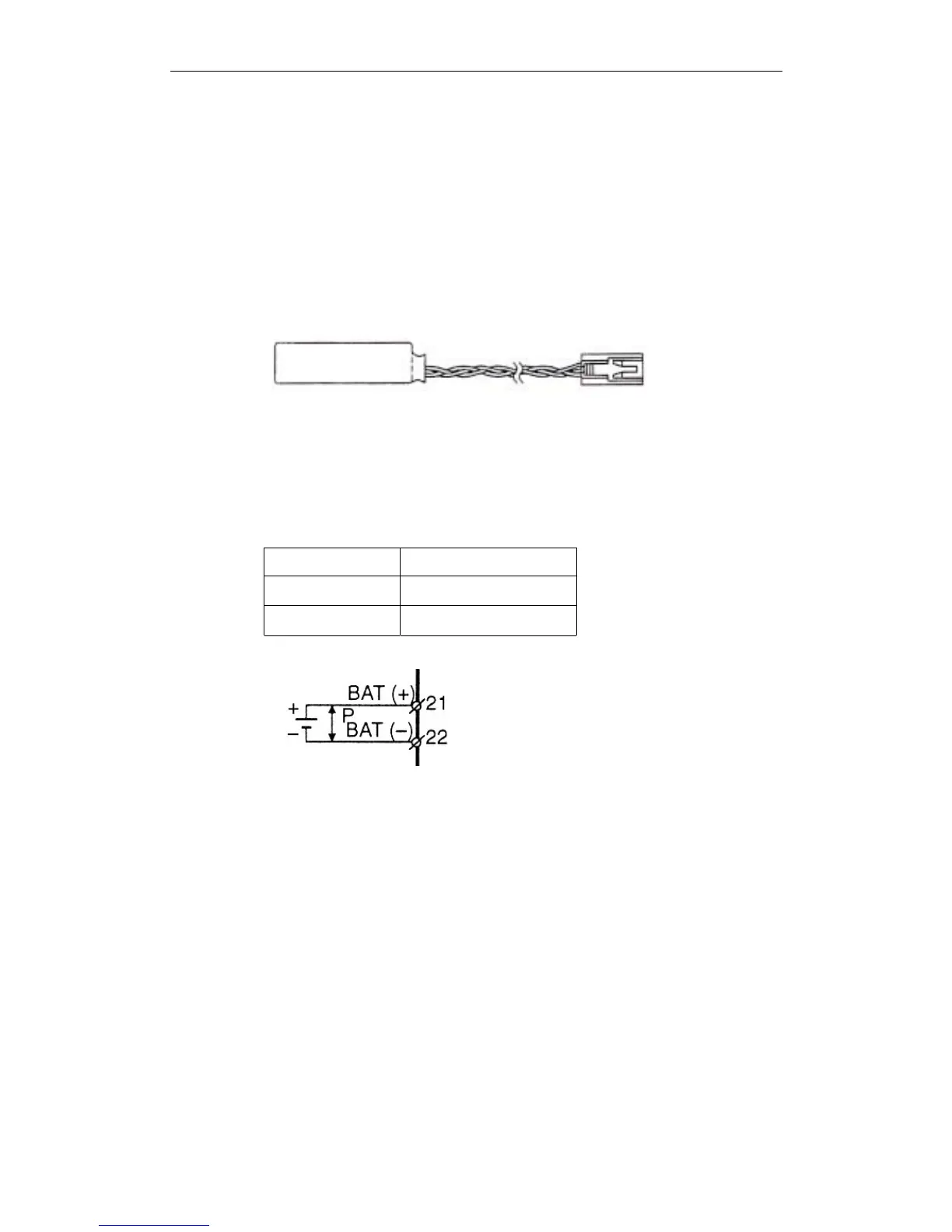

C.10. Absolute Encoder Battery
When the power supply of an absolute encoder is OFF, a data backup battery
is required. Customers can install one of the absolute encoder batteries shown
below.
! Battery Installed at the Absolute Encoder Cable End
Model: ER6V (Lithium battery by Toshiba Battery Co. Ltd)
3.6V 2000 mAh
YET P/N: 704004
! Battery Installed at the XtraDrive End (CN1 Connector)
Connect a lithium battery with following characteristics to XtraDrive
using CN1 connector:
2000 mAh
3.6V
Contact No. Contact Name
21 Battery +
22 Battery –
↕P represents twisted pair.
