7.2.11. Adjusting the Motor Current Detection Offset
Motor current detection offset adjustment is performed at Yaskawa
before shipping. Normally, the user does not need to perform this
adjustment. Make this adjustment only if highly accurate adjustment is
required to reduce torque ripple caused by current offset.
CAUTION
• If this function, particularly manual adjustment, is executed carelessly, it may degrade
the performance of the servo drive.
The following sections describe automatic and manual adjustment of
the current detection offset.
 Automatic Adjustment of the Motor Current Detection
Offset
IMPORTANT
• Automatic adjustment is possible only with power supply to the main circuits ON and
with the servo OFF.
Use the following procedure to perform automatic adjustment of the
current detection offset.

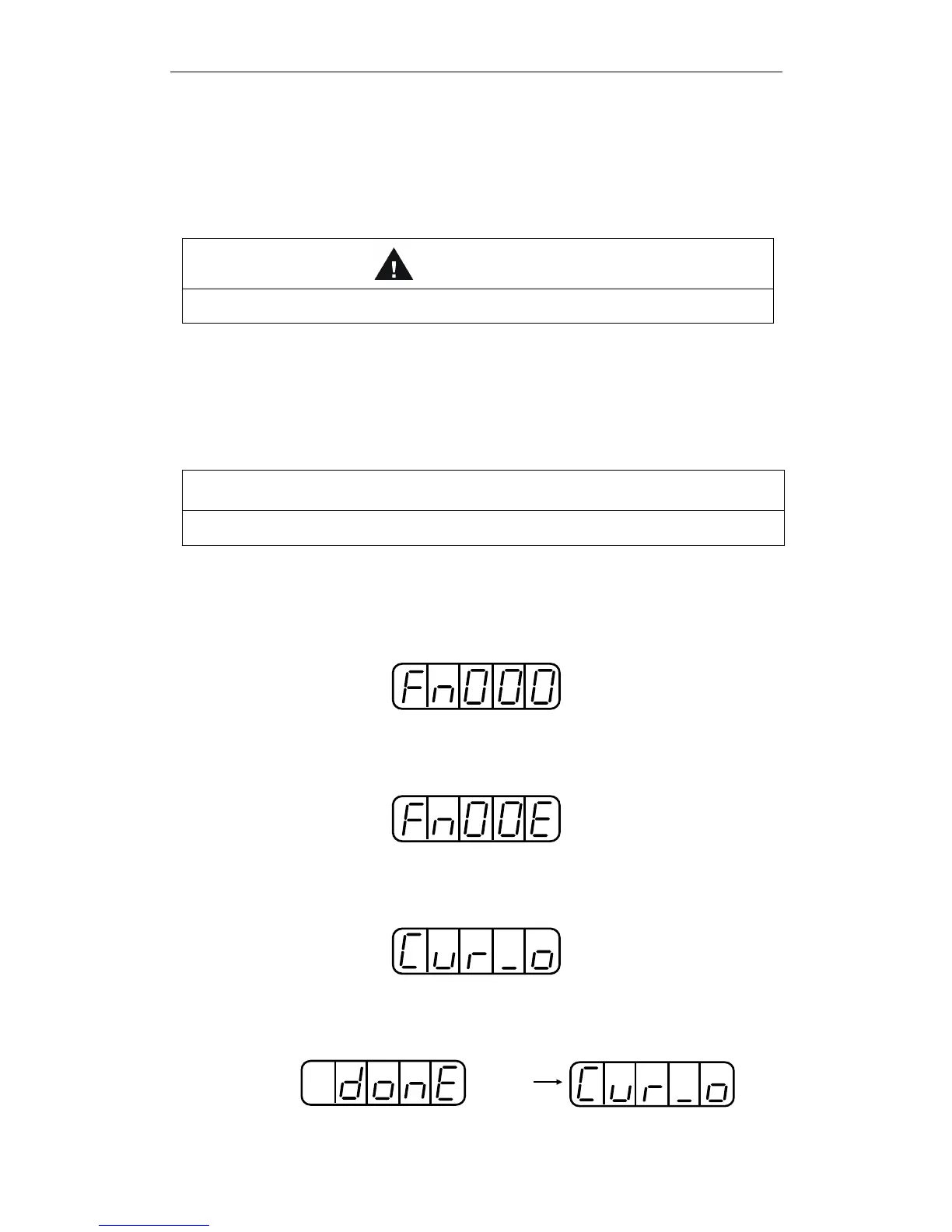

1. Press the MODE/SET key to select the Auxiliary Function mode.
2. Press the Up Arrow or Down Arrow key to select the parameter
Fn00E.
3. Press the DATA/SHIFT key for a minimum of one second, and the
display will be as shown below.
4. Press the MODE/SET key. The display will change as shown
below, and the offset will be automatically adjusted.
Flashing for
one second
