XtraDrive User Manual Appendix C: Specifications for Peripheral Devices
C-12
C.11. Cables for Connecting PC to XtraDrive
C.11.1. RS-232 Communication Cable

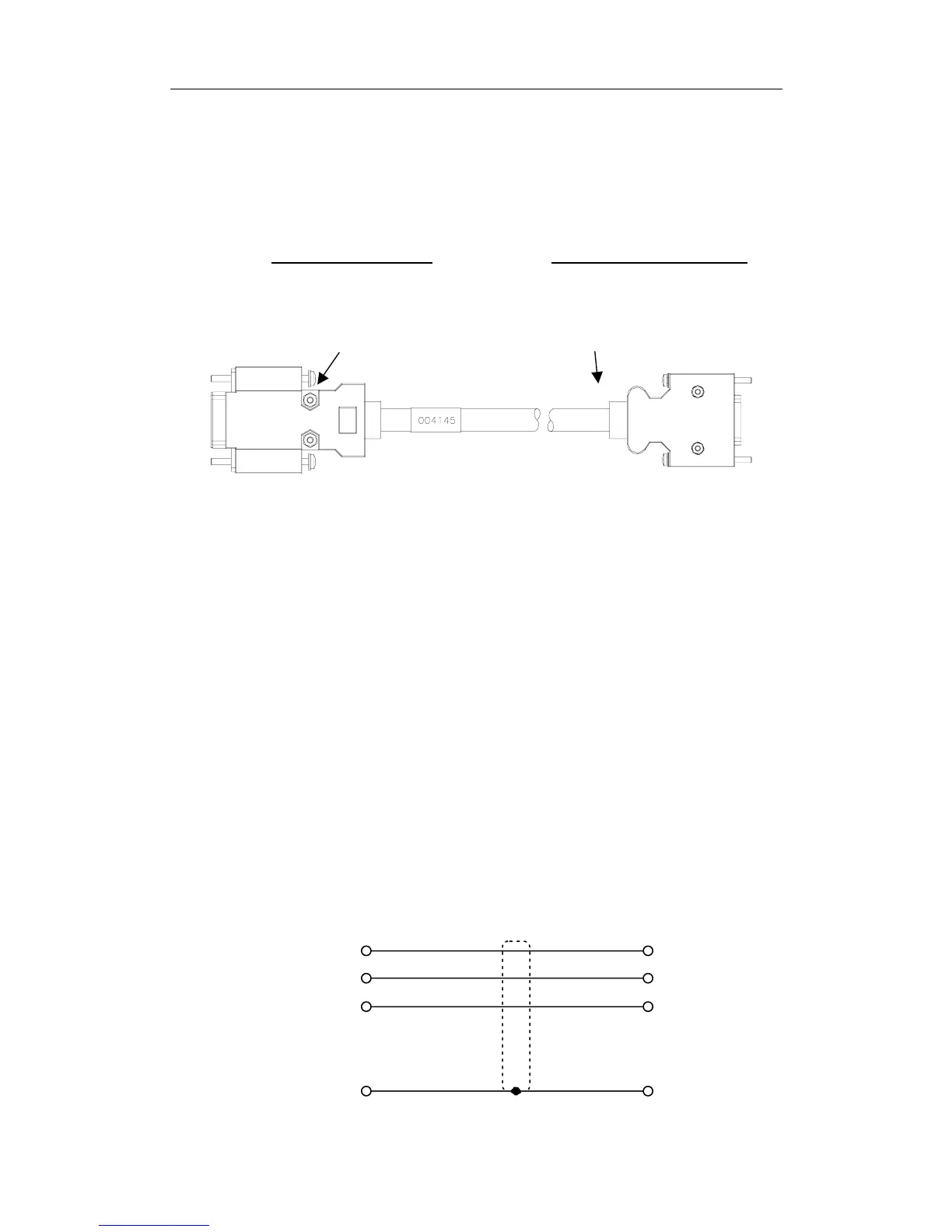

Cable Configuration
D-Sub 9-pin connector Half-pitch 14-pin connector
Plug: 77SDE-09S Plug: 10114-3000VE
Shell: 17JE-09-H1C Shell: 10314-52A0-008
Amphenol Ltd. Sumitomo 3M Ltd.
Communication Specifications
The communication specifications are as follows:
• Baud Rate: up to 19200 bps
• Number of Bits: Start: 1 bit
Data: 7 bits
Stop: 1 bit
Parity: 1 bit (even)
• Synchronization Method: Start-Stop
• XON/XOFF Control: None
• Shift Control: None
• Communication Method: Semi-duplex
Connection Circuits
• With the Standard RS-232C Port
Maximum cable length is 2 m (6.56 ft). In this case, the connection
circuits are follows:
XtraDrive end (14-pin CN3) RS-232C port (9-pin PC end)
/TXD 2
/RXD 4
0V 14
FG Case
3 /RXD
2 /TXD
50V
FG Case
Short by wire jumper 1,7,8
Short by wire jumper 6,4
Shield
Cable model: 004145
To Next Page
