XtraDrive User Manual Chapter 7: Using the Panel Operator
7-11
7. Press the DATA/SHIFT key once more for a minimum of one
second to return to the parameter number display.
This has changed the 1 digit of parameter Pn000 to “1”.
7.1.6. Operation in Monitor Mode
The Monitor mode can be used for monitoring the reference values, I/O
signal status, and servo amplifier internal status.
The Monitor mode can be set during motor operation.
Using the Monitor Mode

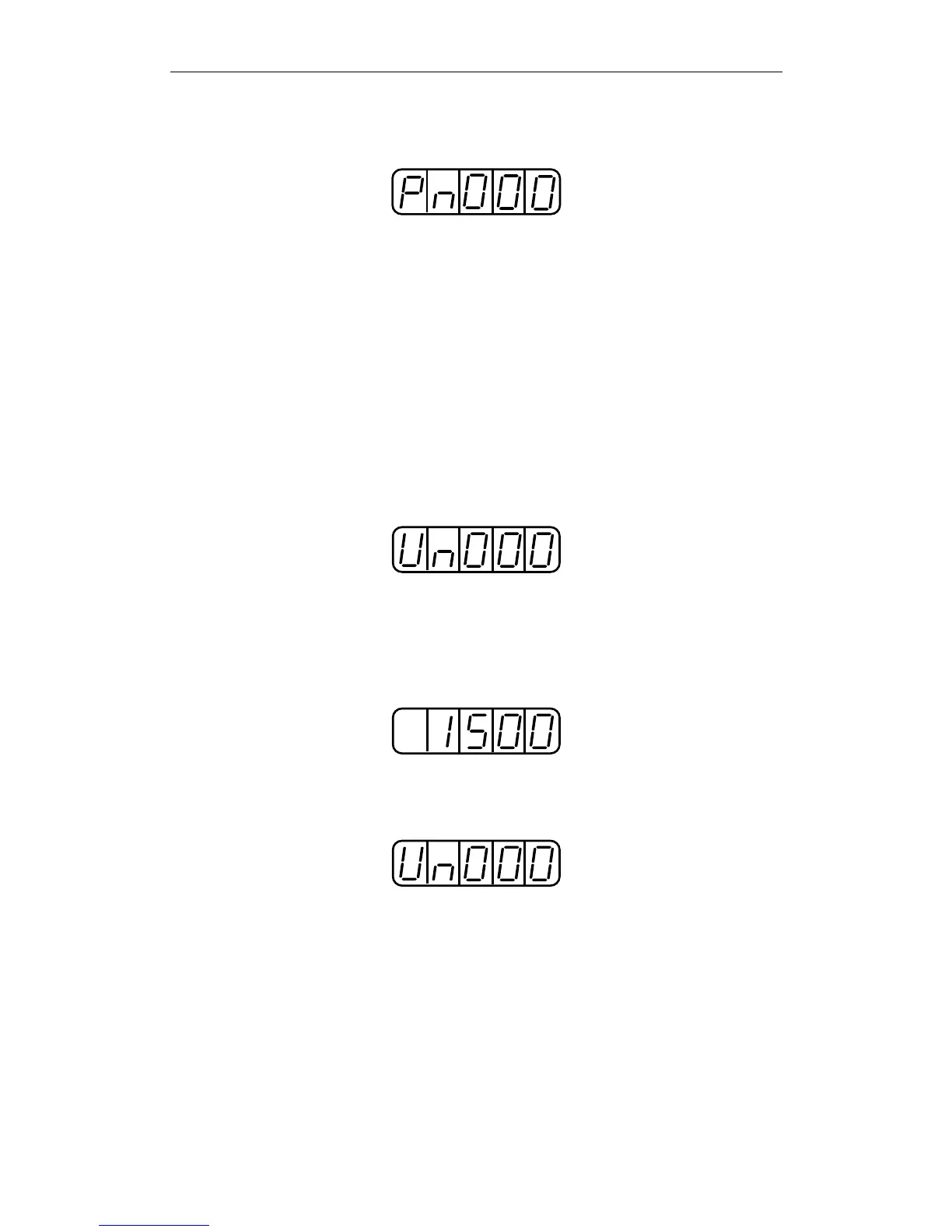

The example below shows how to display 1500; the contents of monitor
number Un000 when the servomotor rotates at 1500rpm.
1. Press the MODE/SET key to select the Monitor mode.
2. Press the Up Arrow or Down Arrow key to select the monitor
number to be displayed.
3. Press the DATA/SHIFT key for a minimum of one second to
display the monitor number selected in step 2 above.
4. Press the DATA/SHIFT key once more for a minimum of one
second to return to the monitor number display.
This has changed the 1 digit of parameter Pn000 to “1”.
This completes the example procedure for displaying 1500; the contents
of monitor number Un000.
