XtraDrive User Manual Chapter 4: Trial Operation
4-3
4.1.1. Step 1: Trial Operation for Servomotor without Load
Caution
• Do not operate the servomotor while it is connected to the equipment.
To prevent accidents, initially perform step 1 where the trial operation is conducted under no-
load conditions (with all couplings and belts disconnected).

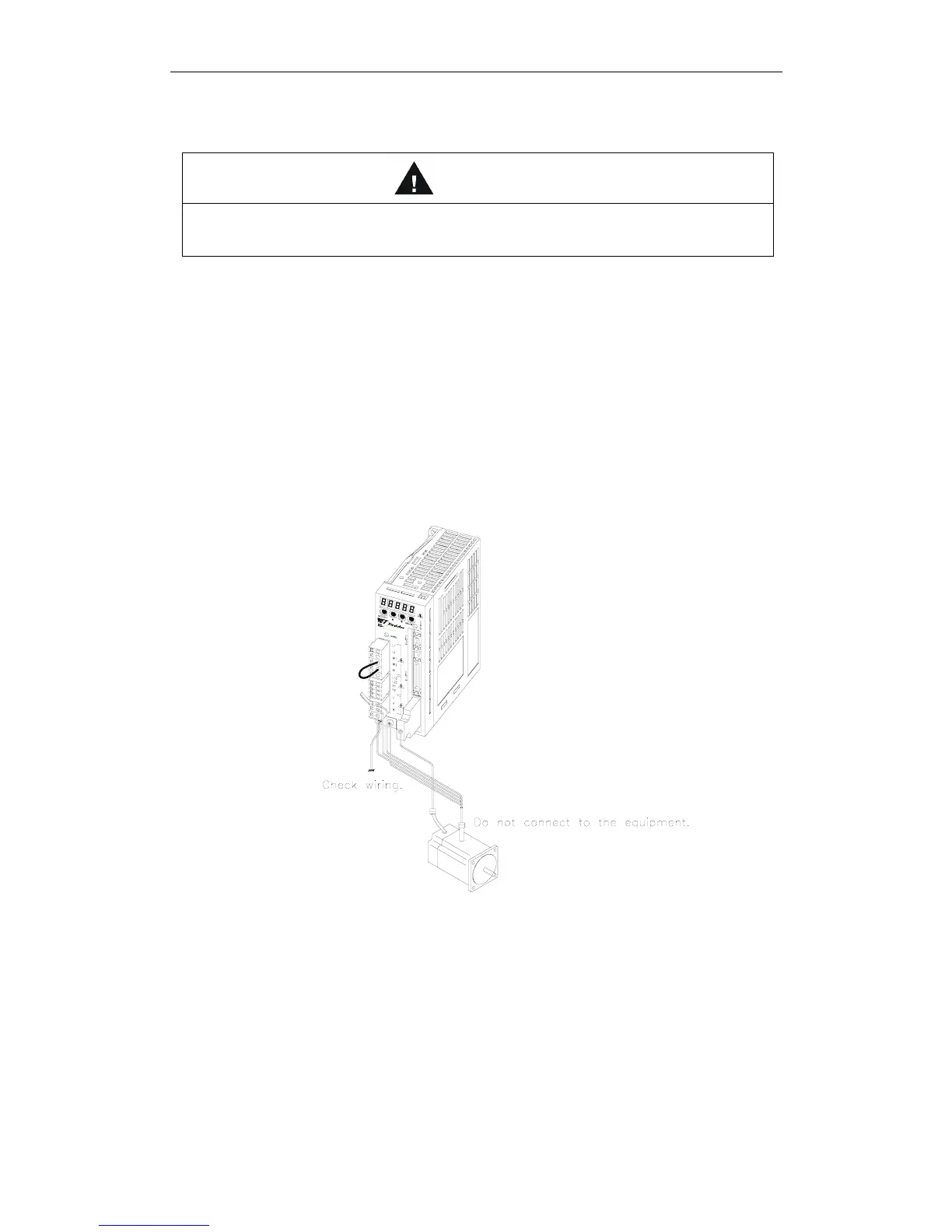

In step 1, make sure that the servomotor is wired properly as shown
below. Incorrect wiring is generally the reason why servomotors fail to
operate properly during trial operation.
• Check main power supply circuit wiring.
• Check servomotor wiring.
• Check CN1 I/O signal wiring.
Make sure the host controller and other adjustments are completed as
much as possible in step 1 (prior to connecting the servomotor to
equipment).
Note: Check the items on the following pages in the order given during the servomotor trial operation.
See 4.2.1 Servomotors with Brakes, if you are using a servomotor with brakes.
