XtraDrive User Manual Chapter 7: Using the Panel Operator

7-26

7.2.6. Checking the Motor Model

Set the parameter Fn011 to select the Motor Model Check mode. This

mode is used for motor maintenance and can also be used to check the

special (Y-specification) codes of the servo amplifiers.

Follow the procedure below to check the motor model.

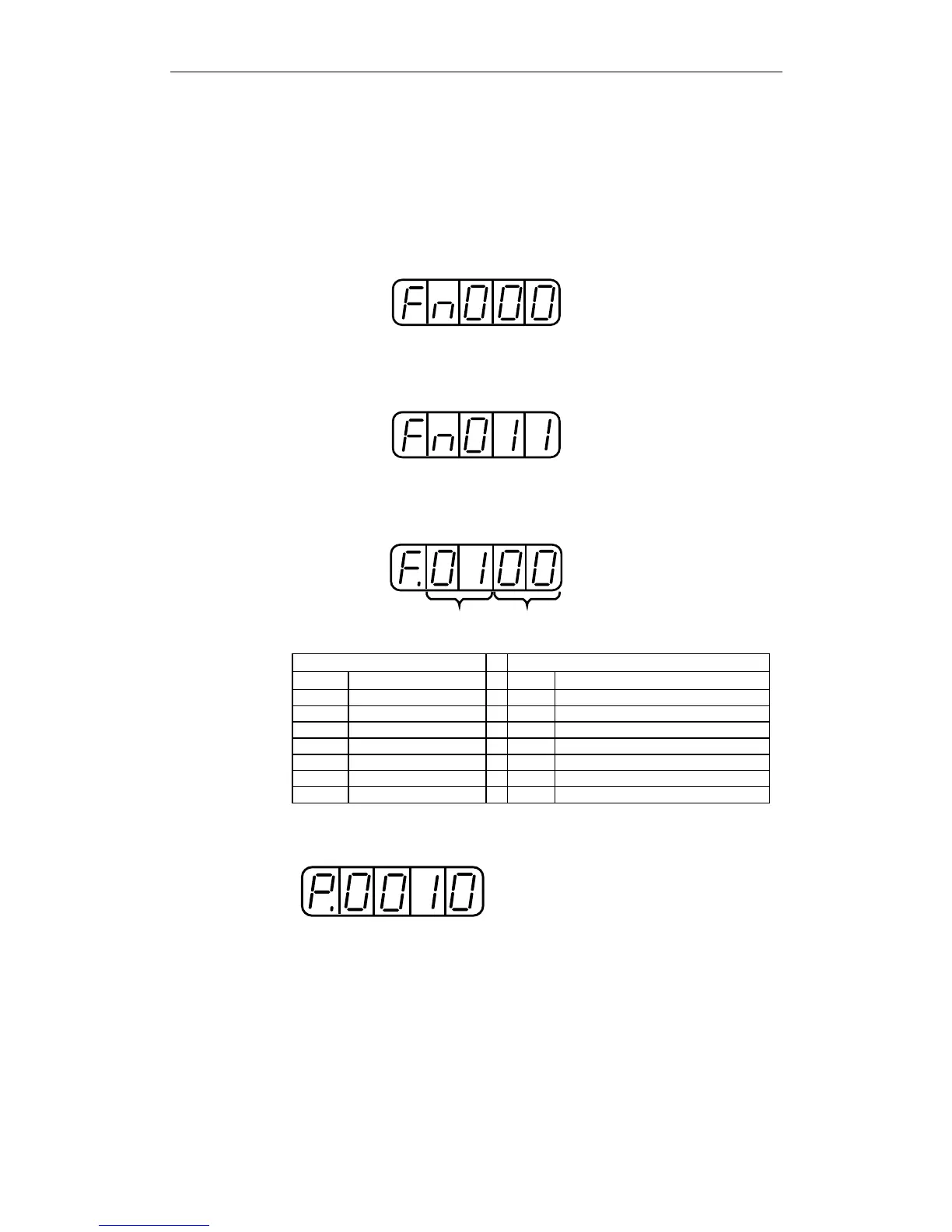

1. Press the MODE/SET key to select the Auxiliary Function mode.

2. Press the Up Arrow or Down Arrow key to select the parameter

Fn011.

3. Press the DATA/SHIFT key for a minimum of one second to

display the servomotor model and voltage code.

Voltage

Model

Voltage Servomotor Model

Code Voltage Code Servomotor Model

00 100V

or 140V

00 SGMAH

01 200V

or 280V

01 SGMPH

02 400V

or 560V

02 SGMSH

03 SGMGH-A (1500rpm)

04 SGMGH-B (1000rpm)

05 SAGMDH

06 SGMUH

4. Press the MODE/SET key to display the Servomotor capacity.

Capacity: Displayed value x10 (W)

In this example, the capacity is 100W.
