XtraDrive User Manual Chapter 5: Parameter Settings and Functions
5-47
The following parameter is used to enable input signal allocation.
Parameter Signal Setting Control Mode
Pn50A.0 Input Signal Allocation Mode Default Setting: 0
Speed/Torque Control,
Position Control
Pn50A.0 Setting Description
0
Default setting for sequence input signal allocation.
1 Enables any sequence input signal settings.
Note: The default setting for parameter Pn50A.0 is 0. Functions and applications in this manual are generally
described for the factory defaults.

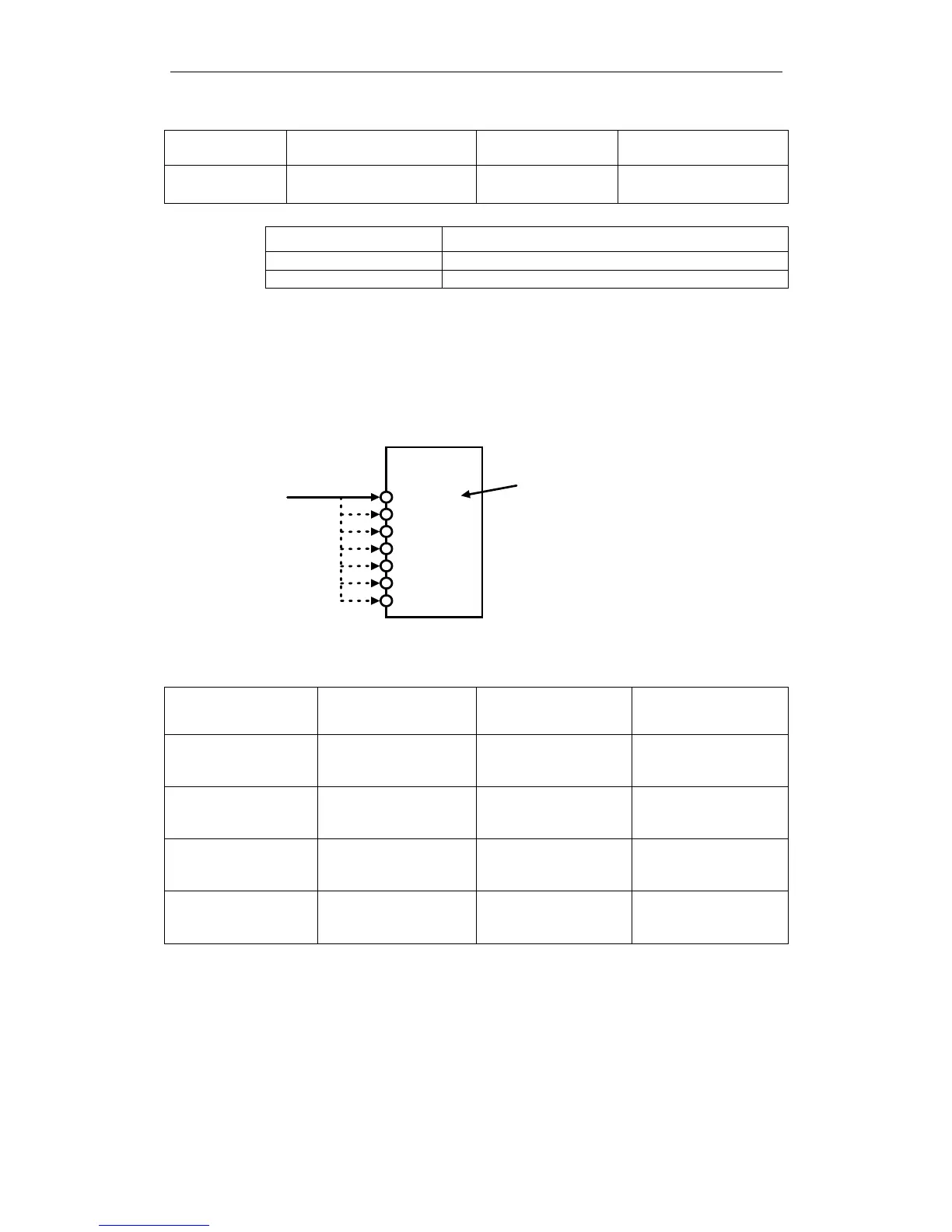

 Input Signal Allocation
The following signal can be allocated when Pn50A.0 is set to 1.
/S-ON
Determines
terminal
allocation
for input
signals.
CN1
Xt r aD ri ve
40 (SI0)
44 (SI4)
45 (SI5)
46 (SI6)
41 (SI1)
42 (SI2)
43 (SI3)
CN1-40 is factory set for
the /S-ON input signal.
Any terminal from CN1-40 to
46 can be allocated to the
/S-ON signal through the
Pn50A.1 setting.
The following table shows the parameter default settings for input
settings 1 to 4.
Parameter Signal Setting Description
Pn50A Input Signal Selection 1 Default Setting: 2100
Speed/Torque Control,
Position Control
Pn50B Input Signal Selection 2 Default Setting: 6543
Speed/Torque Control,
Position Control
Pn50C Input Signal Selection 3 Default Setting: 8888
Speed/Torque Control,
Position Control
Pn50D Input Signal Selection 4 Default Setting: 8888
Speed/Torque Control,
Position Control
Select the input terminal on the CN1 connector that will be used for all
input signals.
