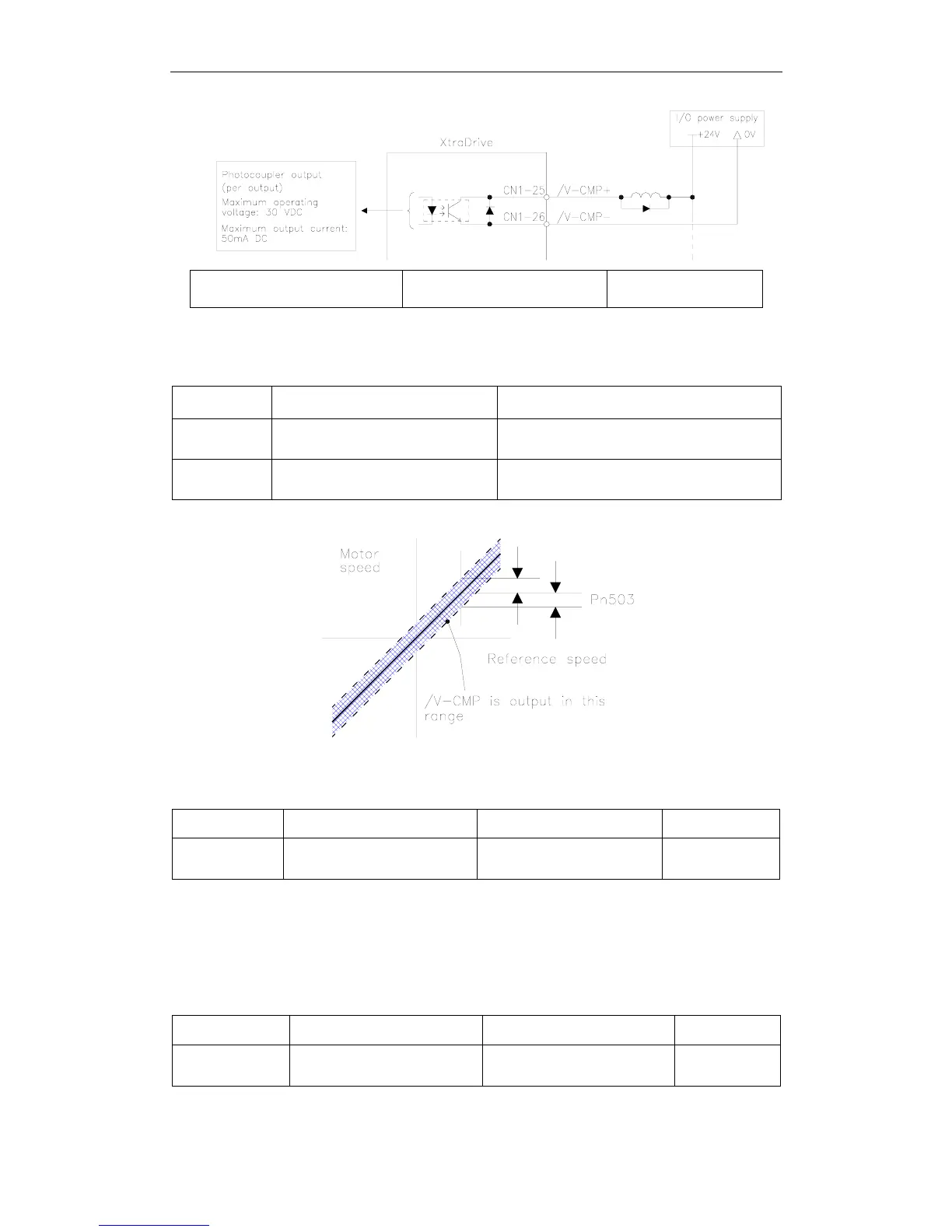

Output  /V-CMP CN1-25
Speed Coincidence Output
Signal
Speed Control
This signal is output when the actual motor speed during speed control
is the same as the speed reference input.
/V-CMP State Status Result
ON
Circuit between CN1-25 and 26 is
closed, and CN1-25 is at low level.
Speed coincides. (Speed error is below the
setting.)
OFF
Circuit between CN1-25 and 26 is
open, and CN1-25 is at high level.
Speed does not coincide. (Speed error is
above the setting.)
The following parameter setting is used to change the CN1 connector
terminal that outputs the /V-CMP signal.
Parameter Signal Setting (rpm) Description
Pn50E Output Signal Selections 1 Default Setting: 3211 Position Control
The parameter is default set so the /V-CMP signal is output between
CN1-25 and 26. See 5.3.4 Output Circuit Signal Allocation for more
details on parameter Pn50E.
The following parameter is used to set conditions for speed coincidence
output.
Parameter Signal Setting (rpm) Description
Pn503
Speed Coincidence Signal
Output Width
Setting Range: 0 to 100
Default Setting: 10
Speed Control
