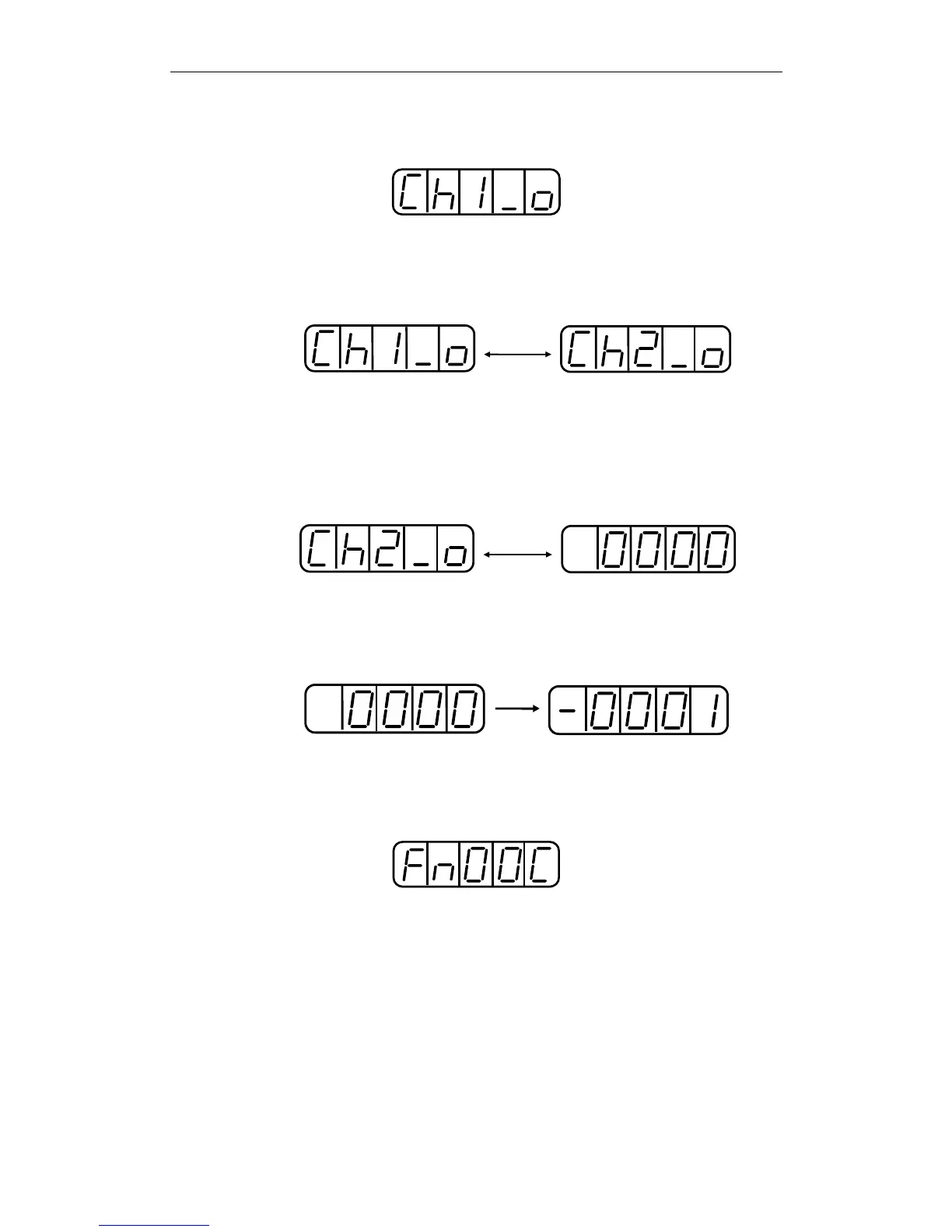

3. Press the DATA/SHIFT key for a minimum of one second, and the
display will be as shown below.
4. Press the MODE/SET key. Each time the MODE/SET key is
pressed, the monitor output will toggle between the displays for the
two channels shown below.
MODE/SET key
Displayed
alternately
5. Press the DATA/SHIFT key for less than one second, and the
analog monitor gain parameter will be displayed. Pressing the
DATA/SHIFT key again for less than one second will return to the
display shown in steps 3 or 4 above.
MODE/SET key
Displayed
alternately
Data display
6. Press the Up Arrow or Down Arrow key to perform zero
adjustment of the analog monitor output.
Data setting change
7. When zero adjustment has been completed for the two channels,
press the
DATA/SHIFT key for a minimum of one second to return
to the Auxiliary Function mode display.
This completes the manual zero adjustment of the analog monitor
output.
