• Select the VF examination - the operator can change the VF exam displayed by choosing
from available examinations.
• Sensitivity map from examinations 24-2, 30-2 or 10-2
• Total Deviation map and Pattern Deviation map – probability graphs for VF results
• VF parameters – reliability and global indices for VF results
• Retina/Disc thickness map - a map to overlie the fundus reconstruction can be selected
from the list box:
o NFL+GCL+IPL thickness
o GCL+IPL thickness
o NFL thickness
• To change the transparency level, turn the mouse wheel over the object.
• Retina/Disc deviation map - a map to overlie the fundus reconstruction can be selected
from the list box:
o NFL+GCL+IPL signification
o NFL+GCL+IPL deviation
• Key for VF information on the OCT map
• VF Locations / Results - Right click on any of the above maps to view the context menu
from which VF locations and/or VF results display can be enabled. See more in chapters
Select the VF examination
Key for VF results
Combined map of
Structure
& Function
ONH table
NFL parameters
Symmetry NFL
profile
VF testing range
and examination
date
Sensitivity map
Total Deviation map
Pattern Deviation map
VF parameters
Retina thickness map
Disc thickness map
Retina deviation map
Disc deviation map

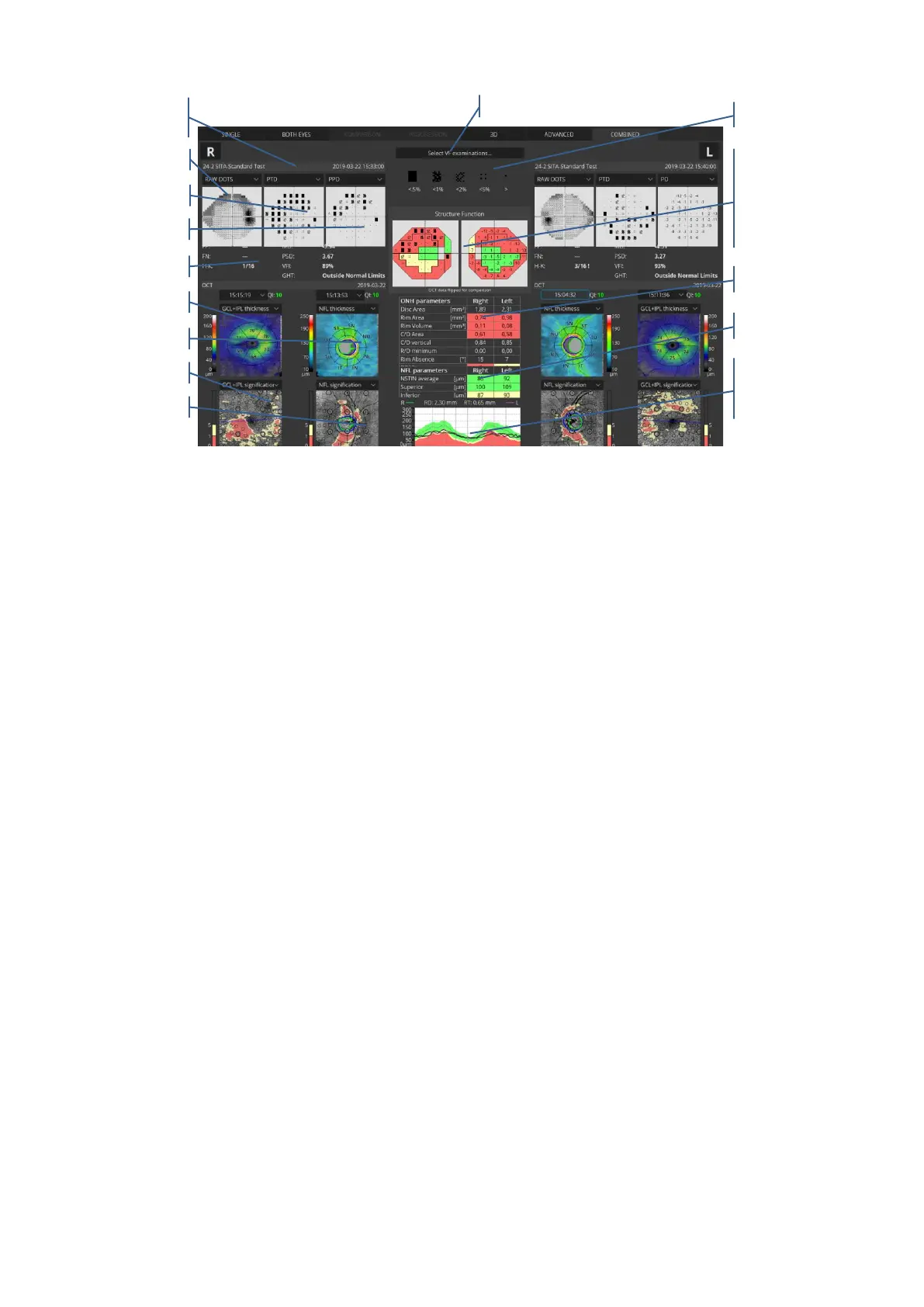

Figure 106 Combined View Structure & Function
