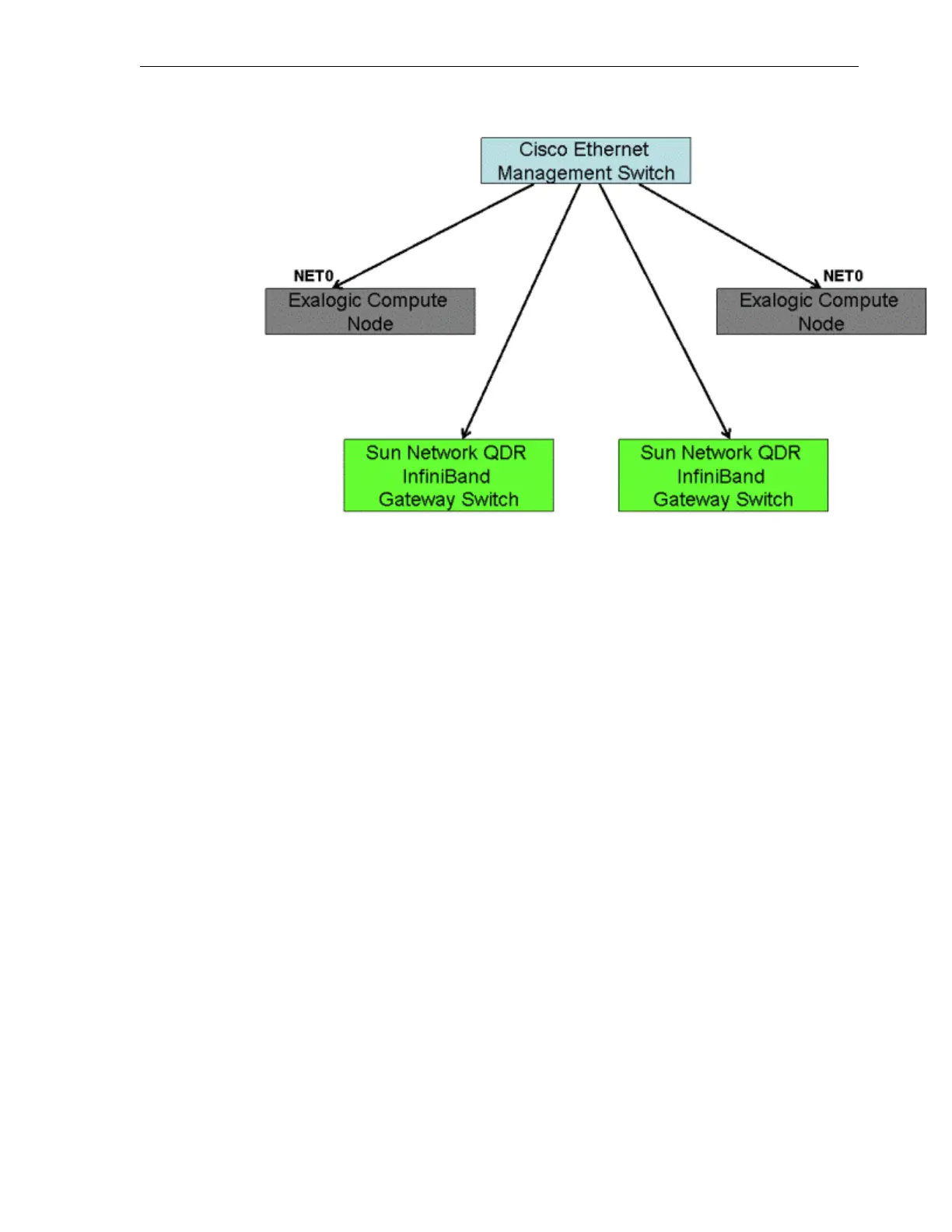

Figure 7-1 Management Network in Exalogic Machine
Figure 7-1 shows two compute nodes and two Sun Network QDR InfiniBand Gateway
Switches as an example only. The number of compute nodes and gateway switches
depends on your purchased Exalogic machine rack configuration. The Cisco Ethernet
management switch is connected to the NET0 port of compute nodes, and it is
connected to the InfiniBand gateway switches.
7.4 ILOM IP Addresses for Exalogic Machine Components
ILOM IP addresses are assigned to Exalogic machine components at the time of
manufacturing. For a list of default ILOM IP addresses, see Default IP Addresses and
Ports.
However, you can reconfigure the IP addresses by using the Oracle Exalogic
Configuration Utility. The Oracle Exalogic Configuration Utility and
its associated scripts reconfigure ILOM IP addresses based on the input you provide to
the Exalogic Configurator spreadsheet.
If the Exalogic Configuration Utility fails to reconfigure IP addresses or
misconfigures IP addresses, you can configure IP addresses manually, as described in
Configure ILOM IP Addresses Manually.
7.5 Connect to ILOM via the Network
Under normal circumstances, you can access ILOM via the network. You can use the
Ethernet connection method to connect to the ILOM. You must know the ILOM's
Ethernet address. For the default IP addresses assigned at the time of manufacturing,
see Default IP Addresses and Ports. You can use either the CLI or the web interface to
access ILOM. Alternatively, you can launch a remote KVM session to access ILOM.
ILOM IP Addresses for Exalogic Machine Components
Set Up ILOM on the Compute Nodes 7-3
