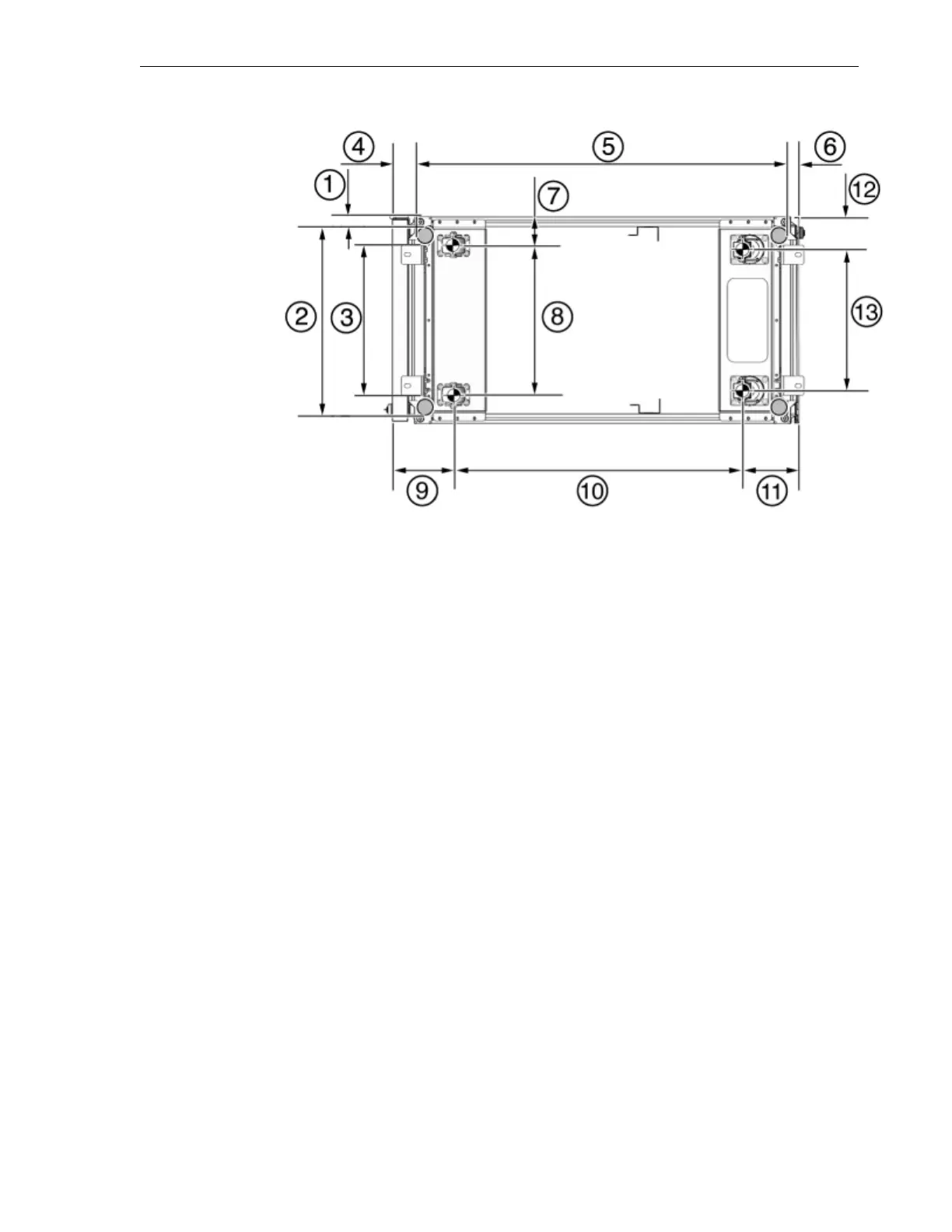

Figure 3-2 Location of Leveling Feet on Exalogic Machine
• 1: Distance from the edge of the mounting feet to the side of the rack is 33.75
mm (1.33 inches)
• 2: Width from the outside edges of the leveling feet is 532.5 mm (20.96 inches)
• 3: Width from the inside edges of the leveling feet is 429 mm (16.89 inches)
• 4: Distance from the edge of the feet to the front rack surface is 73.75 m (2.90
inches)
• 5: Depth of the outside edges of the leveling feet is 1058.5 mm (41.67 inches)
• 6: Distance from the edge of the leveling feet to the rear rack surface is 32.5 mm
(1.28 inches)
• 7: Distance from the center of front casters to the side of the rack is 86.7 mm
(3.41 inches)
• 8: Width between the center of the front casters is 426.6 mm (16.80 inches)
• 9: Distance from the center of the rear casters to the rear of the rack is 173.7 mm
(6.83 inches)
• 10: Depth between the front and rear casters is 828.6 mm (32.62 inches)
• 11: Distance between the rear casters and the rear of the rack is 162.4 mm (6.39
inches)
• 12: Distance from the center of rear casters to the side of the rack is 96.4 mm
(3.80 inches)
• 13: Width between the center of the rear casters is 407.2 mm (16.03 inches)
