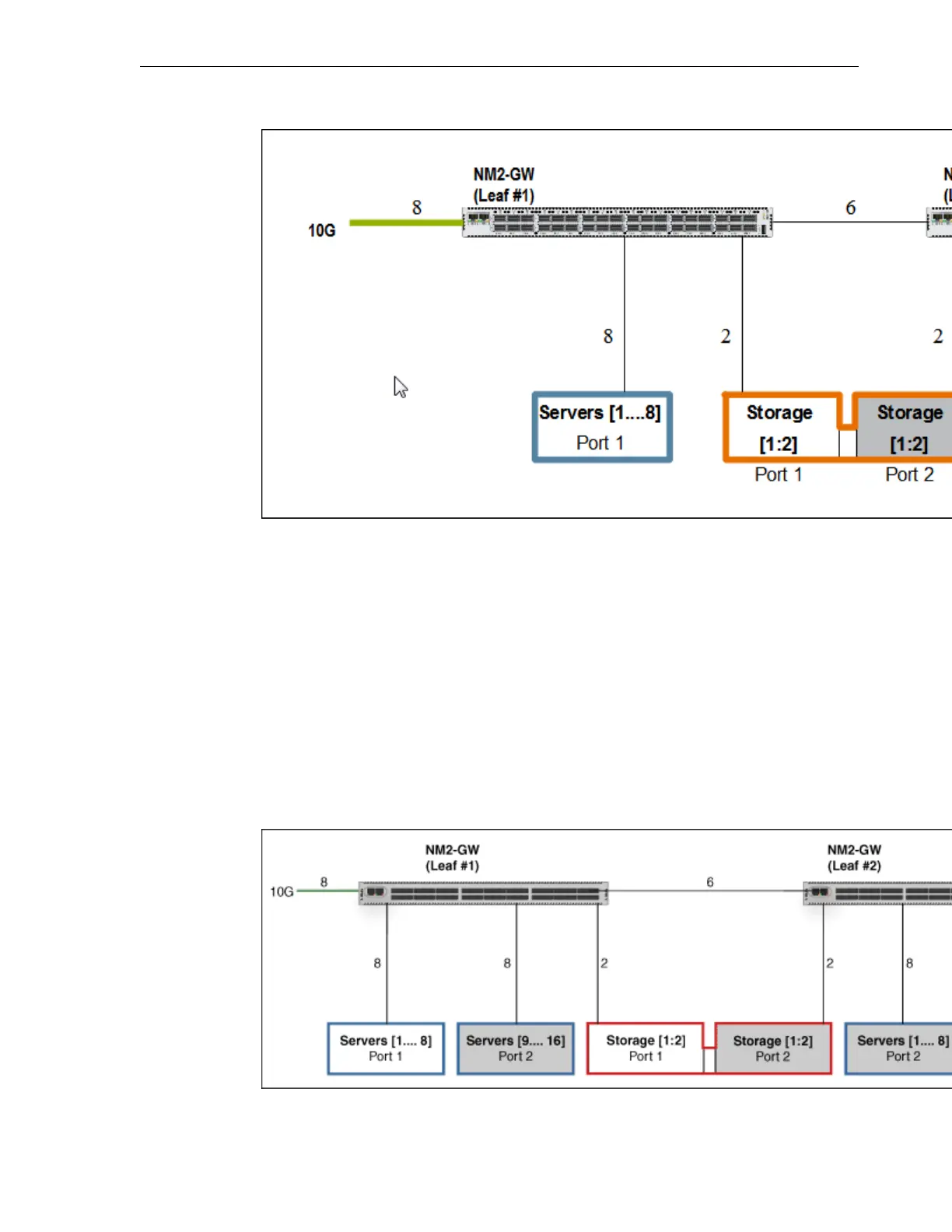

Figure C-2 Exalogic Quarter Rack Network Connectivity
In Figure C-2, NM2-GW represents a Sun Network QDR InfiniBand Gateway Switch
(leaf switches). Servers refers to compute nodes in the Exalogic machine. Half of the
compute nodes are connected with their active ports to the first gateway switch and
their passive ports to the second gateway switch. The remaining half of the compute
nodes are connected with their active ports to the second gateway switch and their
passive ports to the first gateway switch. This connection is for high availability and
load distribution purposes.
Exalogic machine quarter racks do not contain the Sun Datacenter InfiniBand Switch
36.
C.3 Exalogic Half Rack
Figure C-3 illustrates the cabling for a single Exalogic half rack.
Figure C-3 Exalogic Half Rack Network Connectivity
Exalogic Half Rack
Cabling Diagrams C-3
