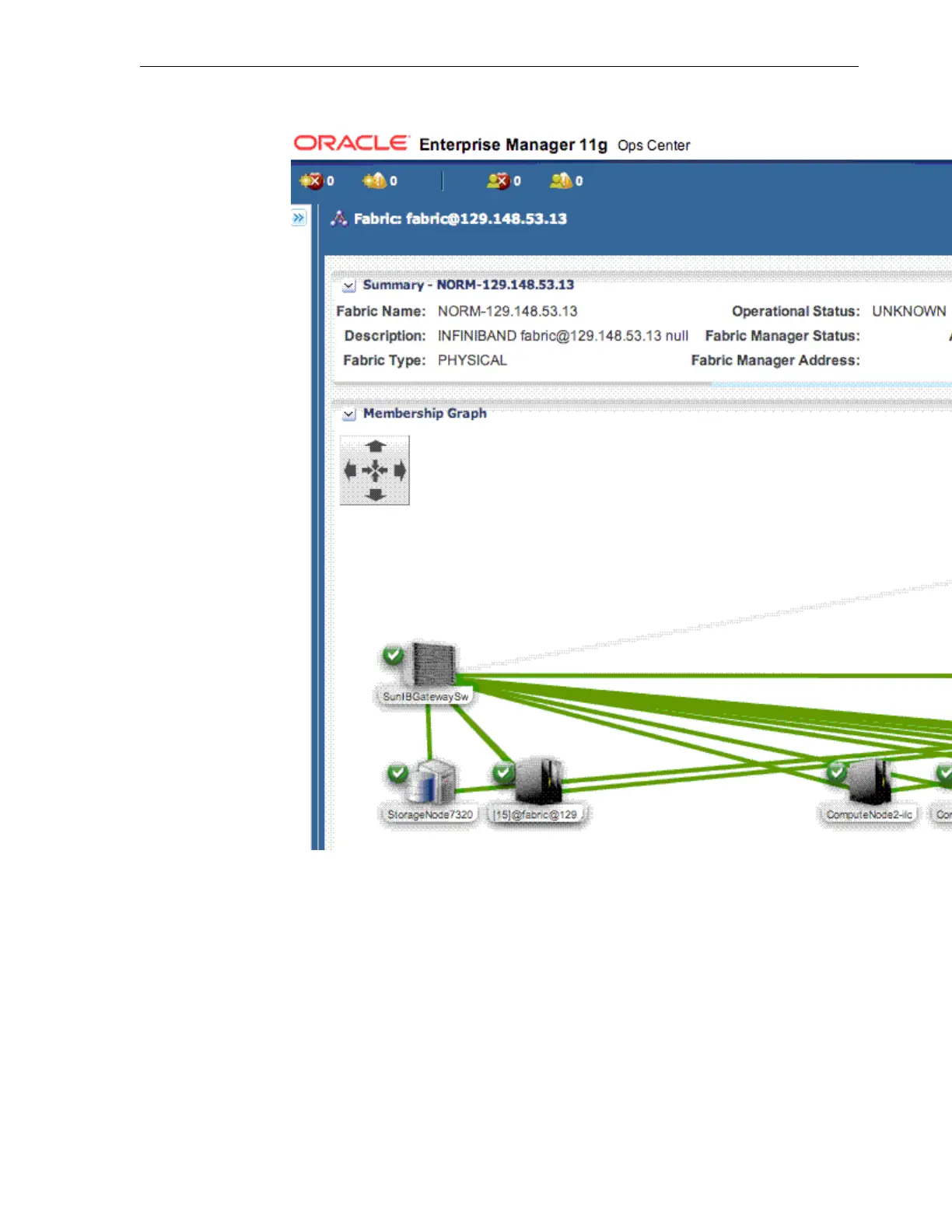

Figure 17-17 Fabric View
When you collapse this fabric string, you will see compute nodes, gateway
switches, and the storage appliance. You can select each of them to view
information about a particular fabric node.
2.
In the navigation pane, click a compute node under the ComputeNodes sub-
group under the fabric. Information about that particular fabric node.
3.
From this view, you can view detailed information about the fabric node, such as
Summary, Hardware, Capabilities, Connectivity, Problems, Monitoring, Port
Monitoring, Console, Jobs, Configuration, Charts, and Service Requests.
4.
Similarly, on the left navigation pane, under the fabric drop-down list, click a
gateway switch. Information about the switch as a fabric node is shown, as shown
in Figure 17-18.
Viewing the InfiniBand Fabric and Its Nodes
Monitoring the Exalogic Machine Using Oracle Enterprise Manager Ops Center 17-25
