Panasonic FP7 User Manual

11.1 Setting and Operation of Pulser Operation
11-3
 Settings
Parameters required for the pulser operation of the positioning unit is set in the positioning
setting menu of the programming tool.
Items Setting example Settable range
Operation setting code 0: Pulser 1
0: Pulser 1
1: Pulser 2
2: Pulser 3
3: Pulser 4
Pulser operation ratio numerator 2 1 to 32,767
Pulser operation ratio denominator 1 1 to 32,767
Pulser operation method
2: Speed limits
(truncated)
0: Standard operation 1: Speed limits (pulse hold)
2: Speed limits (truncated)
Pulser operation max. speed 500 Pulse: 1 to 32,767,000 pps

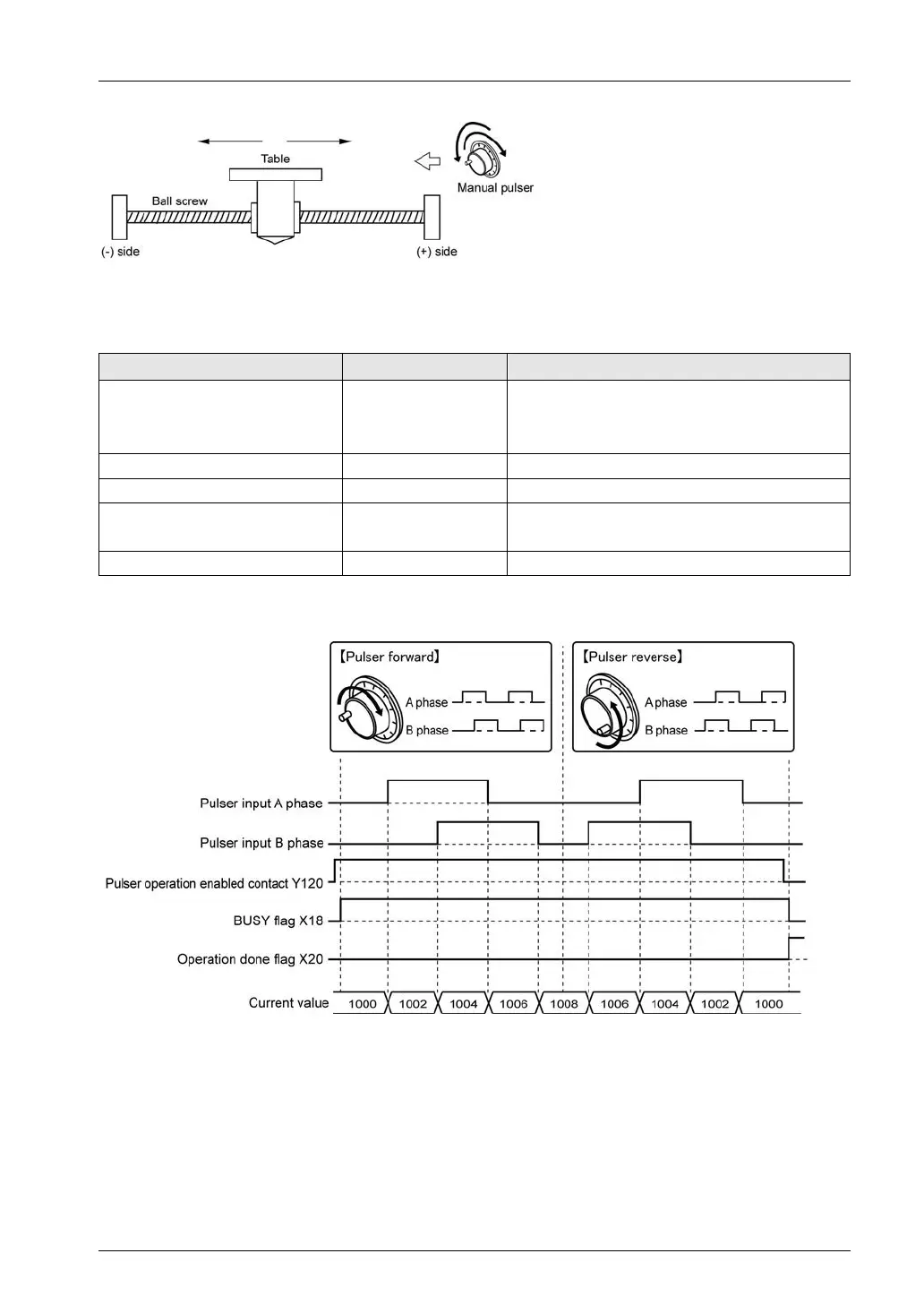

 Operation diagram
 Operation of each contact
• The BUSY flag (X118) indicating the state that a motor is running will turn ON when the
pulser operation permit contact turns ON and will turn OFF when the contact turns OFF.
• The operation done flag (X120) indicating the state of operation completion will turn ON
when the pulser operation permit contact is turned OFF and the flag will be maintained until
the next positioning control, JOG operation, home return, or pulser operation starts.
