LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Boardstack (continued)
Boardstack Installation
(continued)
.
9. Connect the 10-pin therapy connector to the A04 Therapy PCB at J14.
10. Connect the W09 26-Pin Power Cable to the A04 Therapy PCB at J16.
11. Seat the boardstack assembly into the bottom case.
Note: Ensure that the W01 Therapy Connector Assembly slides into the slot
in the A04 Therapy PCB.

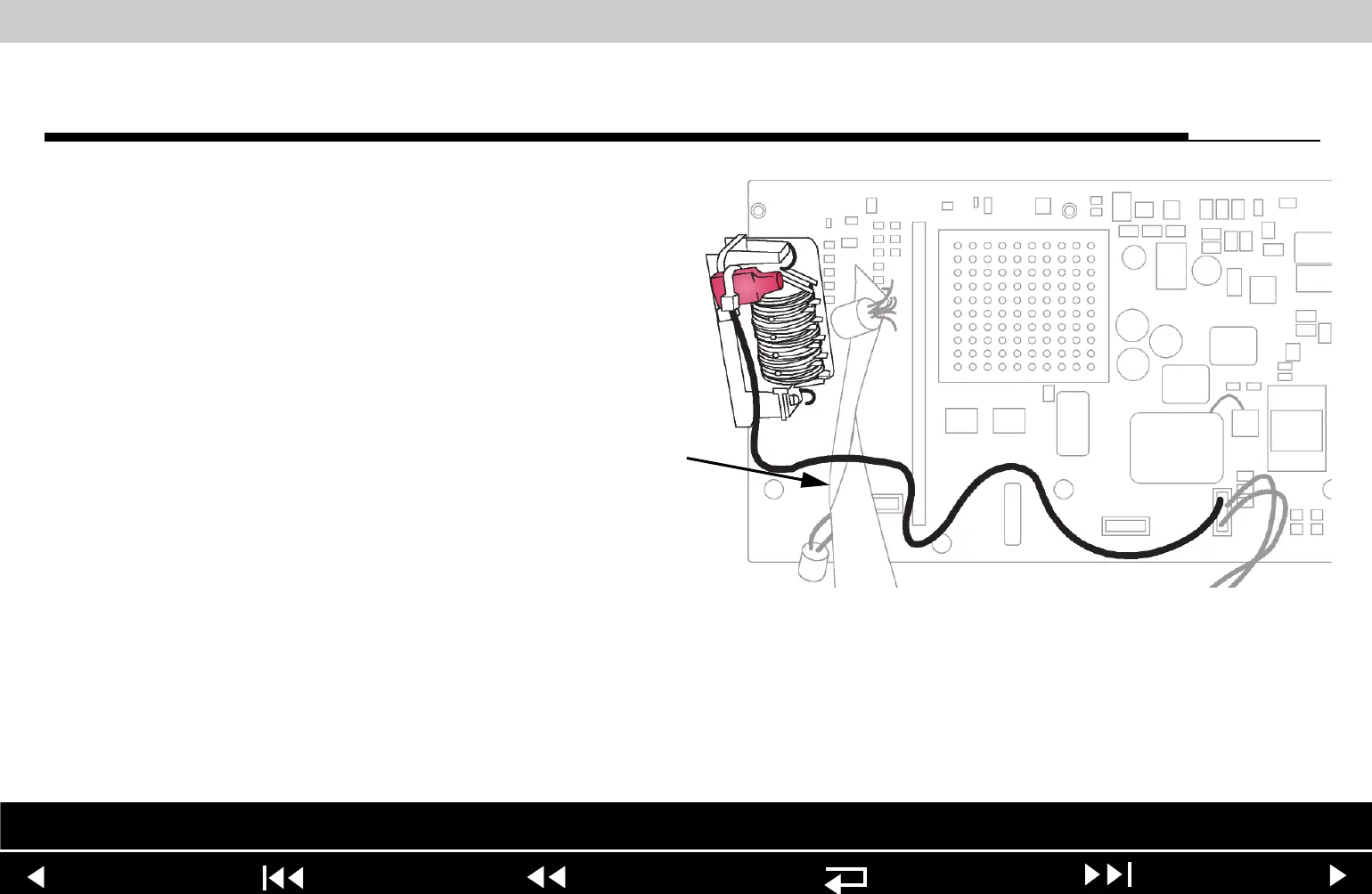

Capacitor discharge cable
passes under the
W01 Therapy Cable and
wraps around the
J13 connector.
Position the therapy cable
ferrites so that they will not
damage the J13 connector
(Continued on next page)
