3.59
ENGINE / COOLING
3
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

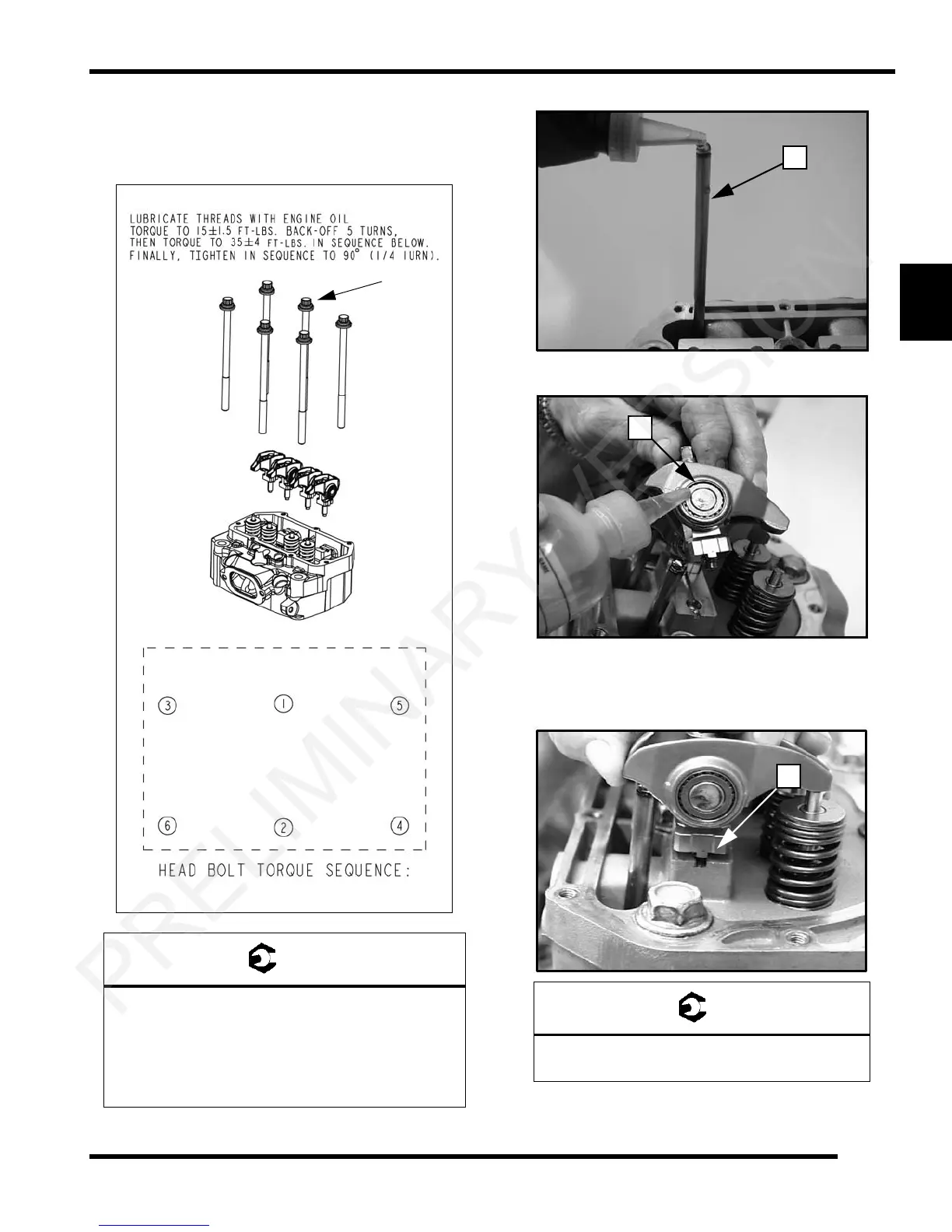

2. Install cylinder head on cylinder.
3. Lubricate threads, top of washers and underside of
b
olt head with engine oil. Install head bolts (C) and
torque ication in sequence.
4. Lubricate push rods (D) and install
into lifters.
5. Lubricate rockers (E) with engine oil.
6. Verify pushrods are engaged in lifters.
7. Install rockers. Be sure that tab
of fulcrum (F) is seated
in head stand-off. Torque bolts to specification.
Head Bolts:
1) Torque to 15 1.5 ft-lbs in sequence
2) Back off all head bolts 5 turns in sequence
3) Torque to 35 4 ft-lbs in sequence
4) Tighten all head bolts in sequence another 90
or (1/4 turn)
Rocker Arm Bolt:
22 2 ft-lbs (30 3 Nm)
