Transmission (Gear Position) Switch
1. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.

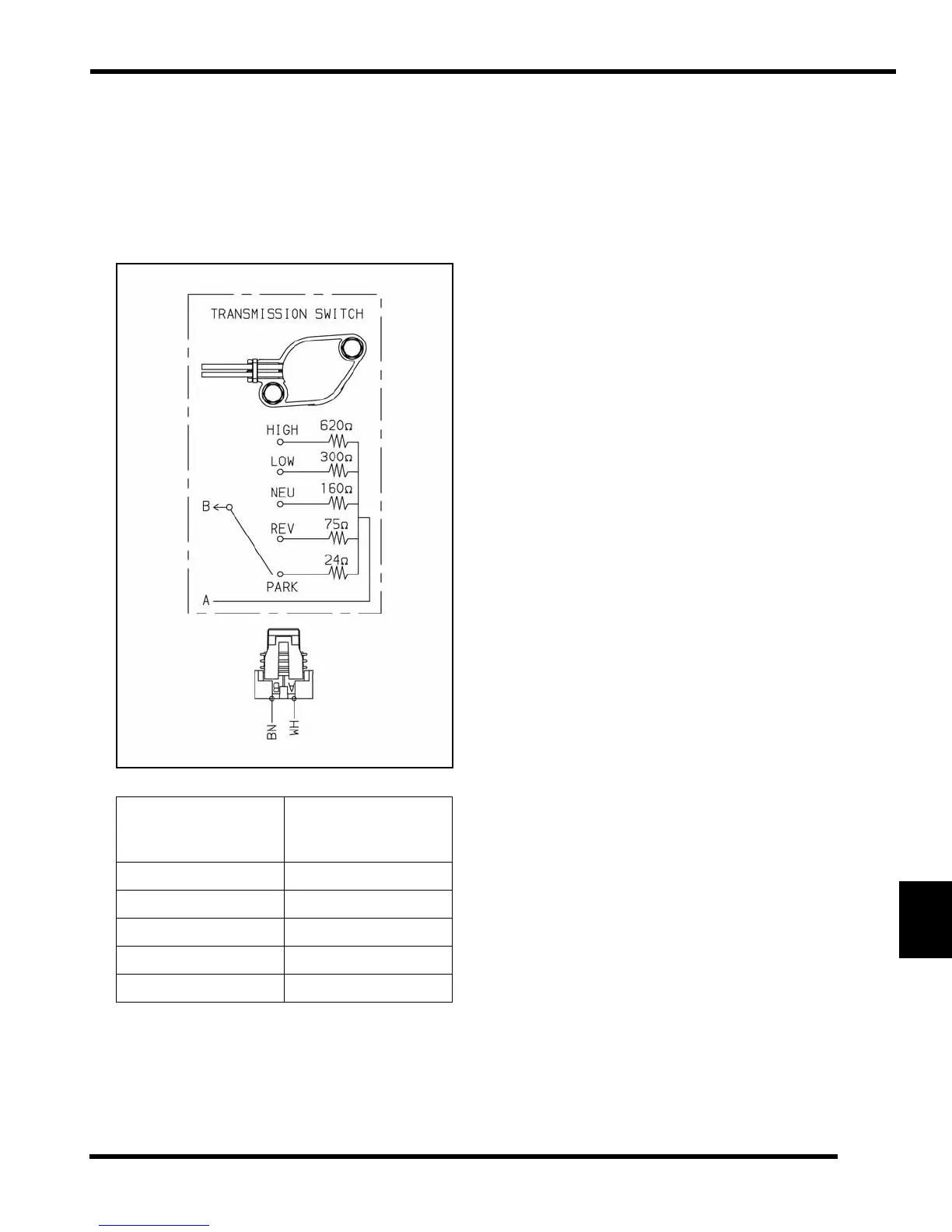

2. Test the transmission switch continuity readings for
each gear position and compare to the specification
table below.
Gear Position
Resistance Value
when measured at
terminals A and B
HIGH 620
LOW 300
NEU 160
REV 75
PARK 24
