Polaris 2013 RANGER RZR S User Manual

5.27
BODY / STEERING / SUSPENSION
5
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
Steering Shaft Bearing Replacement
IMPORTANT: Replacement pivot tube assembly
comes with new upper and lower bearings installed.
Use this procedure if replacing the bearings only.
1. Perform the “Steering Shaft Removal” procedure.
2. Remove the steering wheel cap and retaining nut.
3. Press steering shaft out of the steering wheel and
p
ivot tube.
4. Note the order and location of the washers and
sp
acers between the steering wheel and pivot tube.
5. Drive the bearings out of the pivot tube using a drift
p
unch.
6. Inspect the pivot tube bearing surfaces for signs of
ex
cessive wear or damage.
7. Apply Loctite
®
271
™
(Red) to the outer circumference
of the new lower bearing race. Slide the new lower
bearing onto the steering shaft and install the steering
shaft through the pivot tube.
NOTE: Use care not to allow any of the Loctite
®
to
get in the bearing.
NOTE: Be sure the lower washers and spacers are
s
till on the steering shaft.
8. Apply Loctite
®
271
™
(Red) to the outer circumference
of the new upper bearing race. Slide the new upper
bearing onto the steering shaft and press it into the
pivot tube by hand.
NOTE: Use care not to allow any of the Loctite
®
to
get in the bearing.
NOTE: Bearings will be seated in the pivot housing
upon t
ightening the steering wheel nut in step 14.
9. Reinstall the upper washers and spacers in the order
i
n which they were removed.
10. Install the steering wheel and hand tighten the nut.
11. Reinstall the steering shaft assembly in the vehicle.
In
stall the lower portion of the steering shaft onto the
steering gear box assembly. Refer to “Steering Shaft
Removal (Non-EPS Models)”. Torque the lower pinch
bolt to specification.
12. Install the (2) fasteners that
retain the pivot tube. Refer
to “Steering Shaft Removal (Non-EPS Models)”.
Torque fasteners to specification.
13. Install the fastener retaining the upper portion of the
steering wheel tilt shock to the pivot tube. Refer t
o
“Steering Shaft Removal (Non-EPS Models)”. Torque
fastener to specification.
14. Be sure the front wheels are facing straight forward.
Re
move the steering wheel and align as needed.
Torque the steering wheel nut to specification.
15. Wipe the pivot tube clean of any excess Loctite
®.
16. Install steering wheel cap and field test steering
operation.

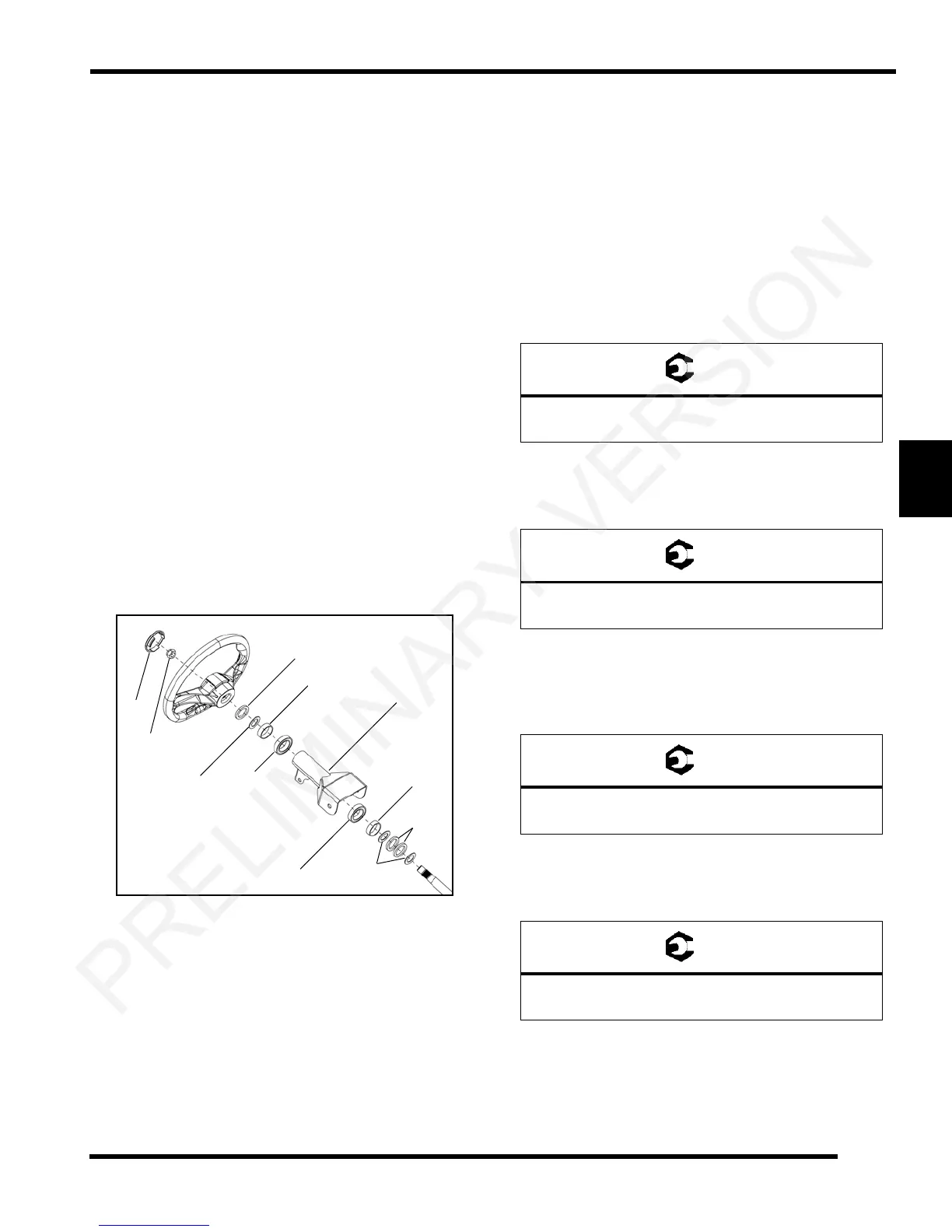

Spacer
Thin
Washer
Thick
Washer
Bearing
Cap
Nut
Pivot Tube
Bearing
Spacer
Thin
Washers
Thick
Washers
= T
Lower Pinch Bolt:
30 ft-lbs (41 Nm)
= T
Fasteners:
23 ft-lbs (31 Nm)
= T
Fastener:
7 ft-lbs (10 Nm)
= T
Steering Wheel Nut:
28 ft-lbs (38 Nm)
PRELIMINARY VERSION
