ELECTRONIC FUEL INJECTION
4
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

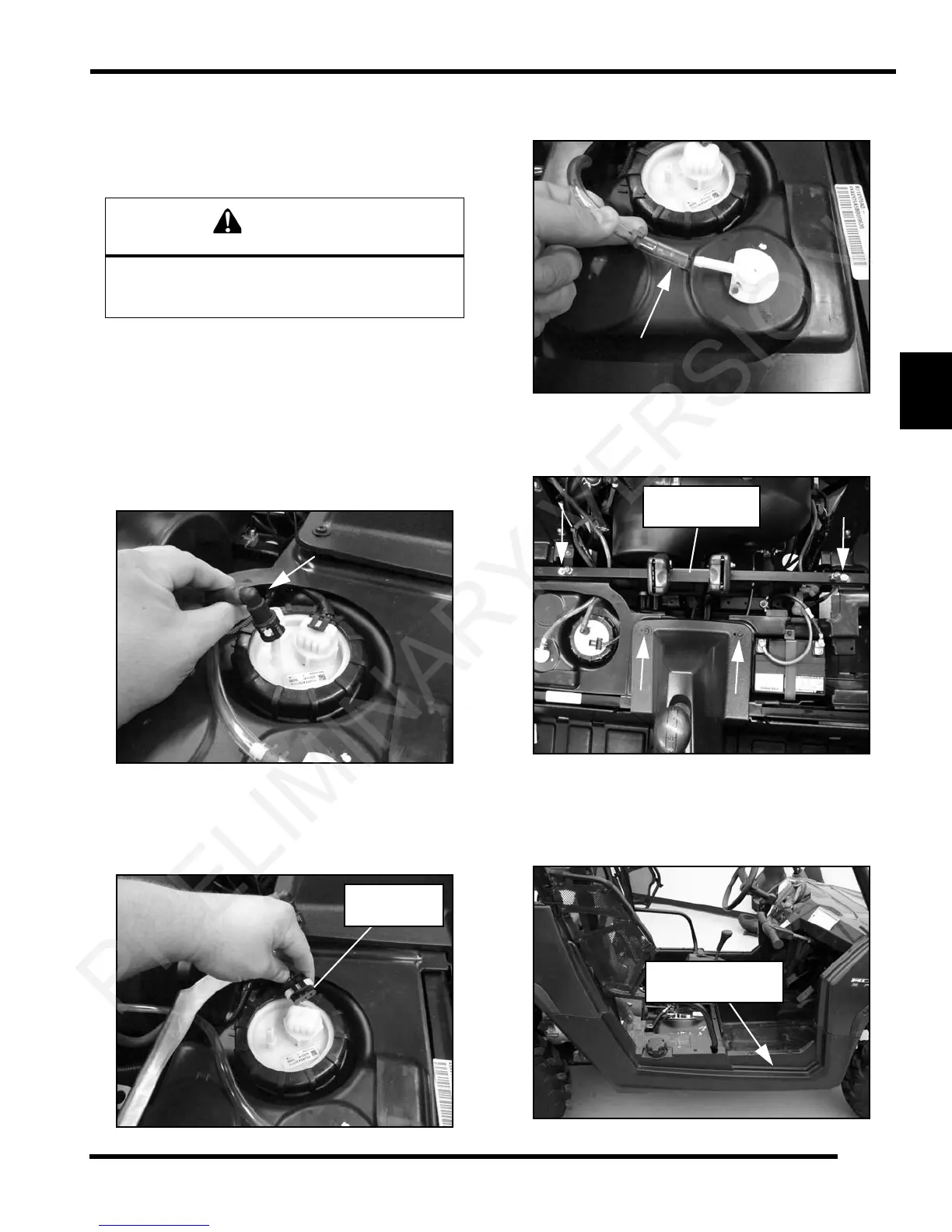

Fuel Tank Removal (RZR / RZR S)
IMPORTANT: Syphon as much fuel from the tank as
possible before attempting to remove it from the
vehicle.
1. Remove the driver and passenger seats along with
the
rear service panel.
2. Disconnect the negative batter
y cable from the battery
located under the driver’s seat.
3. While holding a shop towel over the fuel line
con
nector, disconnect the quick connect fuel line from
the fuel pump. Move the fuel line out of the way for
tank removal.
NOTE: A small amount of fuel may come out of the
f
uel line or tank. Properly drain fuel into a suitable
container.
4. Disconnect the fuel pump electrical harness.
5. Remove fuel tank vent hose clamp with a suitable
plie
rs and remove vent line from the tank vent fitting.
6. Remove rear seat base assemb
ly from the vehicle by
removing the (2) fasteners retaining the rear seat
base.
7. Remove shift knob and center console from vehicle.
8. Remove the push rivets and screws retaining the RH
r
ocker panel and remove panel from the vehicle (see
Chapter 5).
Always wear safety goggles when working with
high pressure or flammable fluids. Failure to do so
could result in serious injury or complications.
