Polaris 2013 RANGER RZR S User Manual

5.48
BODY / STEERING / SUSPENSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
FOX™ PODIUM PIGGYBACK SHOCK SERVICE

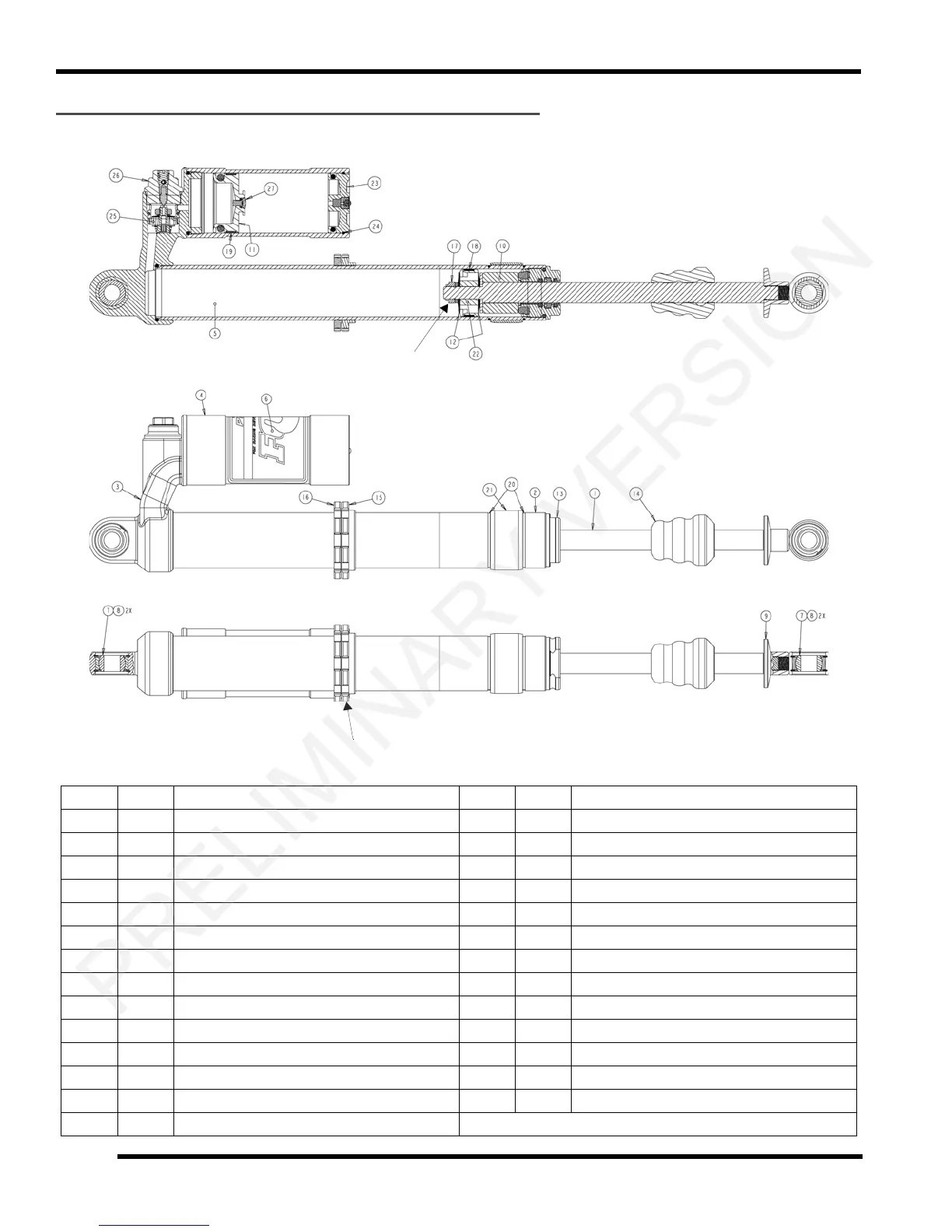

FOX™ 1.5 PODIUM ‘Piggyback’ Shock (RZR S)
Ref. Qty Description Ref. Qty Description
1. 1 Shaft 15. 1 Preload Ring
2. 1 Body 16. 1 Preload Ring
3. 1 Body Cap Asm. 17. 1 Lock Nut
4. 1 Reservoir 18. 1 Bearing, External
5. - Shock Oil (2870995) 19. 1 Bearing, External
6. 1 Decal 20. 2 Retaining Ring, Wire
7. 2 Bearing, Spherical 21. 1 Spring Guide
8. 4 Retaining Ring 22. 1 Piston, Damping
9. 1 Eyelet 23. 1 Reservoir End Cap Asm.
10. 1 Spacer 24. 1 Retaining Ring, Wire
11. 1 Piston Asm, Floating (IFP) 25. 1 Damping Adjust Asm., Piston
12. 1 Valving Asm. 26. 1 Damping Adjust Asm
., Concentric
13. 1 Bearing Asm. 27. 1 Screw Asm.
14. 1 Bumper
Preload Ring
10 ft-lbs (14 Nm)
18 ft-lbs
(24 Nm)
PRELIMINARY VERSION
