FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

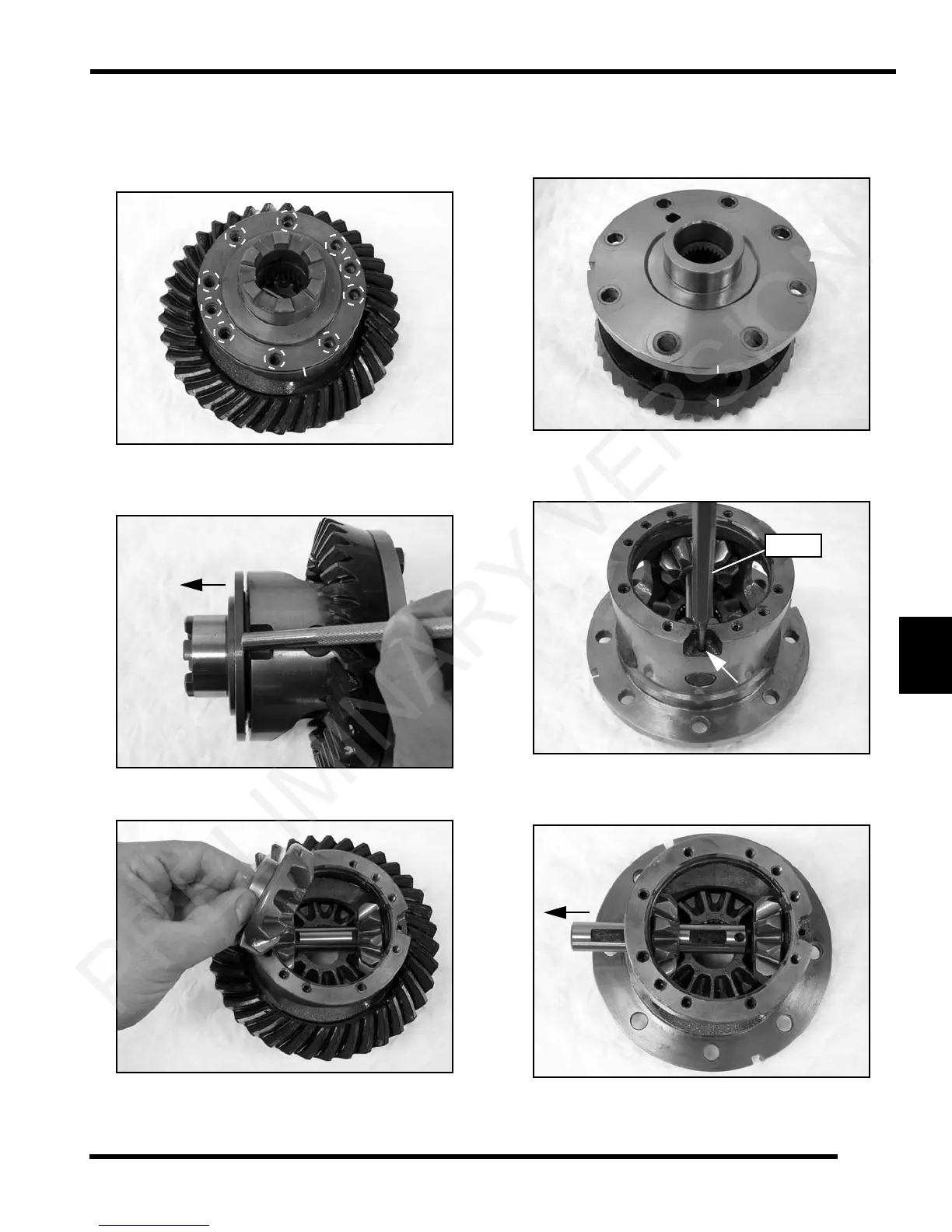

Differential Disassembly
1. Use a scribe to mark the differential cover and case.
Remove the (10) screws retaining the differential
cover.
2. Use a brass punch in the recessed area as shown to
remov
e the differential cover.
3. Remove the upper differential gear.
4. Use a scribe to mark the ring gear and differential
ca
se. Remove the (8) bolts that secure the ring gear
to the differential and allow the ring gear to slide down
and off.
5. Place the differential assembly upright. Use a roll pin
pu
nch to remove the roll pin from the differential case.
6. With the roll pin removed, slide the cross pin out and
r
emove the remaining differential gears.
Punch
PRELIMINARY VERSION
